NPM-W2 EJM7DE-MB-15M-00 Plastic par ts listing 3 Maintenance 16-1 T win tray feeder No. Comp onent name Weight ( g ) Q’ty Material c omponent contents and amount (filler, reinforcement) Insert material Replenish-sec tion…

100%1 / 572
NPM-W2 EJM7DE-MB-15M-00
16-1-4

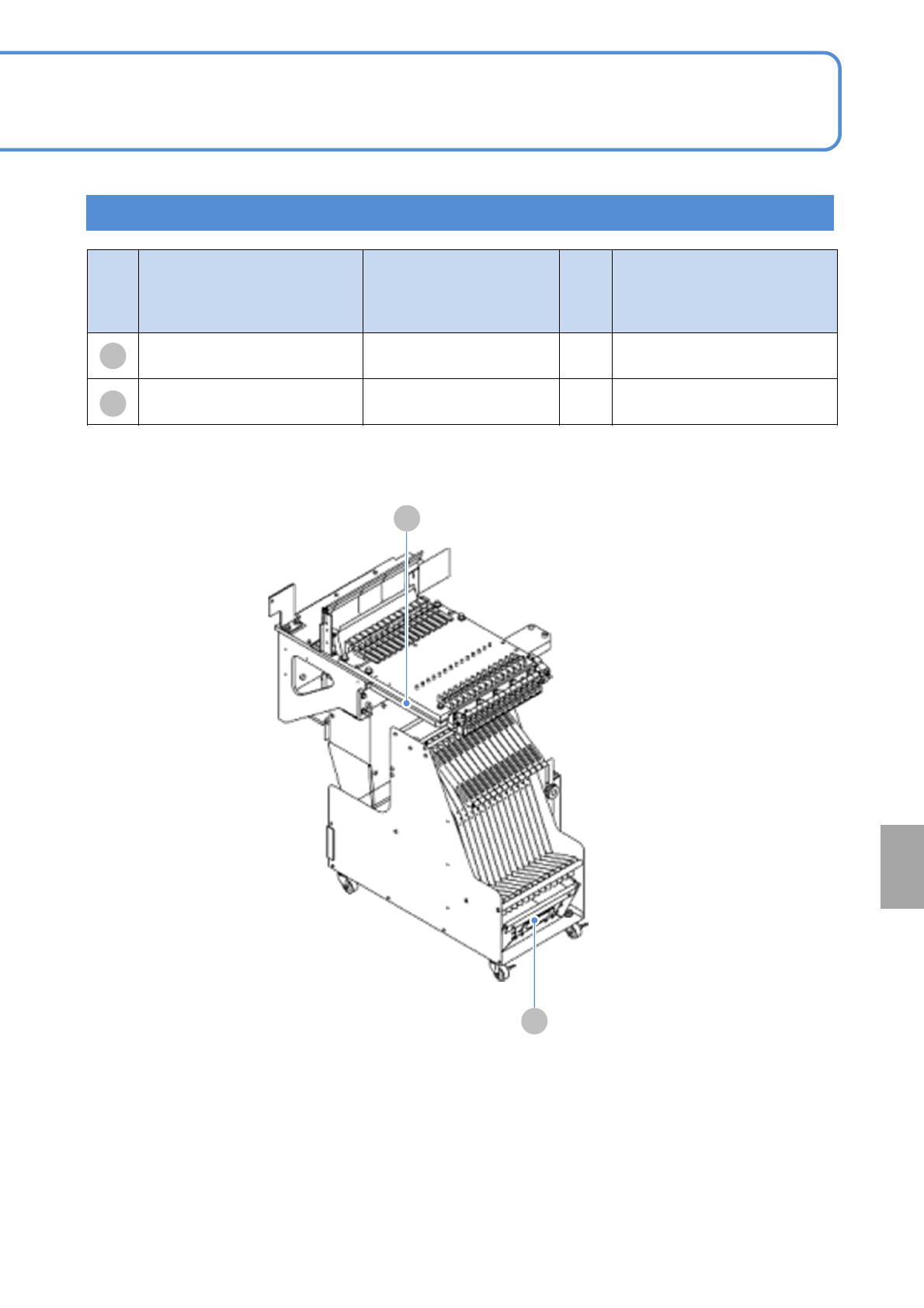

13-slot supply unit
No. Component name
Weight (g)
Q’ty
Material component contents
and amount
(filler, reinforcement)
Insert material
13-slot supply unit used-tape
box
550 2
PP
(polypropylene)
Single tray feeder guide 273 1
POM
(polyacetal)
A
A
Reference
B
B

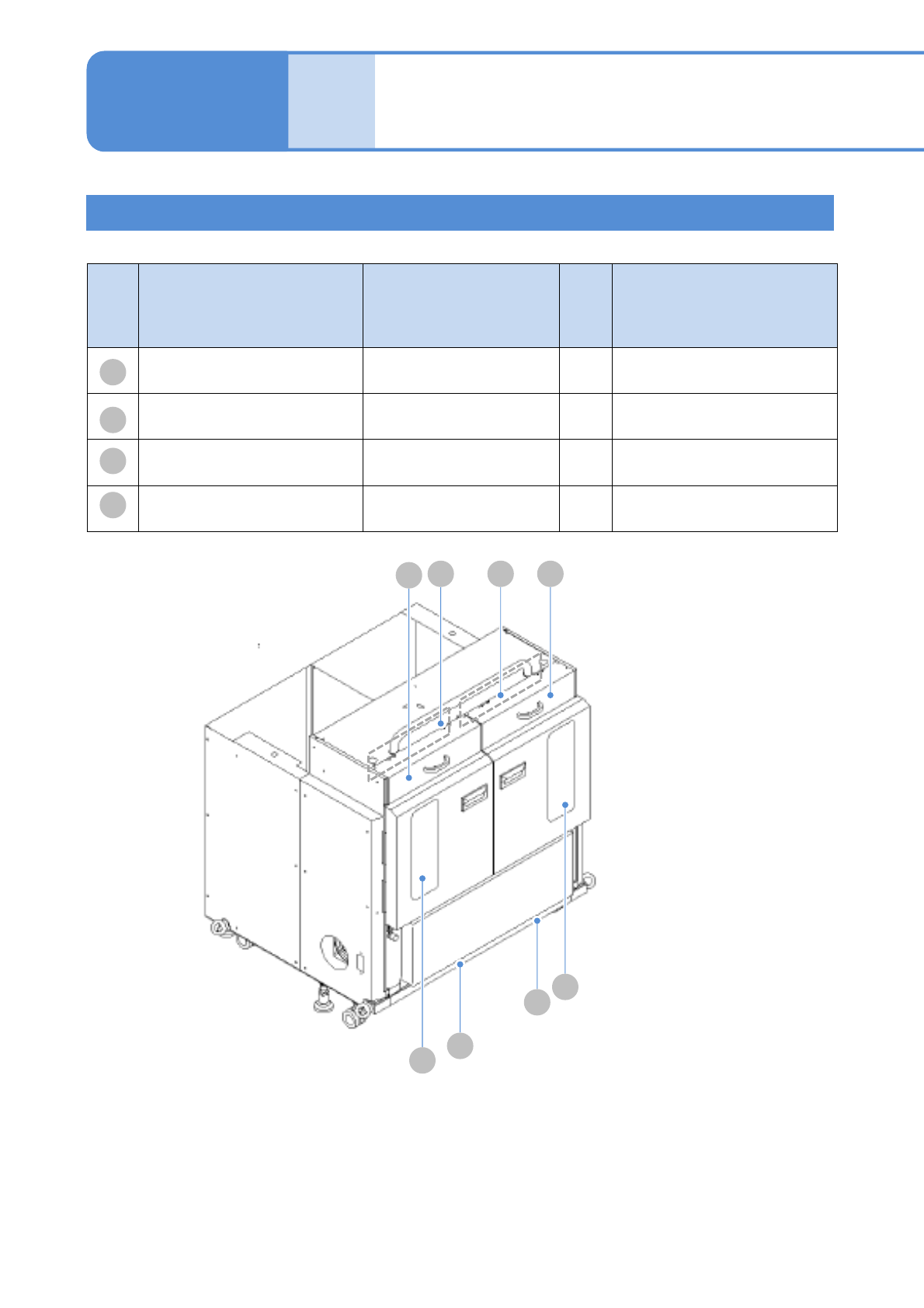

NPM-W2 EJM7DE-MB-15M-00
Plastic parts listing 3
Maintenance
16-1
Twin tray feeder
No. Component name
Weight (g)
Q’ty
Material component contents
and amount
(filler, reinforcement)
Insert material
Replenish-section door 442 2
PC
(polycarbonate)
Inside plate of Replenish-
section
101 2
PC
(polycarbonate)
Magazine door window 139 2
PC
(polycarbonate)
Refuse box 300 2
PP
(polypropylene)
A
B
C
16-1-5
A
D
A
C
D
C
BB
D
NPM-W2 EJM7DE-MB-15M-00
Single tray feeder
16-1-6
Reference
No. Component name
Weight (g)
Q’ty
Material component contents
and amount
(filler, reinforcement)
Insert material
Replenish-section door 424 1
PC
(polycarbonate)
Inside plate of Replenish-
section
112 1
PC
(polycarbonate)
Magazine door window 207 1
PC
(polycarbonate)
Refuse box 300 1
PP
(polypropylene)
A
B
C
D
A
D
C
B
