NPM-W2 EJM7DE-MB-15M-00 Plastic par ts listing 4 Maintenance 16-1 Extension conveyor No. Comp onent name Weight ( g ) Q’ty Material c omponent contents and amount (filler, reinforcement) Insert material Window on the ext…

100%1 / 572
NPM-W2 EJM7DE-MB-15M-00

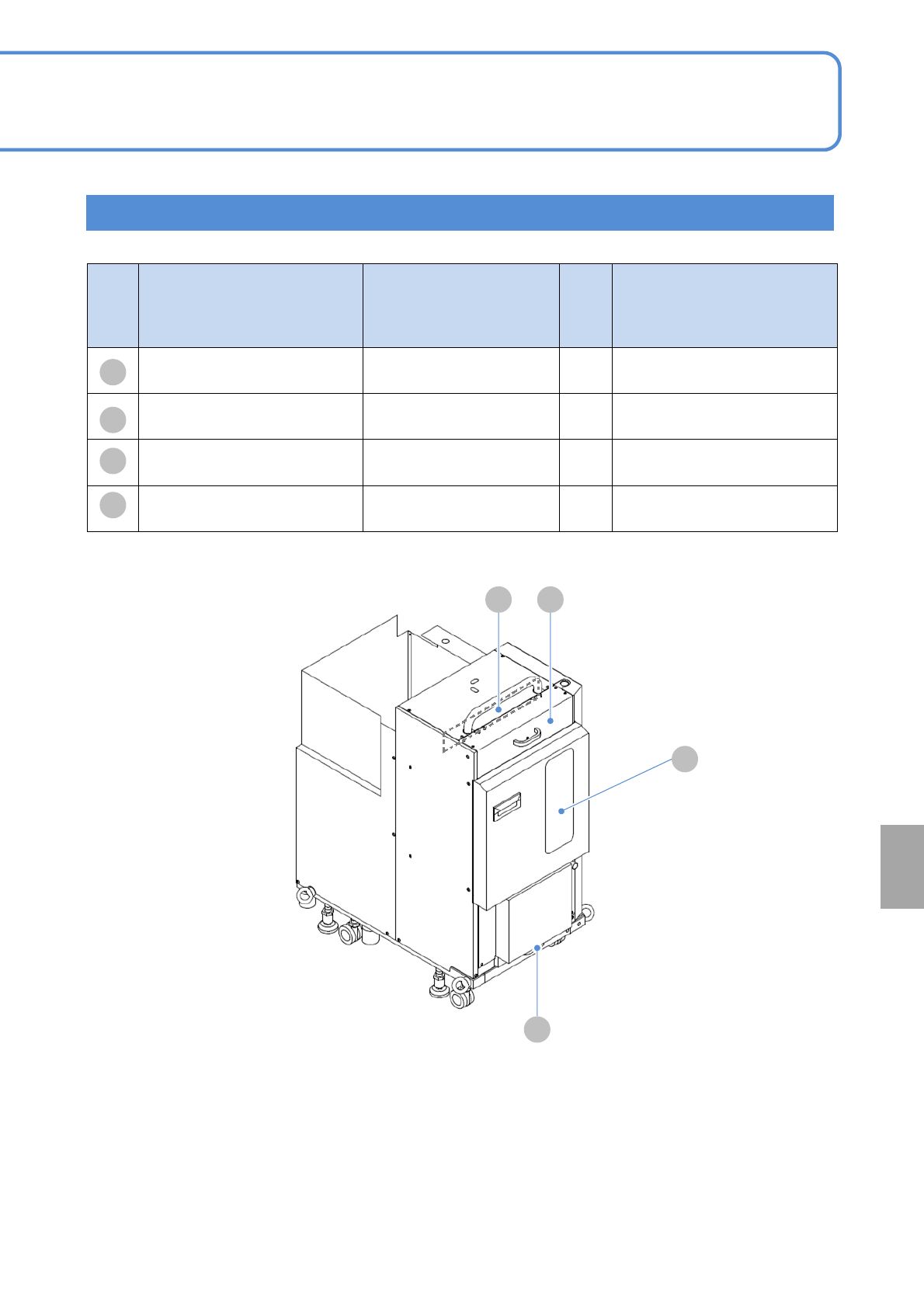

Single tray feeder
16-1-6
Reference
No. Component name
Weight (g)
Q’ty
Material component contents
and amount
(filler, reinforcement)
Insert material
Replenish-section door 424 1
PC
(polycarbonate)
Inside plate of Replenish-
section
112 1
PC
(polycarbonate)
Magazine door window 207 1
PC
(polycarbonate)
Refuse box 300 1
PP
(polypropylene)
A
B
C
D
A
D
C
B
NPM-W2 EJM7DE-MB-15M-00
Plastic parts listing 4
Maintenance
16-1
Extension conveyor
No. Component name
Weight (g)
Q’ty
Material component contents
and amount
(filler, reinforcement)
Insert material

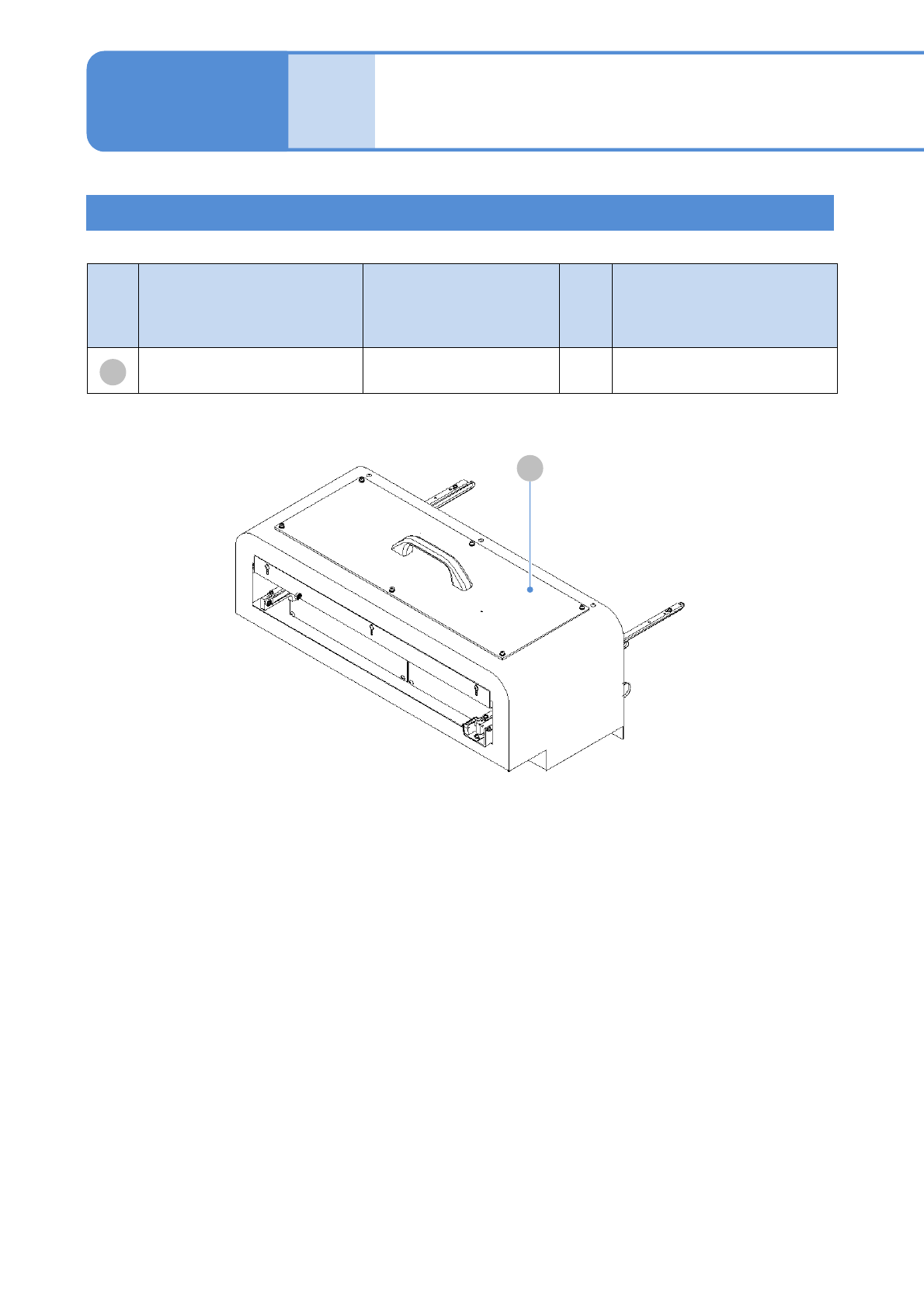

Window on the extension
conveyor
496 1
PC
(polycarbonate)
A
A
16-1-7
NPM-W2 EJM7DE-MB-15M-00
16-1-8
Reference

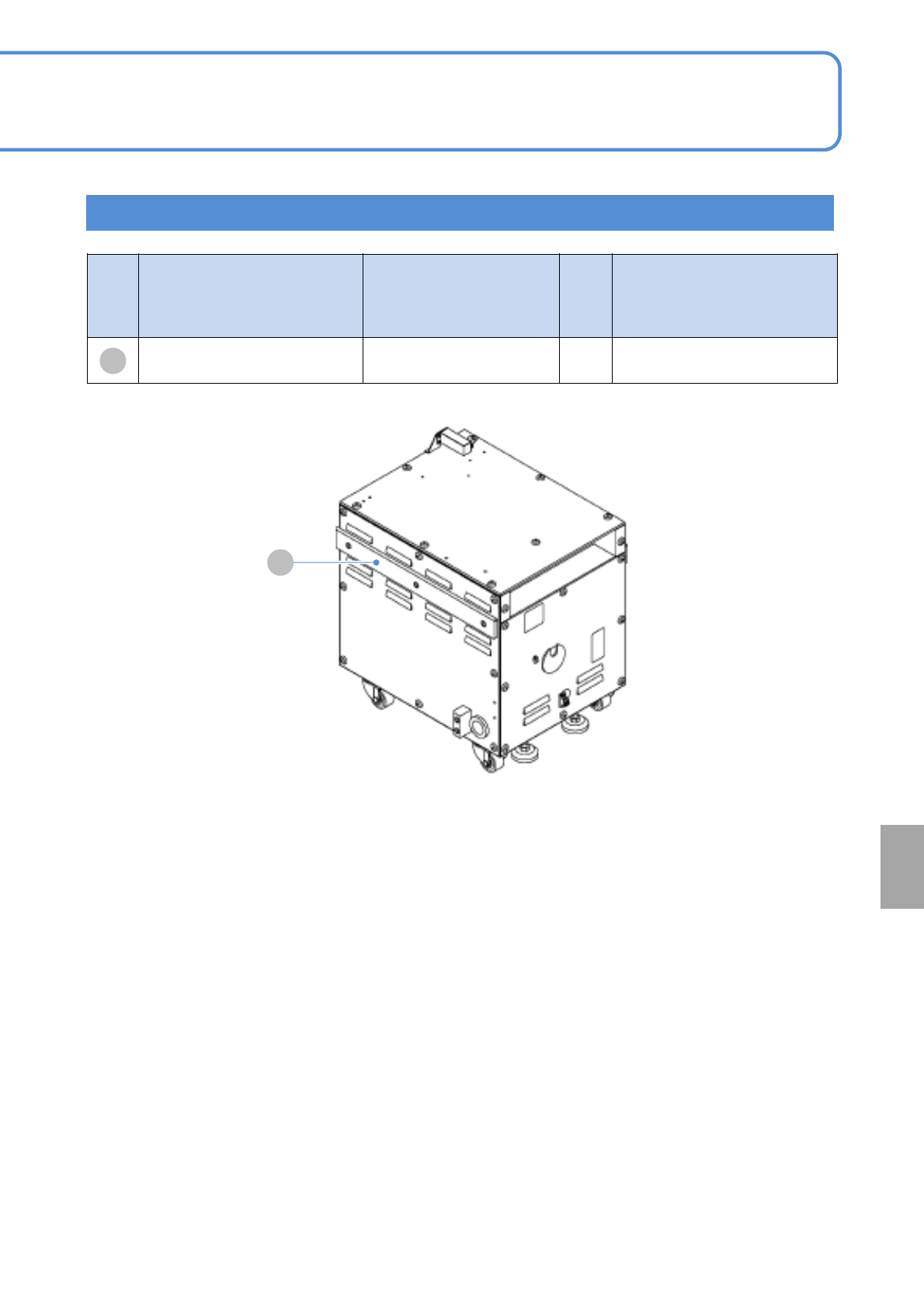

Inspection box
No. Component name
Weight (g)
Q’ty
Material component contents
and amount
(filler, reinforcement)
Insert material
Inspection box guide 360 1
POM
(polyacetal)
A
A
