NPM-W 2 EJM7DE-SF-01N-0 0 1-4 -8 Confirmation Front side Rear side ■ Laser class label affixed on the unit The following label is affixed to the machine with the height sensor installed. Height sen sor CLASS 1 LASER PROD…
NPM-W2 EJM7DE-SF-01N-00
Precautions 4
1-4-7
1-4
Handling of the height sensor
●The height sensor complies with the class 1 (IEC60825-1) level of the laser safety standard, so it is
basically safe under the normal use. Do not directly look into during maintenance or operation.
■Never look it into directly.
Item Laser specifications
Manufacturer Panasonic Factory Solutions Co., Ltd.
Model
number
N610112849AA
Wavelength 655 nm
Output 220 μW
Class Class 1
Installation
position
See P.1-4-8
Regulation IEC60825-1 2007
■Height sensor specifications
●The height sensor can be installed to the X-unit in the front and rear of the machine.
Output of laser elements is maximum of 220 μW. The sensor head does not have mechanism to stop
emission of the laser beam when disassembled. If disassembled, you may be exposed by laser radiation.
Never disassemble the sensor head.
NPM-W2 EJM7DE-SF-01N-00
1-4-8
Confirmation
Front side
Rear side

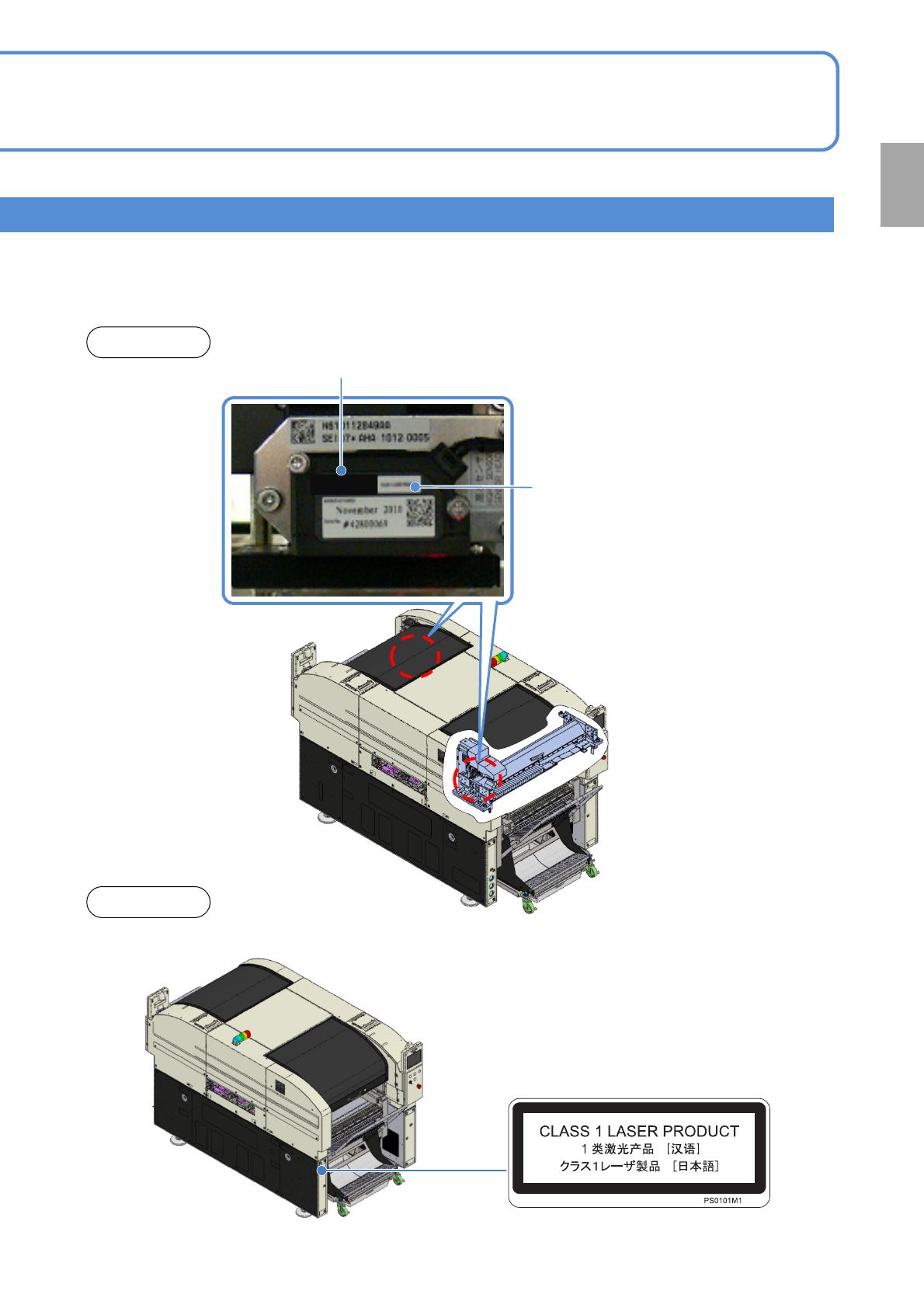

■Laser class label affixed on the unit
The following label is affixed to the machine with the height sensor installed.
Height sensor
CLASS 1 LASER PRODUCT
(Inside of the machine)
NPM-W2 EJM7DE-SF-01N-00
1-4-9
Feeder tableTape feeder

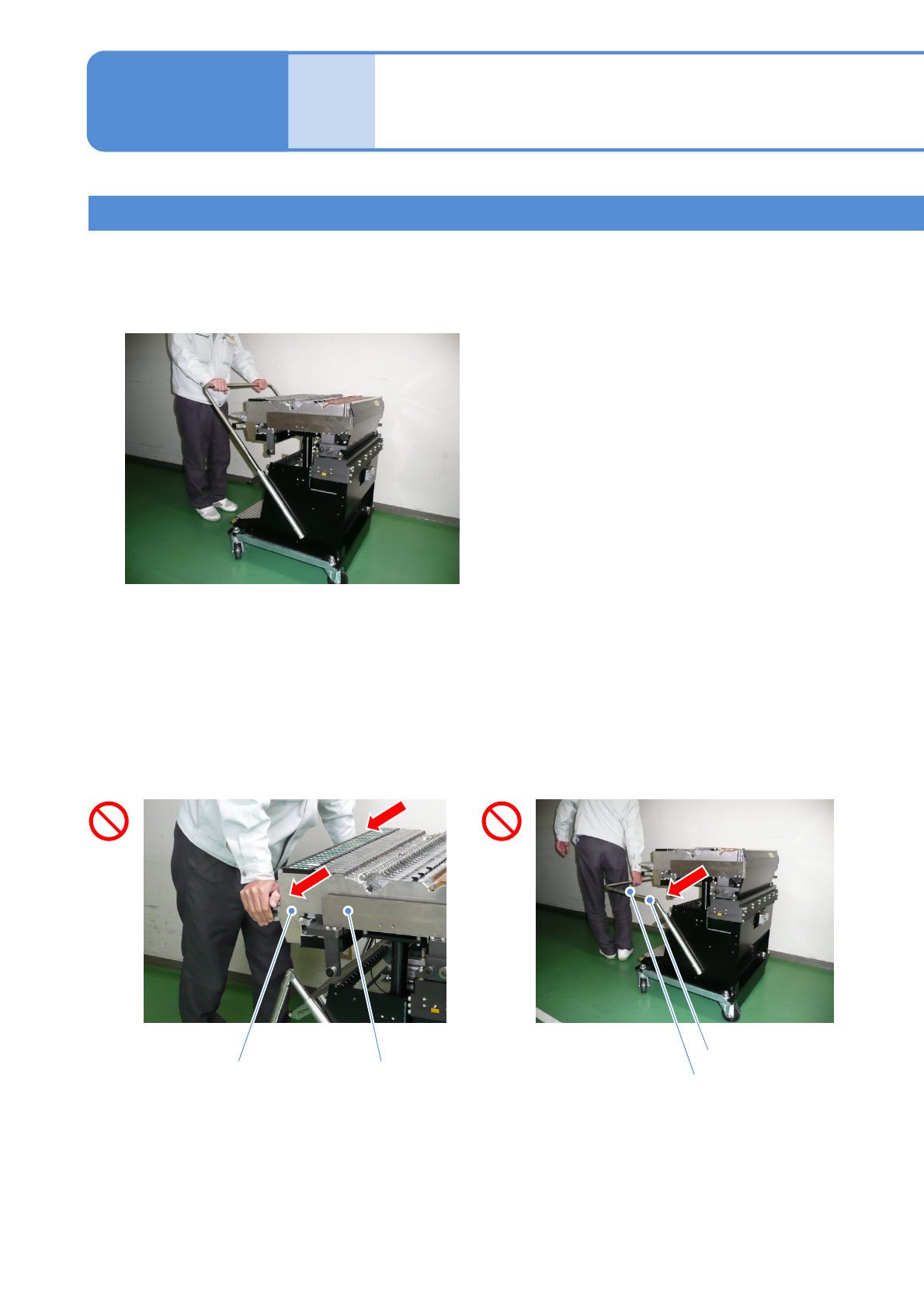

Handling of the feeder cart
■Do not hold the handles of loaded tape feeders or the feeder table when
carrying the feeder cart. Doing so can deform the feeders’ handles or
the table mounting bracket.
●Raise the handle bar and make sure that its guide pipe fits tightly into place.
●Use the dedicated handle bar when you move the feeder cart.
Handle bar
Make sure to observe the following precautions before handling the
feeder cart to ensure its safe and proper use.
Guide pipe
Precautions 5
1-4
