NPM-W2 EJM7DE-SF-01N-00
Com-
ponent
names

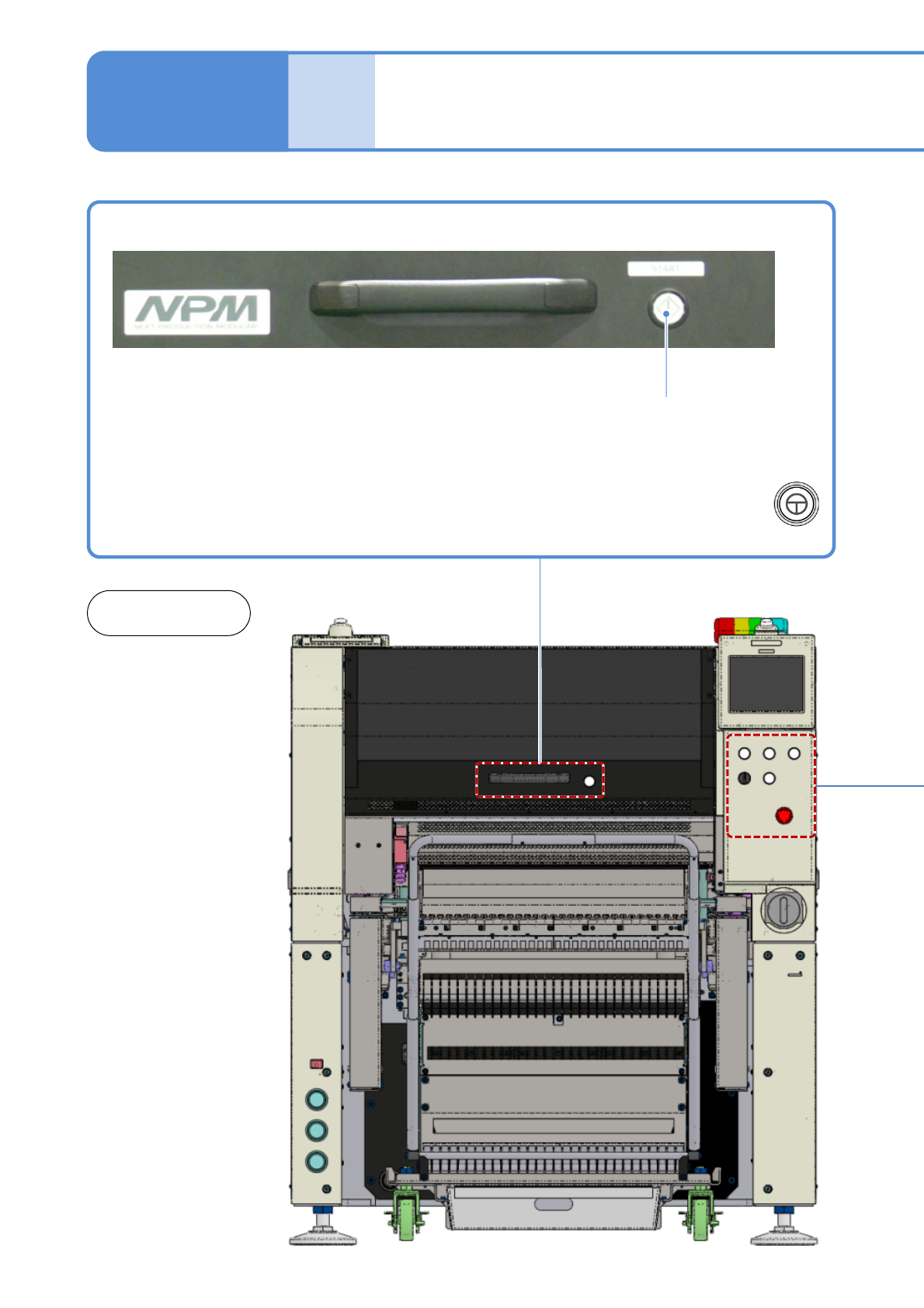

Operation switch
1-9-2-1
1-9-2
START
Starts production.
●Restarts production when in
temporary stop.
●Push the button with
at the same time
Front and
rear sides
NPM-W2 EJM7DE-SF-01N-00
1-9-2-2
Emergency
stop state
Released
state
SELECT
To enable the operation switch
in front or rear, and the
touchscreen operation.
●The light is on if it is enabled.
ENABLING
Holding down the switch,
press the touchscreen’s
operation button or the switch
to operate the machine.
(For risk prevention)
STOP
To suspend production (single
stop) or to stop operations
accompanied by action.
Emergency stop switch
Stops the machine immediately
●Turn it clockwise and return it
to the original position to
release.
(Total 2 switches in front and
rear)
OPTION
Backup used in adding
functions.
●Not in use for the standard.
EXCHANGE
To install/remove feeder carts.
●The light is on if it is
replaceable.
SERVO switch
Turns ON / OFF the motor
power supply.
（Conversion to disable
machine operation commands)
●Turns on when you start
production.
●Be sure to turn off before
placing your hands into the
moving parts of the machine.
Confirmation
NPM-W2 EJM7DE-SF-01N-00
Com-
ponent
names
Main units 1
1-9-3-1
1-9-3
PCB holder
Keeps back side of a PCB with the support blocks and pins.
Extension conveyor (single/dual)
When the machines are coupled as the purpose below, the
extension conveyors are required to be installed at the right and
left of the machine.
・PCB length of over 220 mm is wait in the upstream process.
(Install on the upstream machine)
・Safety distance of machine movable parts is ensured.
●Install first and last of the NPM-W2 in line.
Supply unit
Supplies components to be placed.
●The supply types of the rear side varies depending on machine specifications.
Single tray feeder
(Rear side)
Twin tray feeder
(Rear side)
13-slot feeder
(Rear side)
Feeder cart
(Front and rear sides)
Loads, clamps or unloads PCBs.
PCB conveyor
(dual)
(single)
(dual)
(single)
