NPM-W 2 EJM7DE-SF-01N-0 0 Com- ponent names Main units 2 1-9-3 -3 1-9-3 Saf ety co ver (option) This cover is for ensuring safety by stopp ing up the opening in the machine when the cart or the tray feeder is unnecessary…

100%1 / 572
NPM-W2 EJM7DE-SF-01N-00
1-9-3-2
Confirmation
Recognizes
components.
Y-axis
drive unit
Drives the placement
head Y-direction.
Placement
head
The nozzles are picked up
components at the component
supply position and components are
mounted on a PCB.
●Light weight 16-/12-/8-/3-nozzle
head is available.
X-axis
drive unit
Drives the placement
head X direction.
Nozzle changer unit
Stores or exchanges nozzles.
Light weight 16-/12-
nozzle head
8-nozzle head
3-nozzle head
Multi-
recognition
camera unit
Feeder cover
Ensures safety for hazardous
source inside of the machine
when the machine starts up.
NPM-W2 EJM7DE-SF-01N-00
Com-
ponent
names
Main units 2

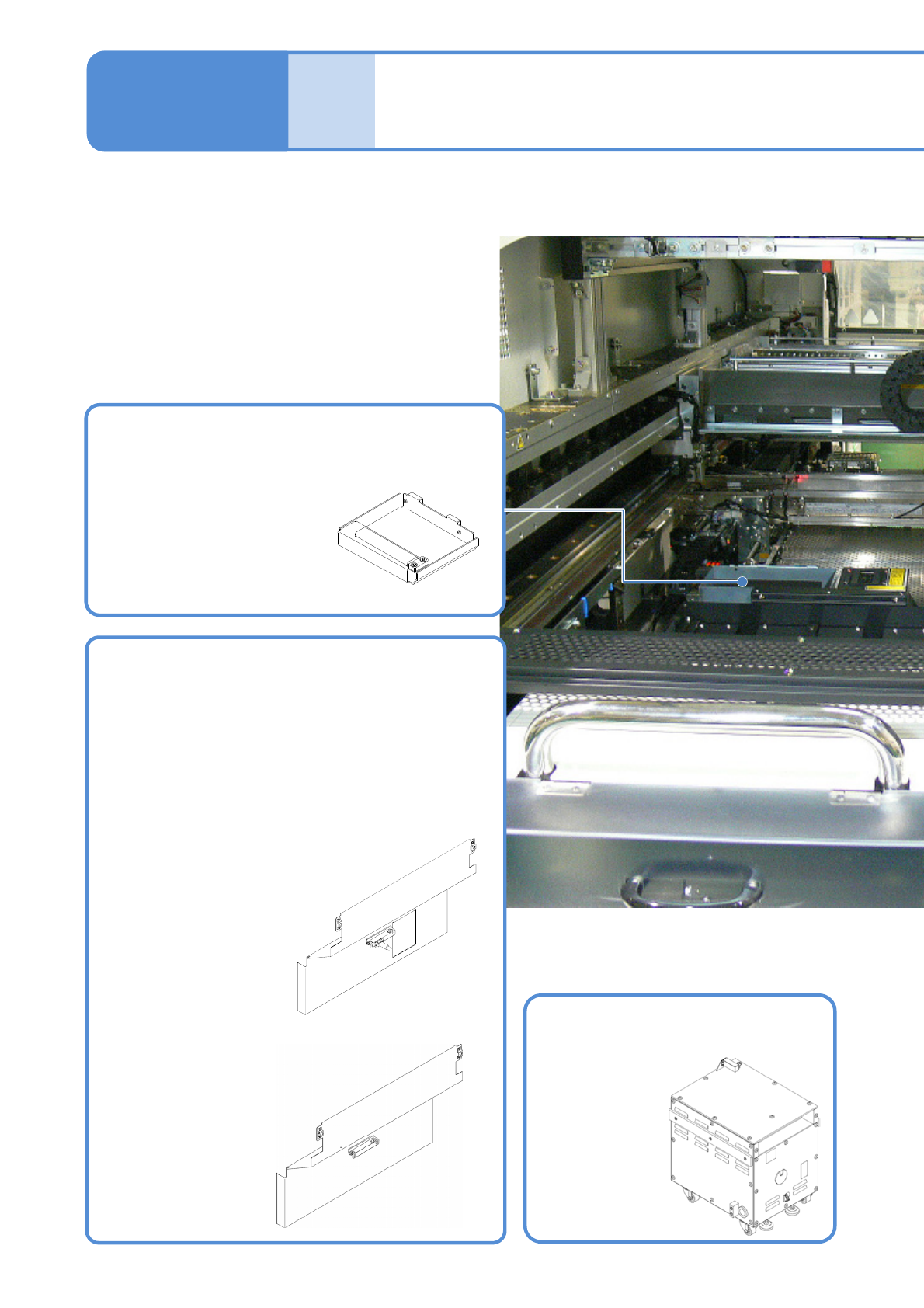

1-9-3-3
1-9-3
Safety cover (option)
This cover is for ensuring safety by stopping up the
opening in the
machine when the cart or the tray feeder is
unnecessary.
●The safety cover for a rear cover has two types; a
normal safety cover and a safety cover for tray
feeder specification.
Wiping off station
(option)
Wipes the excess of adhesive
off for the tip of the
dispensing nozzle for the stain
prevention to the inside of
the main unit.
Reads, processes,
and recognizes the
image of the
inspection-target
PCB captured by
the inspection head
and outputs the
inspection result.
Inspection box
(option)
■Front side
■Rear side
●Dispensing head
specification,
●2D inspection head
specification)
●Non-head specification
●Dispensing head
specification,
●Non-head specification
NPM-W2 EJM7DE-SF-01N-00
1-9-3-4
Confirmation
Dispensing head (option)
Applies adhesive to PCBs with high
accuracy at the high speed.
2D inspection head
(option)
Captures the condition of the
inspection-target PCB, and outputs
the captured image to the inspection
box.
●There are two types: the one with
pixel resolutions of 18μm (type A)
and the other with 9 μm (type B).
Dummy dispensing unit
(option)
Rolls up the dummy tape during dummy dispensing.
Calibration jig for the 2D
inspection 2D
(option)
An optical reference plate used
in calibration of the 2D
inspection head.
