NPM-W 2 EJM7DE-MB-02 M-00 Confirming a cycle and details of work, history information 2-1-1 -2 Overview When 80 % of the maintenance cycle is reached, a flashing yellow-colored message is displayed on the [Maintenance me…

100%1 / 572
NPM-W2 EJM7DE-MB-02M-00
Over-
view

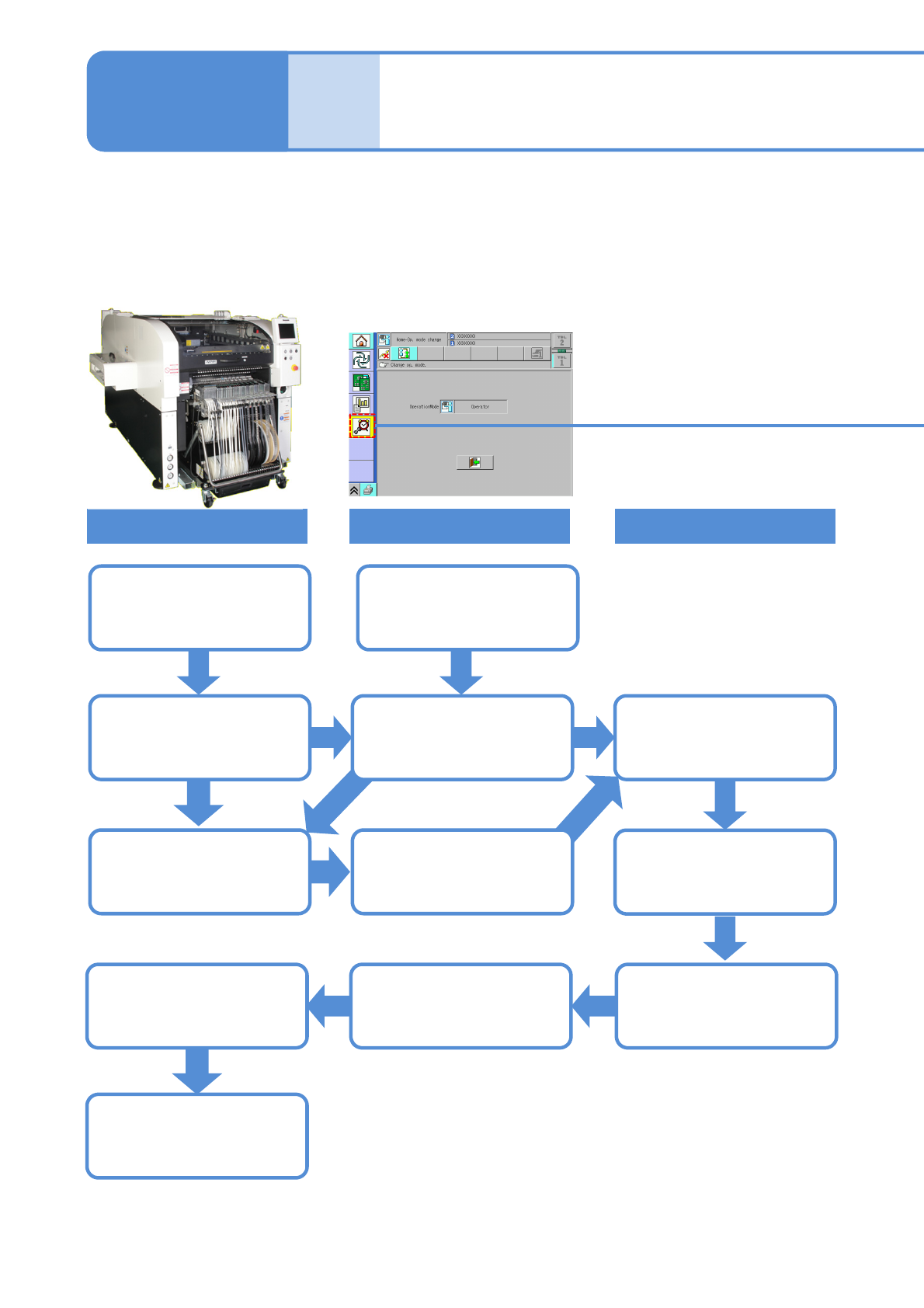

Maintenance overview
2-1-1-1
Maintenance
2-1-1
Operating time is
accumulated
Screen (Alarm)
Work
Operating time since
the last maintenance is
accumulated
Normal display
80 % of the
maintenance
cycle has elapsed…
A flashing yellow
colored message is
displayed
Confirmation of task
details
A flashing red colored
message is displayed
Full maintenance cycle
has elapsed and
maintenance is due
Update historyNormal display
The next maintenance
timing is automatically
calculated
Perform maintenance
●This equipment notifies you of the time for periodic maintenance, automatically calculating it from operating
time.
●When you notify the machine that a particular maintenance task is complete, the task completion is saved in
the history. (This information serves as the new reference to calculate the next maintenance timing.)
Equipment
NPM-W2 EJM7DE-MB-02M-00

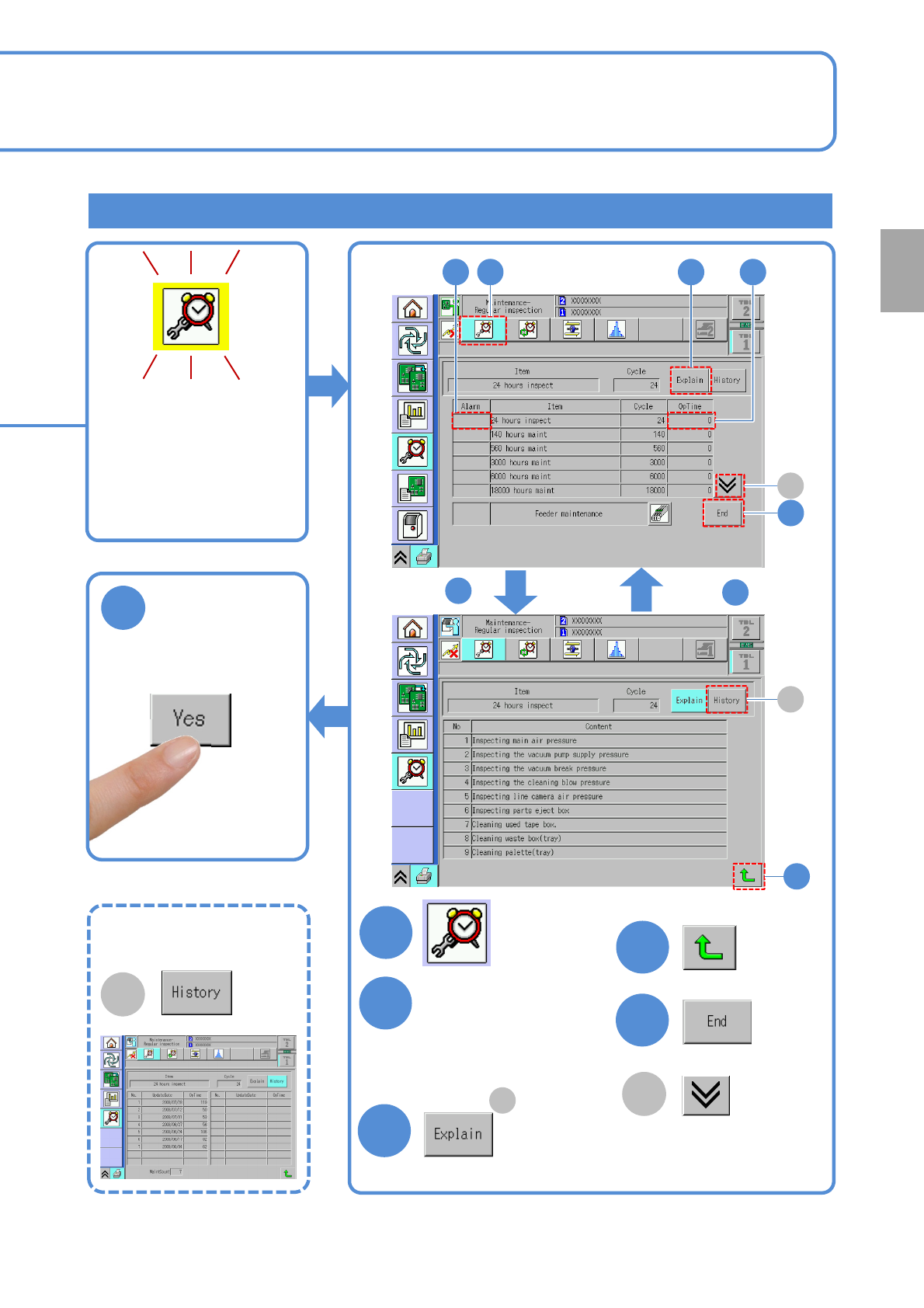

Confirming a cycle and details of work, history information
2-1-1-2
Overview
When 80 % of the
maintenance cycle is
reached, a flashing
yellow-colored message
is displayed on the
[Maintenance menu]
screen.
1
4
3
4
5
2
Choose an item that
warning is shown in
the Alarm field.
(Press the ‘OpTime’)
Confirm task details
After maintenance
6
Confirm the message
■To view
maintenance history
B
After
After
3
4
3
5
2 1 2
A
B
A
●Change to another
screen
A
Change to the limited-life
parts screen
NPM-W2 EJM7DE-MB-02M-00
Periodic inspection
items by cycle 1
Every-24-hours (daily) inspection items
2-1-2-1
Maintenance
2-1-2
The lists below show check and grease locations/information organized by cycle.
Indications in the Power field mean as follows: “ON” = inspect with Power ON, “OFF” = inspect with Power
OFF, and “-” = inspect with Power ON or OFF.
■ Types in common
No. Unit Check and greasing location Power
Check and
greasing points
Time
[min]
Ref.
1 Main body
Main air pressure
(Pressure gauge)
ON
Air pressure
check
(Before operation)
3 4-1-1
Vacuum pump supply pressure
(Pressure gauge)
Vacuum break pressure
(Pressure gauge)
Cleaning blow pressure
(Pressure gauge)
Components-ejection box -
Cleaning
(End of operation)
3 4-2-1
1 4-2-2
2
Feeder cart
(per cart)
Inside of the used-tape box -
Inspection time (min) = 6 + 1 x (the number of feeder carts)
■ Dispensing head (option)
No. Unit Check and greasing location Power
Check and
greasing points
Time
[min]
Ref.
1 Dispensing head Joint ON
Cleaning
(End of operation)
30 4-2-5
2 Screw unit
Holder inside ON
Cleaning
(End of operation)
Screw ON
Cleaning
(End of operation)
Nozzle tip ON
Cleaning
(End of operation)
Stopper pin ON
Cleaning and
check
(End of operation)
3
Dummy dispensing
unit
Dummy dispensing tape ON
Check (Before
operation)
1 4-1-2
4 Wiping station Cushion (wiping station) ON
Cleaning
(End of operation)
3 4-2-4
Inspection time (min) = 34 x (the number of heads)
