SIPLACE 2 External power supply unit for component trolleys from the SIPLACE D1/D2/D3/HF series 11/2006 Edition 25 2.6 Preventive maintenance 2.6.1 Compressed air filter If the flow rate decreases severely, replace the m…

2 External power supply unit for component trolleys from the SIPLACE D1/D2/D3/HF series SIPLACE

11/2006 Edition

2.5.2 Connecting the component trolley D3 / HF series

: Connect the component trolley D3 / HF series to the power supply unit using the power cable

provided 03050810-01.

: Then lock both the multifunction connector on the power supply unit and the connector on the

component trolley using the locking clip.

Optional: If a set-up station PC is used, connect the CAN bus cable 03040465-01 (not supplied

as standard) to the CAN bus interface on the back of the power supply unit.

: Attach the quick-connect coupling provided correctly to the compressed air line.

: Attach the compressed air line to the compressed air connection.

: First switch the power switch off and then plug the EU mains cable 00308240-01 or the US

mains cable 03011615-01 into the combination mains connector.

DANGER

The air outlet opening of the integral fan and the ventilation slots on the side of the unit must not

be covered.

This could cause overheating, which would damage the power supply. 2

DANGER

Make sure that no one is working on the connected component trolley when you switch on the

power supply. 2

: Switch the power switch on.

On the front of the device there is a green signal lamp. The power supply unit is working correctly

when this lights up. 2

: Release the adjusting cap of the pressure reducer by lifting the cap and then turning it until the

manometer reads an output pressure of 2.5 bar (=250 kPa).

Turn the cap clockwise to increase the output pressure. 2

: After making the setting, press the cap down again to lock it.

SIPLACE 2 External power supply unit for component trolleys from the SIPLACE D1/D2/D3/HF series

11/2006 Edition

2.6 Preventive maintenance

2.6.1 Compressed air filter

If the flow rate decreases severely, replace the microfilter (see picture below). 2

Release the quick-release coupling and detach it from the compressed air connection. Then un-

screw the condensate tank from the pressure reducer. When you turn down on the separating cap,

you can remove the microfilter. 2

Reverse the above sequence to insert the new microfilter. 2

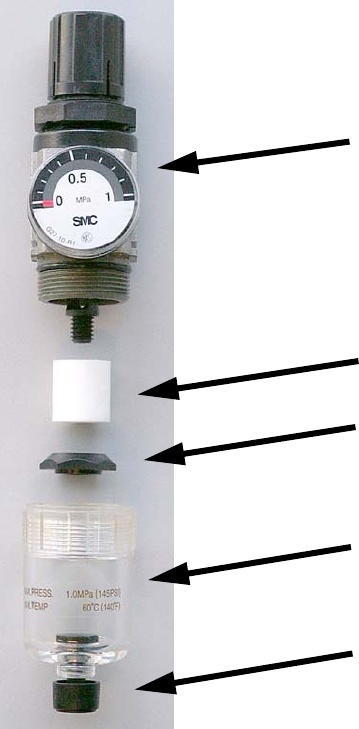

Fig. 6 Compressed air filter unit

2.6.2 Condensate

The transparent condensate tank (see picture above) must be emptied before the condensate

level reaches the separating cap. To do this, turn the manual condensate drain knob to the left

(towards 0 <--). 2

Pressure-reducing valve

Microfilter

Separating cap

Knob for manually draining the condensate

Condensate tank

2 External power supply unit for component trolleys from the SIPLACE D1/D2/D3/HF series SIPLACE

11/2006 Edition

2.6.3 Changing the fuse

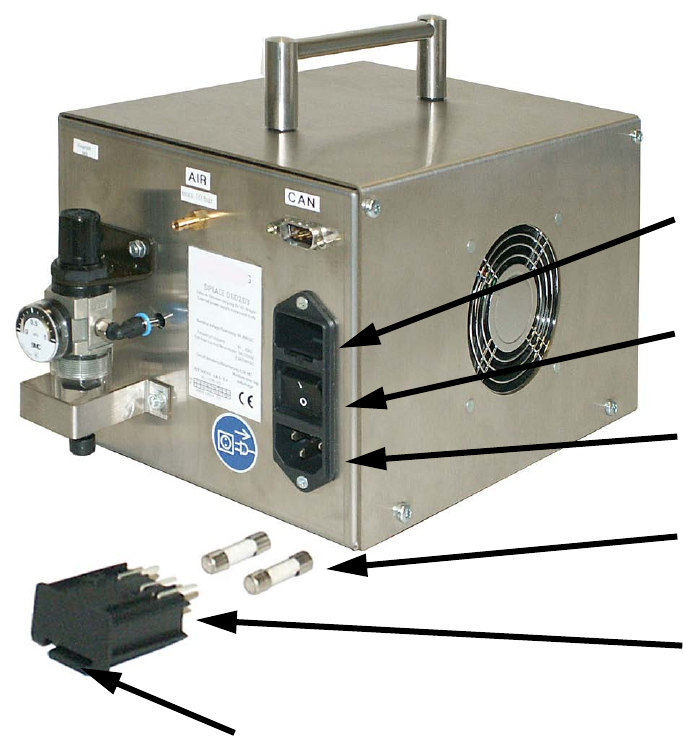

Fig. 7 Power switch with fuses

: Switch the power switch to OFF and make sure that the power plug is not plugged into the de-

vice connector.

: Release the snap closure of the fuse holder by pushing it up and pull the fuse holder and fuses

out of the drawer.

: Remove and check the two fuses and replace them if necessary.

: Only use type 5x20 mm / medium time-lag 6.3 Amp fuses (e.g. 03048168-01).

: Push the fuse holder with the two fuses back into the drawer until the snap closure latches.

Fuse holder

drawer

Power switch

Device plug

Fuses

Fuse holder

Snap closure
