Edition 2.0 NXT/NXT2 Repair Training Text
H12HS(Q) Head
FK-9F98-61-0E
14-1
FUJI MACHINE MFG. CO., LTD.
Chapter14.
Camera position adjustment, current value (grayscale value)
adjustment, and area check

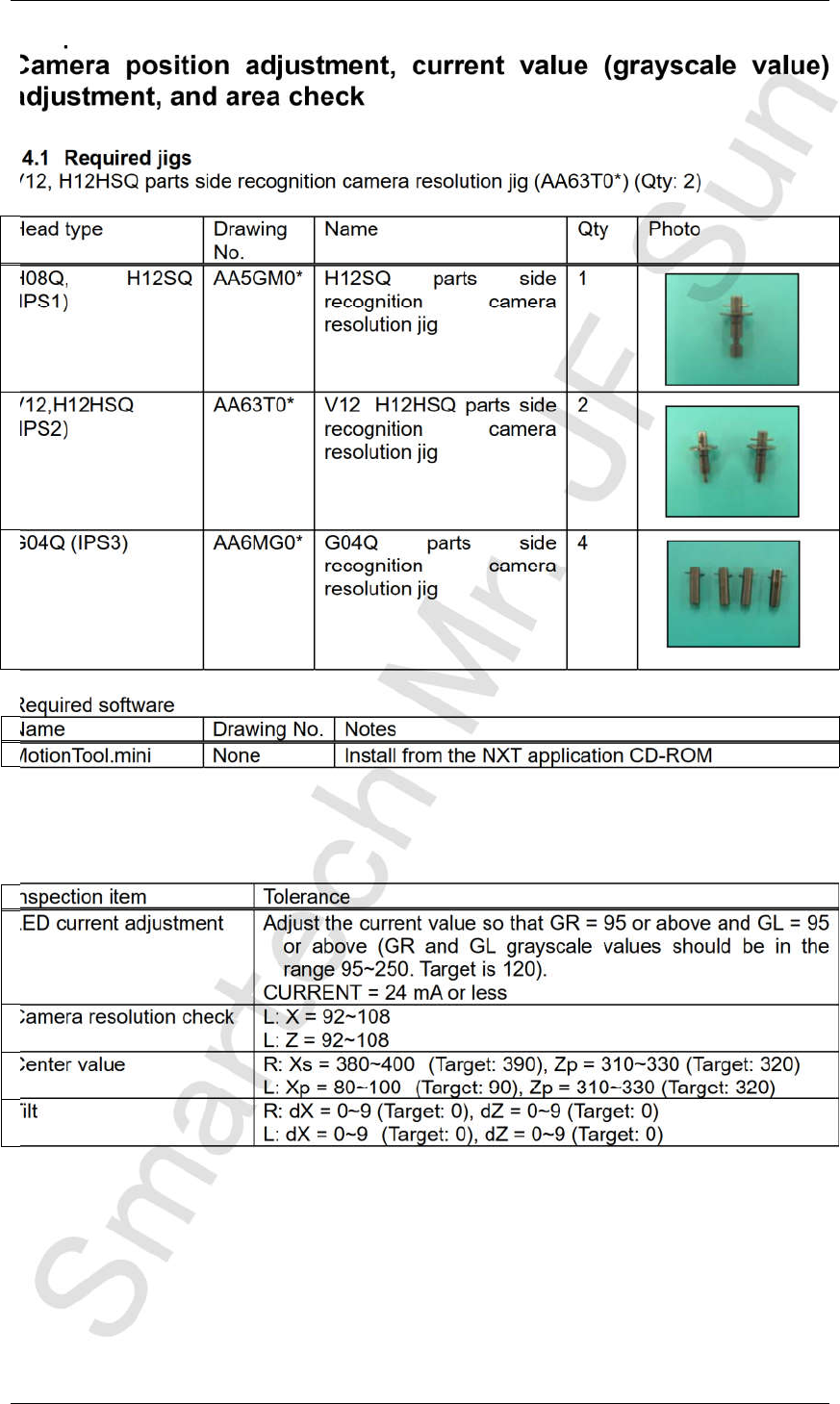

14.1 Required jigs
V12, H12HSQ parts side recognition camera resolution jig (AA63T0*) (Qty: 2)
Head type Drawing
No.
Name Qty Photo
H08Q, H12SQ
(IPS1)
AA5GM0* H12SQ parts side
recognition camera
resolution jig
1
V12,H12HSQ
(IPS2)
AA63T0* V12 H12HSQ parts side
recognition camera
resolution jig
2
G04Q (IPS3) AA6MG0* G04Q parts side
recognition camera
resolution jig
4
Required software
Name Drawing No. Notes
MotionTool.mini None Install from the NXT application CD-ROM
Inspection item Tolerance
LED current adjustment
Adjust the current value so that GR = 95 or above and GL = 95
or above (GR and GL grayscale values should be in the
range 95~250. Target is 120).
CURRENT = 24 mA or less
Camera resolution check
L: X = 92~108
L: Z = 92~108
Center value R: Xs = 380~400 (Target: 390), Zp = 310~330 (Target: 320)
L: Xp = 80~100 (Target: 90), Zp = 310~330 (Target: 320)
Tilt R: dX = 0~9 (Target: 0), dZ = 0~9 (Target: 0)
L: dX = 0~9 (Target: 0), dZ = 0~9 (Target: 0)
CONFIDENTIAL
Edition 2.0 NXT/NXT2 Repair Training Text
H12HS(Q) Head
FK-9F98-61-0E
14-2
FUJI MACHINE MFG. CO., LTD.

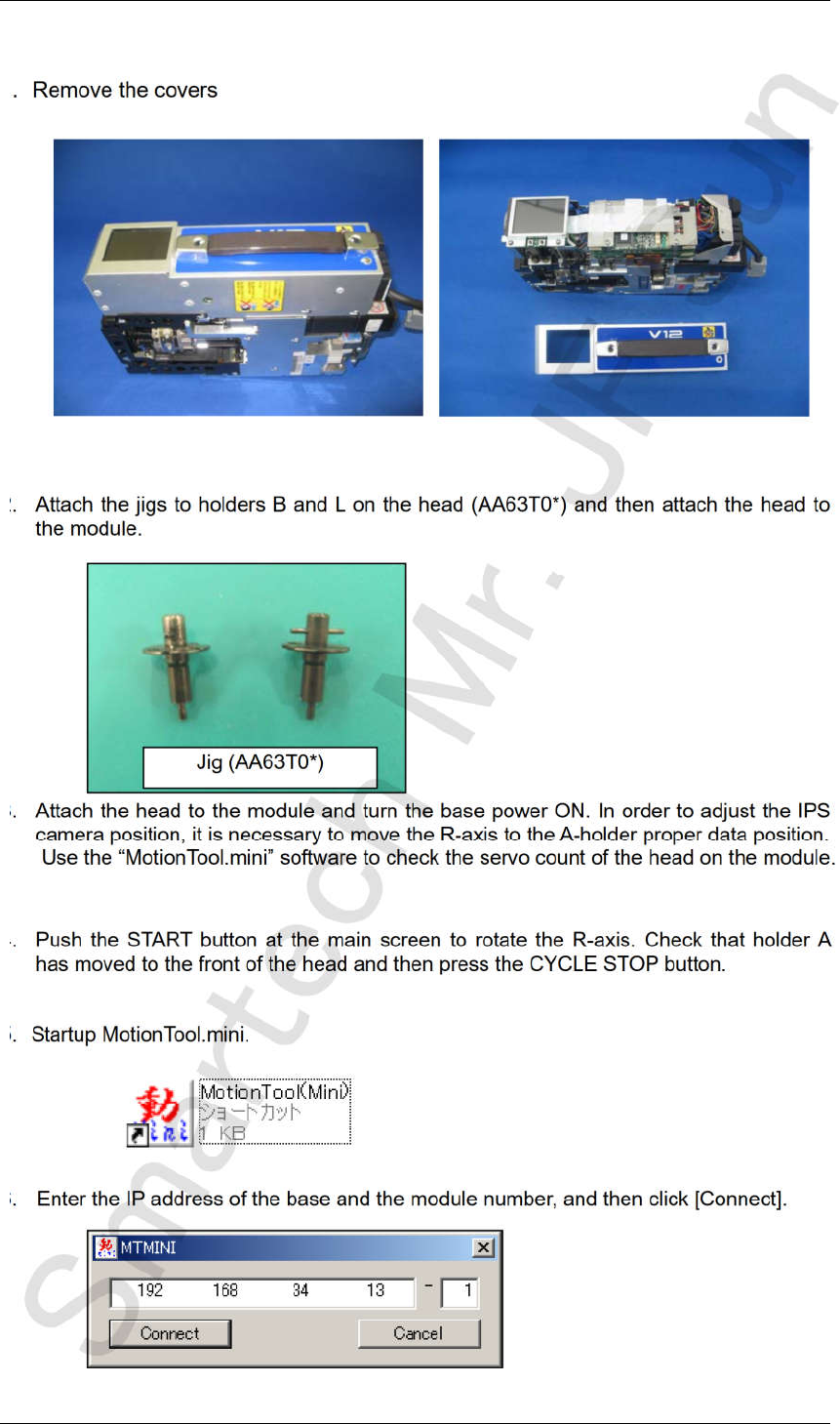

14.2 Preparation on the module
1. Remove the covers
2. Attach the jigs to holders B and L on the head (AA63T0*) and then attach the head to
the module.
3. Attach the head to the module and turn the base power ON. In order to adjust the IPS
camera position, it is necessary to move the R-axis to the A-holder proper data position.
Use the “MotionTool.mini” software to check the servo count of the head on the module.
4. Push the START button at the main screen to rotate the R-axis. Check that holder A
has moved to the front of the head and then press the CYCLE STOP button.
5. Startup MotionTool.mini.
6. Enter the IP address of the base and the module number, and then click [Connect].
Jig (AA63T0*)
