Edition 2.0 NXT/NXT2 Repair Training Text
H12HS(Q) Head
FK-9F98-61-0E
14-10
FUJI MACHINE MFG. CO., LTD.

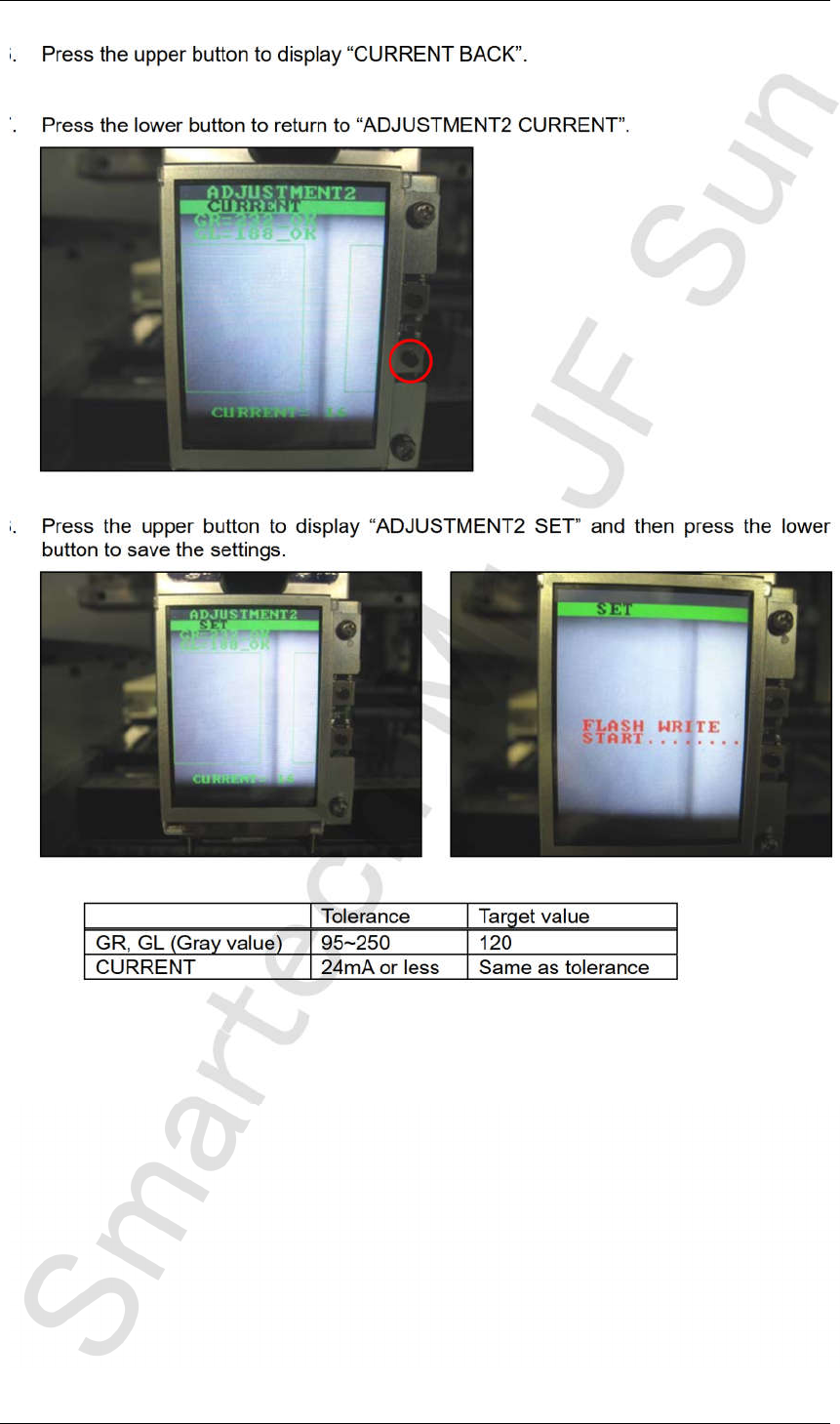

6. Press the upper button to display “CURRENT BACK”.
7. Press the lower button to return to “ADJUSTMENT2 CURRENT”.
8. Press the upper button to display “ADJUSTMENT2 SET” and then press the lower
button to save the settings.
Tolerance Target value
GR, GL (Gray value) 95~250 120
CURRENT 24mA or less Same as tolerance
CONFIDENTIAL
Edition 2.0 NXT/NXT2 Repair Training Text
H12HS(Q) Head
FK-9F98-61-0E
14-11
FUJI MACHINE MFG. CO., LTD.
14.7 Checking the field of vision
External light can affect the results, so be sure to perform the procedure in a shaded area.
1. Continuing from the procedure above, press the upper button to display
“ADJUSTMENT 2 ADJUSTMENT 3”.
2. Press the lower button to display “ADJUSTMENT 3 CHECK”.
3. Block one of the glasses with some paper etc., and then press the lower button. (In the
example below, the right-hand glass as viewed from the front of the machine is
blocked).
CONFIDENTIAL
Edition 2.0 NXT/NXT2 Repair Training Text
H12HS(Q) Head
FK-9F98-61-0E
14-12
FUJI MACHINE MFG. CO., LTD.
Check that “EDGE2_NG, EDGE3_OK” displays. Also check that S2 = 100 %, S3 = 0 %
displays.
4. Block the other glass with some paper and then press the lower button. (In the example
below the left-hand glass as viewed from the front of the machine is blocked).
Check that “EDGE2_OK, EDGE3_NG” displays. Also, check that S2 = 0 %, S3 = 100 %
displays.
5. Press the upper and lower buttons simultaneously to reverse the LCD contrast, and
then check that there are no white areas within the green rectangles. If there are white
areas within the green rectangles, it is necessary to readjust the position of the camera. If
the camera position is readjusted, it is necessary to check the resolution, center values
and tilt.
