Page SAMSUNG TECHWIN 106 SLM120/110 E lectric Device Ass’y (1/2) 10 6 1 17 13 14 9 5 5 8 11 2 12 15 16 3 18 4 7
Page
SAMSUNG TECHWIN
105
SLM120/110
Electric Panel Ass’y
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
106
SLM120/110

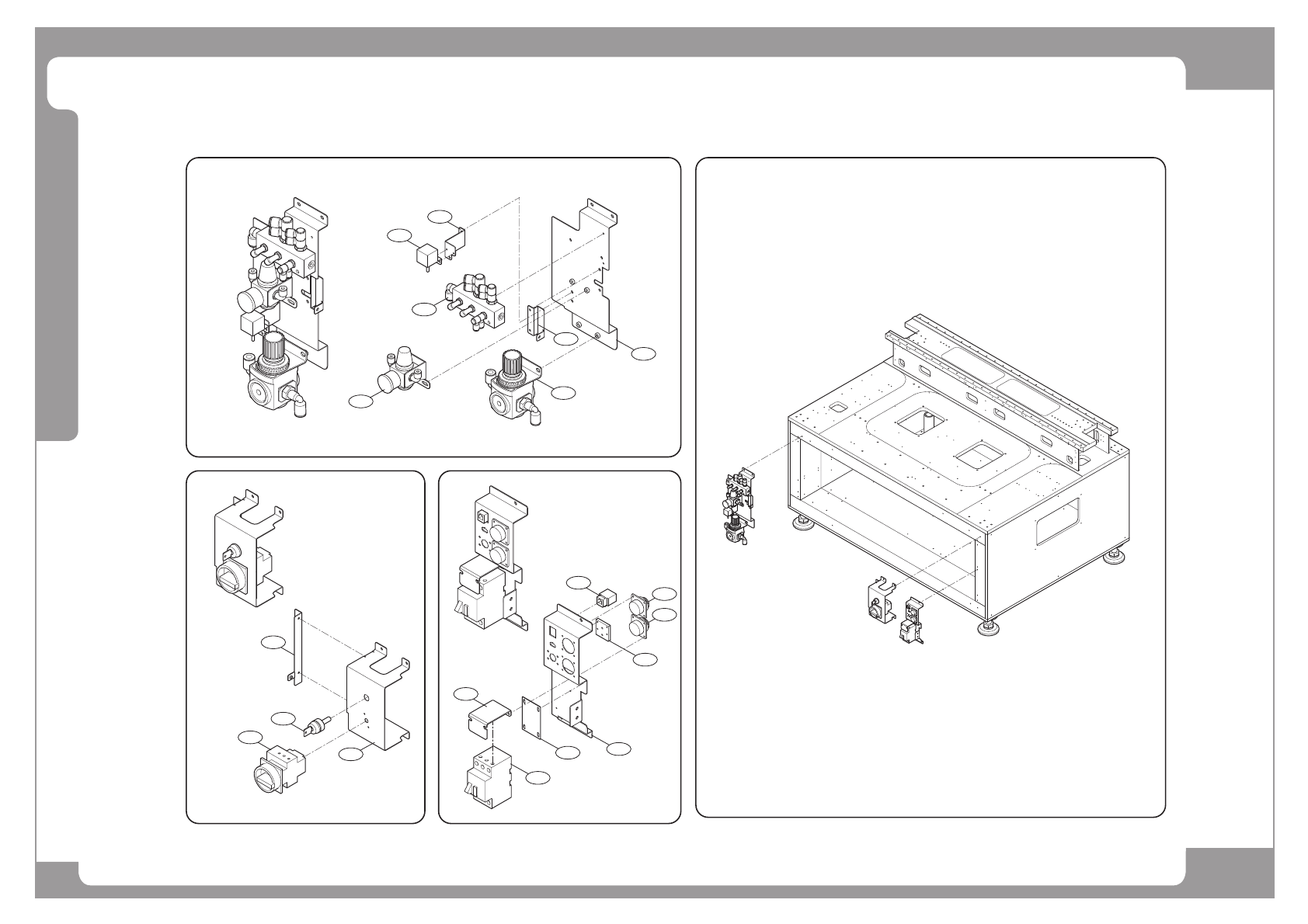

Electric Device Ass’y (1/2)
10
6
1
17
13
14
9
5
5
8
11
2
12
15
16
3
18
4
7
Page
SAMSUNG TECHWIN
107
SLM120/110
Electric Device Ass’y (1/2)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J72521004A
ELEC_ACRYL J72521004A
1
2 J70521636A
POWER_PANEL_F J70521636A
1
3 J70521637A
POWER_PANEL_R J70521637A
1
4 FC09-000835A MAIN_AIR_PANEL 1 J70521638A
5 J90831133B INLINE IN-OUT CABLE ASSY 2
6 J70521669A MAGNETIC_CATCHE_BAR 1
7 J70521670A
MAGNETIC_CATCHE_BAR_L J70521670A
1
8 J90581025A SM431_MANIFOLD_ASSY 1 J90581001A
9 J70521639A
PRESSURE_GAUGE_BKT J70521639A
1
10 J32041001A
PRESSURE_SENSOR PSA-1(RC1/8)
1
11 J67091007A
REGULATOR J67091007A
1
12 J67091029A
REGULATOR PR4-04B
1
13 J3409019A KEY SWITCH 1
14 J34060058B LOAD SWITCH 1
15 J3603020A
MAIN CIRCUIT BREAKER[GV2-ME20]
1
16 J3716070A
PANEL[GV2-AF02]
1
17 J3713061A
CONNECTOR[555376-1]
1
18 J7152027A
GROUND TERMINAL [J7152027A]
1
