Page SAMSUNG TECHWIN 131 SLM120/110 C onveyor Board Interface 120 (1/7) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J90834108 A FD_AX_SEN_B D_CAN_CABLE_ASS Y AP5_CA002 1 2 J90834109A CO…
Page
SAMSUNG TECHWIN
130
SLM120/110

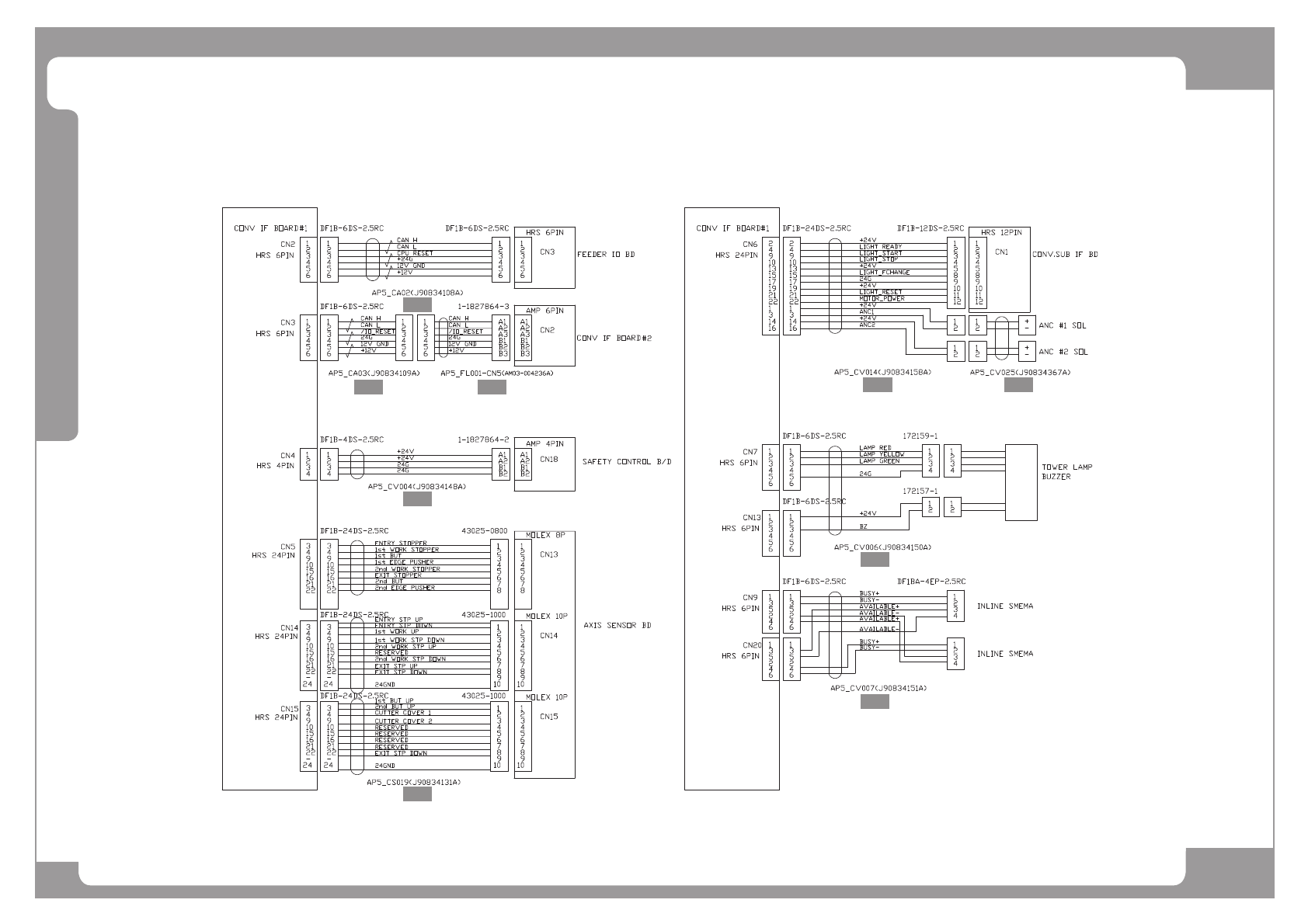

Conveyor Board Interface 120 (1/7)
^4`
^5`
^6`
^7`
^8`
^9`
^:`
^;`
^<`
Page
SAMSUNG TECHWIN
131
SLM120/110
Conveyor Board Interface 120 (1/7)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834108A FD_AX_SEN_BD_CAN_CABLE_ASSY AP5_CA002 1
2 J90834109A CONV_HEAD_1_CAN_CABLE_ASSY AP5_CA003 1
3 AM03-004236A CABLE ASSY-FLAT_CABLE 1
4 J90834148A CONV_IF_BD_POWER_CABLE_ASSY AP5_CV004 1
5 J90834131A AXIS_SEN_BD_IO_CABLE_ASSY AP5_CS019 1
6 J90834158A OP_SW_OUTPUT_CABLE_ASSY AP5_CV014 1
7 J90834367A ANC_SOL_CABLE_ASSY AP5_CV025 1
8 J90834150A TOWER_LAMP_EXT_CABLE_ASSY AP5_CV006 1
9 J90834151A INLINE_IN_OUT_CABLE_ASSY AP5_CV007 1
Page
SAMSUNG TECHWIN
132
SLM120/110
Conveyor Board Interface 120 (2/7)
AM03-004236AAM03-004236A
^4`
^5` ^6`
^7`
^7`
^<` ^43`
^44`
^47`
^8`
^9`
^:`
^;`
^45`
^46`
