Page SAMSUNG TECHWIN 156 SLM120/110 A xis Sensor Board Interface (1/2) ^4` ^5` ^7` ^6` ^8` ^9` ^:` ^6` ^;` ^6` ^<`
Page
SAMSUNG TECHWIN
155
SLM120/110
Conveyor Board Interface 110 (6/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834367A ANC_SOL_CABLE_ASSY AP5_CV025 1
2 J90834158A OP_SW_OUTPUT_CABLE_ASSY AP5_CV014 1
3 J90834159A FOP_SW_INPUT_CABLE_ASSY AP5_CV015 1
4 J90834160A ROP_SW_INPUT_CABLE_ASSY AP5_CV016 1
5 J90834154A AIR_INDICATOR_EXT_CABLE_ASSY AP5_CV010 1
6 J90833142A AIR_INDICATOR_CABLE_ASSY SM33-CV020-1 1
7 J90834261A FRONT_OP_SW_CABLE_ASSY AP5_OP005 1
8
J70521673A OP_PANEL_ASSY AP5_OP001
1
9 J90834310A CONVEYOR_SUB_CONN_CABLE_ASSY AP5_SC003 1
Page
SAMSUNG TECHWIN
156
SLM120/110

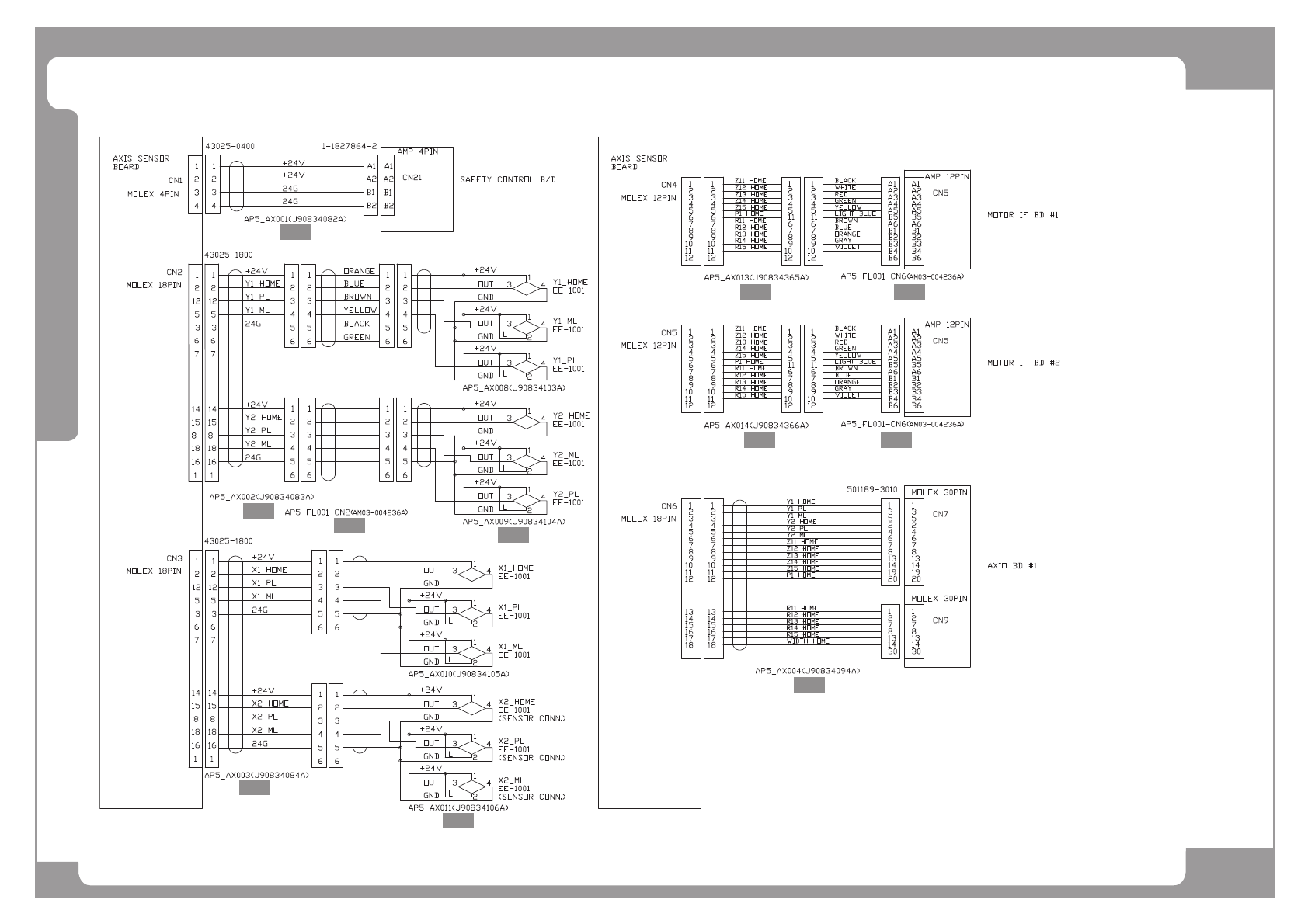

Axis Sensor Board Interface (1/2)
^4`
^5`
^7`
^6`
^8`
^9`
^:`
^6`
^;` ^6`
^<`
Page
SAMSUNG TECHWIN
157
SLM120/110
Axis Sensor Board Interface (1/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834082A AXIS_SEN_BD_PW_CABLE_ASSY AP5_AX001 1
2 AM03-013463A GANTRY_Y_SEN_FL_BRK_CABLE_ASSY 1 J90834083A
3 AM03-004236A CABLE ASSY-FLAT_CABLE [AP5_FL001] 3
4 J90834104A GANTRY_2_Y2_SEN_CABLE_ASSY AP5_AX009 1
5
J90834084A GANTRY_X_SEN_FL_BRK_CABLE_ASSY
1 J90834084A
6 J90834106A GANTRY_2_X2_SEN_CABLE_ASSY AP5_AX011 1
7
J90834365A HEAD_1_HOME_SEN_CABLE_ASSY AP5_AX013
1 J90834365A
8
J90834366A HEAD_2_HOME_SEN_CABLE_ASSY AP5_AX014
1 J90834366A
9 J90834094A FRONT_AXIS_SENSOR_CABLE_ASSY AP5_AX004 1
