Page SAMSUNG TECHWIN 165 SLM120/110 A XIO Board Interface (3/8) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-004788 A CABLE AS SY -FZ4_DRV_CN1A_CN1 B_CABLE_ASSY 1 2 J90834328A F Z3_…
Page
SAMSUNG TECHWIN
164
SLM120/110

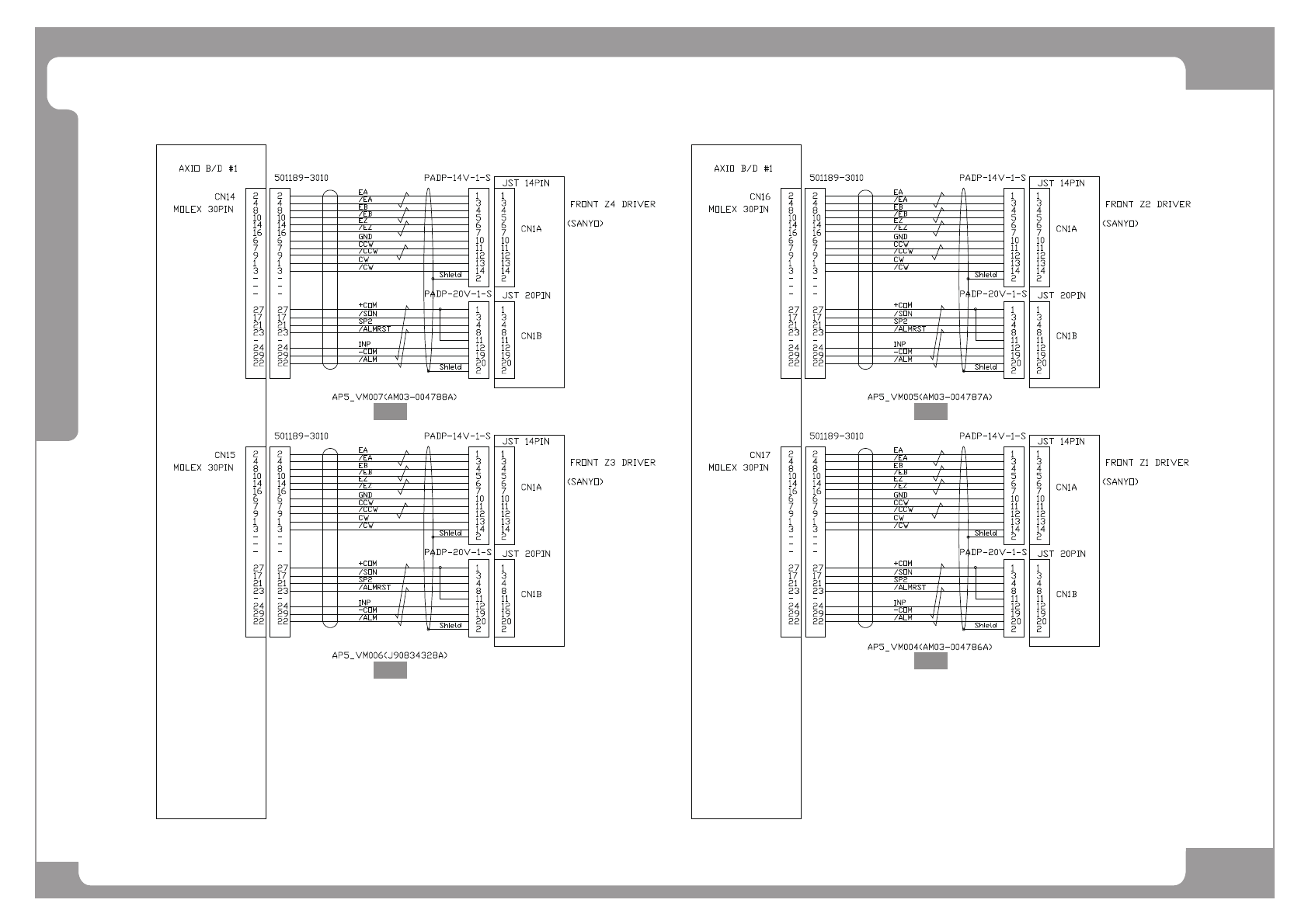

AXIO Board Interface (3/8)
^4`
^5`
^6`
^7`
Page
SAMSUNG TECHWIN
165
SLM120/110
AXIO Board Interface (3/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004788A CABLE ASSY-FZ4_DRV_CN1A_CN1B_CABLE_ASSY 1
2 J90834328A FZ3_DRV_CN1A_CN1B_CABLE_ASSY AP5_VM006 1
3 AM03-004787A CABLE ASSY-FZ2_DRV_CN1A_CN1B_CABLE_ASSY 1
4 AM03-004786A CABLE ASSY-FZ1_DRV_CN1A_CN1B_CABLE_ASSY
Page
SAMSUNG TECHWIN
166
SLM120/110
AXIO Board Interface (4/8)
^4`
^5`
^6`
^7`
^8`
