Page SAMSUNG TECHWIN 170 SLM120/110 A XIO Board Interface (6/8) ^4` ^5` ^6` ^7`
Page
SAMSUNG TECHWIN
169
SLM120/110
AXIO Board Interface (5/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834315A SC_CN23_AXIO_2_PWR_CABLE_ASSY AP5_SC008 1
2
J90834110A AXIO_2_HEAD_2_CAN_CABLE_ASSY AP5_CA004
1 J90834110A
3 J90611826A FLAT_CABLE_ASSY AP5_FL001 1
4 J90834345A R_VAC_BLOW_SENSOR_CABLE_ASSY AP5_AX012 1
5 J90611826A FLAT_CABLE_ASSY AP5_FL001 1
Page
SAMSUNG TECHWIN
170
SLM120/110
AXIO Board Interface (6/8)
^4`
^5`
^6`
^7`
Page
SAMSUNG TECHWIN
171
SLM120/110

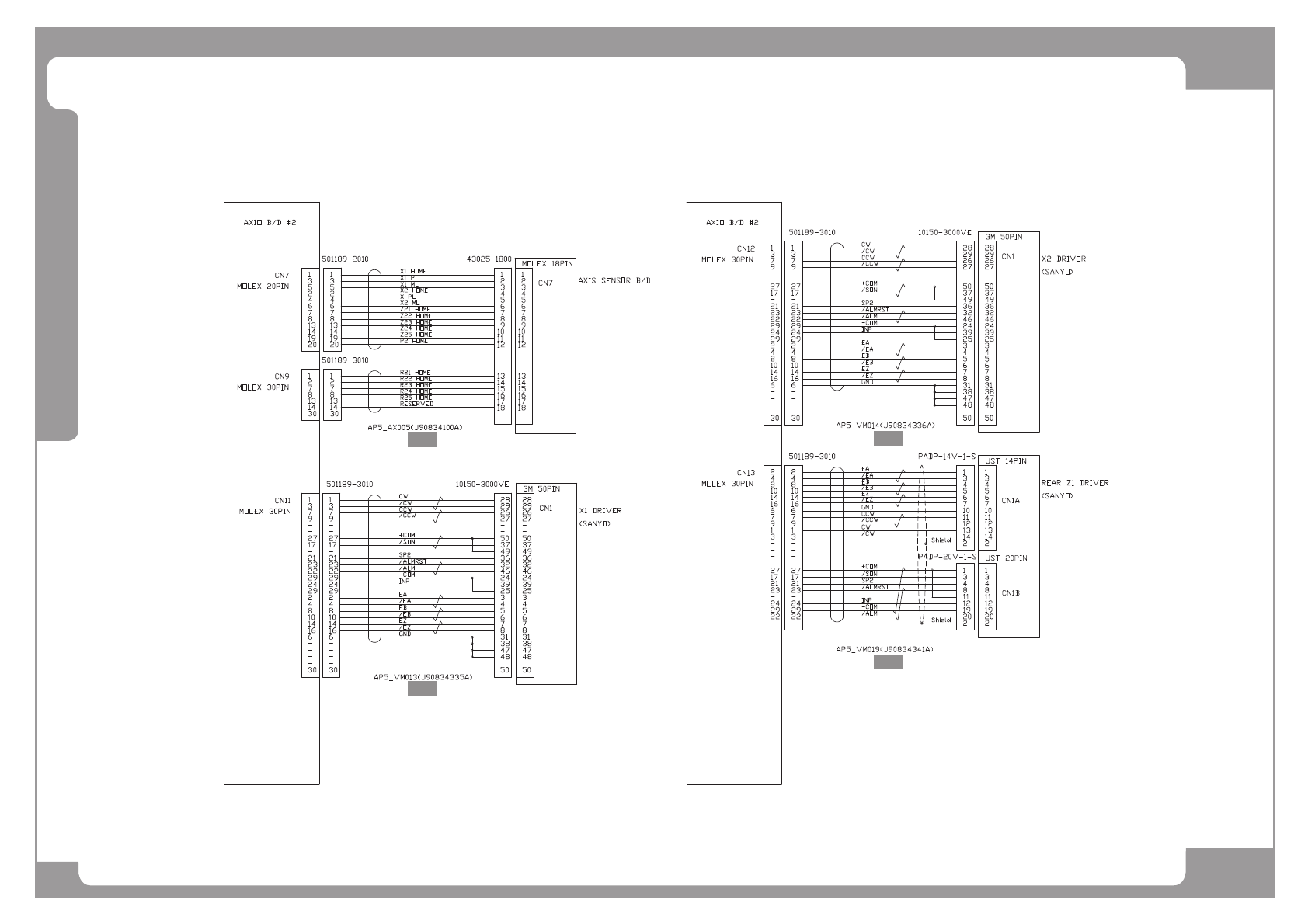

AXIO Board Interface (6/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834100A REAR_AXIS_SENSOR_CABLE_ASSY AP5_AX005 1
2 J90834335A X1_DRV_CN1_CABLE_ASSY AP5_VM013 1
3 J90834336A X2_DRV_CN1_CABLE_ASSY AP5_VM014 1
4 J90834341A RZ5_DRV_CN1A_CN1B_CABLE_ASSY AP5_VM019 1
