Page SAMSUNG TECHWIN 178 SLM120/110 A xis Sensor Board Interface 110 (2/2) ^4` ^5` ^6` ^7` ^8` ^9` ^:`
Page
SAMSUNG TECHWIN
177
SLM120/110
Axis Sensor Board Interface 110 (1/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834082A AXIS_SEN_BD_PW_CABLE_ASSY AP5_AX001 1
2 J90834083A GANTRY_Y_SEN_FL_BRK_CABLE_ASSY 1
3 J90831826A REAR_DOOR_SENSOR_CABLE_ASSY 3
4 J90834104A GANTRY_2_Y2_SEN_CABLE_ASSY AP5_AX009 1
5 J90834084A GANTRY_X_SEN_FL_BRK_CABLE_ASSY 1
6 J90834106A GANTRY_2_X2_SEN_CABLE_ASSY AP5_AX011 1
7
J90834365A HEAD_1_HOME_SEN_CABLE_ASSY AP5_AX013
1 J90834365A
8 J90834366A HEAD_2_HOME_SEN_CABLE_ASSY AP5_AX014 1
9 J90834094A FRONT_AXIS_SENSOR_CABLE_ASSY AP5_AX004 1
Page
SAMSUNG TECHWIN
178
SLM120/110

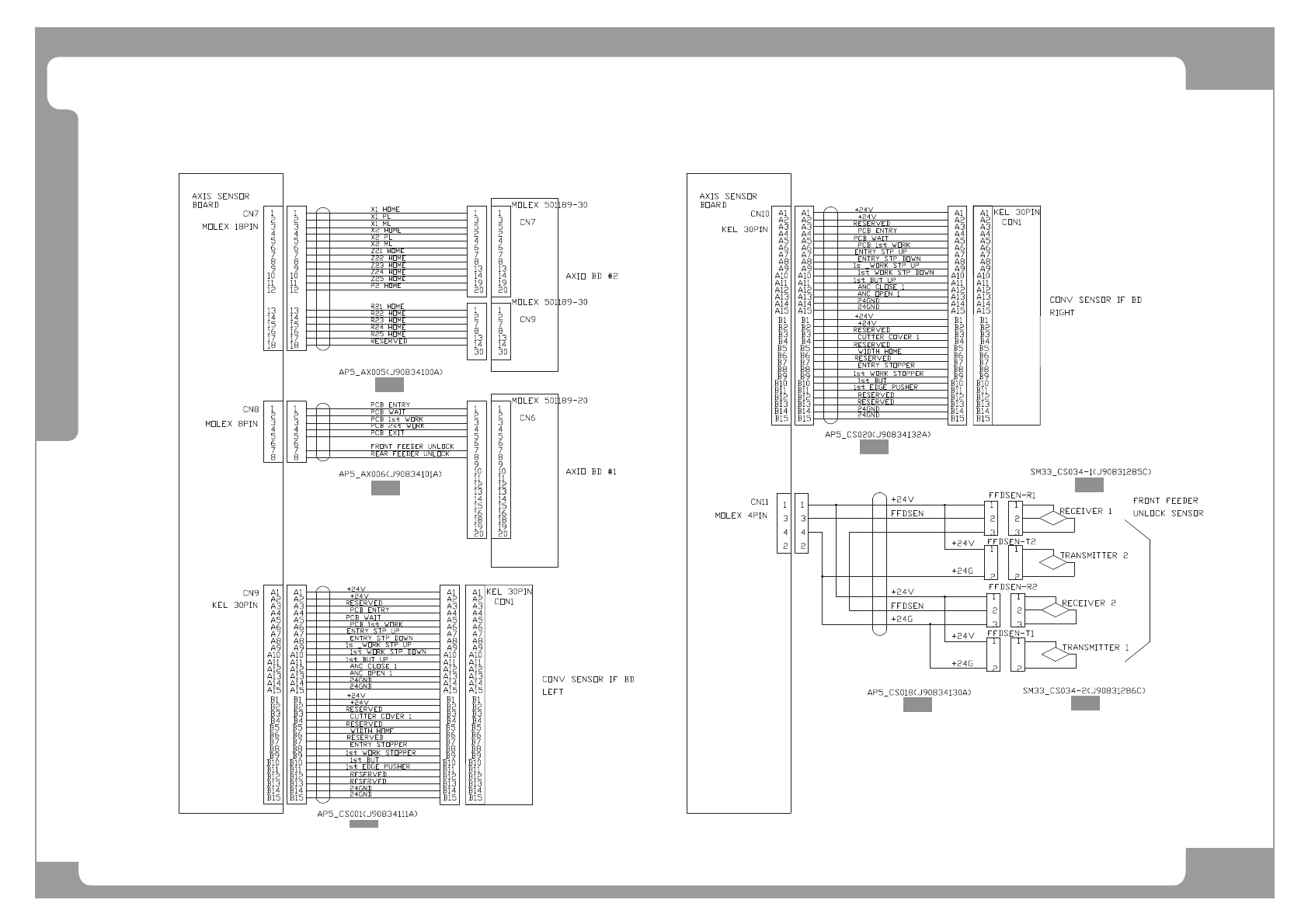

Axis Sensor Board Interface 110 (2/2)
^4`
^5`
^6`
^7`
^8`
^9`
^:`
Page
SAMSUNG TECHWIN
179
SLM120/110
Axis Sensor Board Interface 110 (2/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834100A REAR_AXIS_SENSOR_CABLE_ASSY AP5_AX005 1
2 J90834101A AXIS_SENSOR_CABEL_ASSY AP5_AX006 1
3 J90834111A L_CONV_IF_BD_CABLE_ASSY AP5_CS001 1
4 J90834132A R_CONV_IF_BD_CABLE_ASSY AP5_CS020 1
5 J90831285C FDR_UNLOCK_LEFT_CABLE_ASSY SM33-CS034-1 1
6
J90834130A FEEDER_UNLOCK_SEN_CABLE_ASSY AP5_CS018
1 J90834130A
7
AM03-000171A FDR_UNLOCK_RIGHT_CABLE_ASSY
1
