Page SAMSUNG TECHWIN 183 SLM120/110 A XIO Board Interface 110 (2/4) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J90834094A F RONT_AXIS_SENS OR_CABLE_ASS Y AP5_AX004 1 2 J90834323A Y 1_D…
Page
SAMSUNG TECHWIN
182
SLM120/110

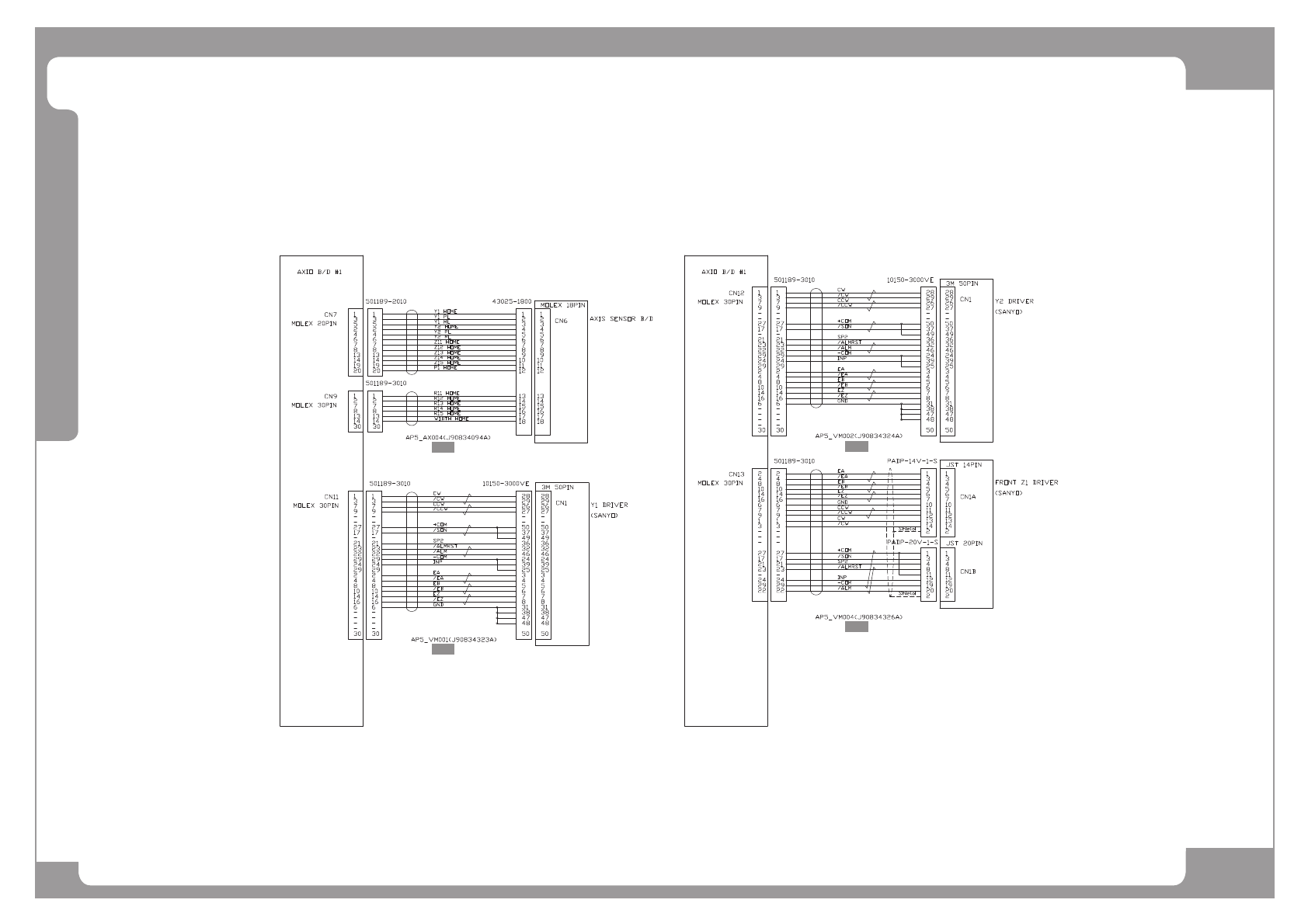

AXIO Board Interface 110 (2/4)
^4`
^5`
^6`
^7`
Page
SAMSUNG TECHWIN
183
SLM120/110
AXIO Board Interface 110 (2/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834094A FRONT_AXIS_SENSOR_CABLE_ASSY AP5_AX004 1
2 J90834323A Y1_DRV_CN1_CABLE_ASSY AP5_VM001 1
3 J90834324A Y2_DRV_CN1_CABLE_ASS AP5_VM002 1
4 J90834326A FZ1_DRV_CN1A_CN1B_CABLE_ASSY AP5_VM004 1
Page
SAMSUNG TECHWIN
184
SLM120/110

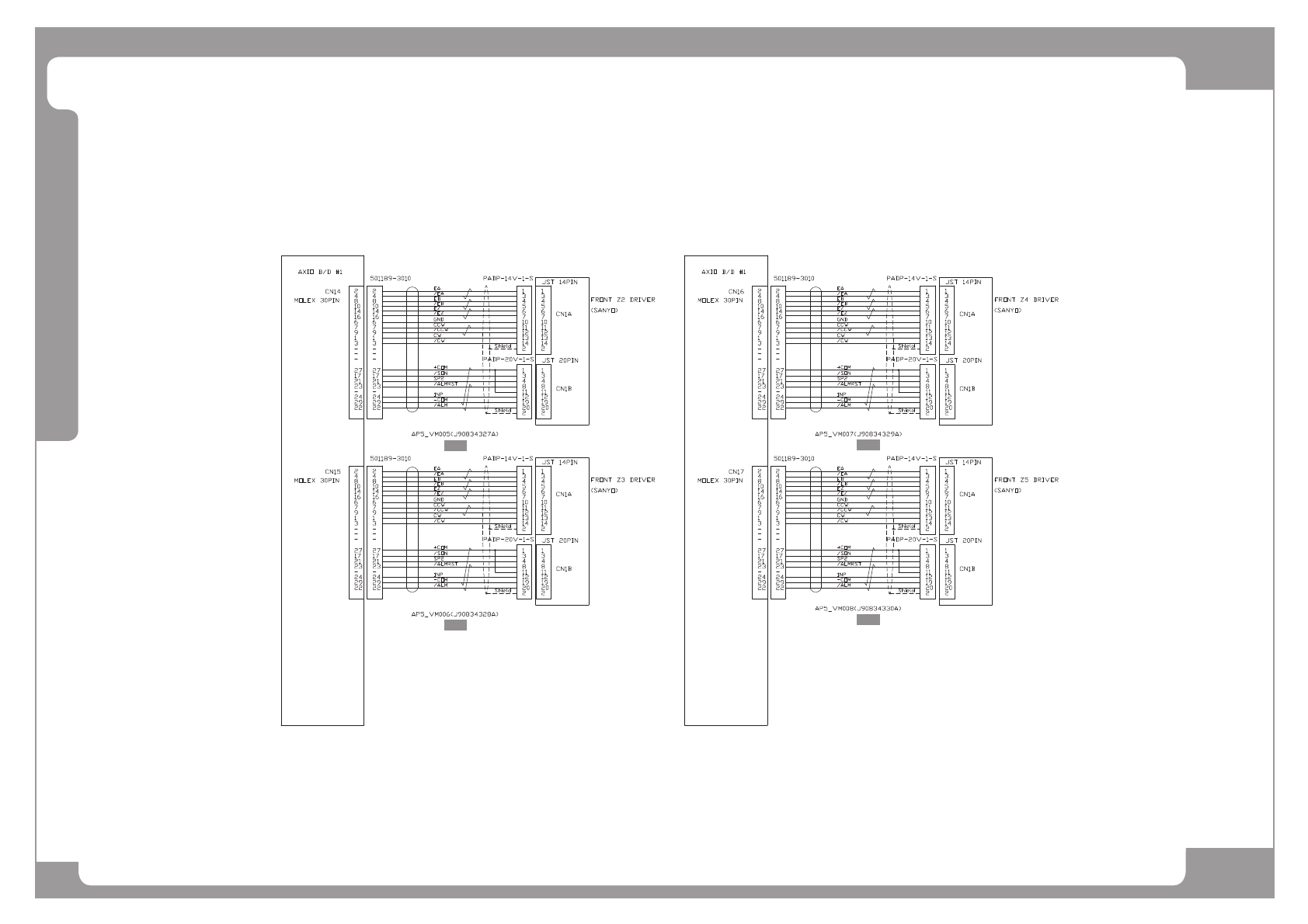

AXIO Board Interface 110 (3/4)
^4`
^5`
^6`
^7`
