Page SAMSUNG TECHWIN 202 SLM120/110 M otor IF Board Interface 120 (2/8) ^4` ^4` ^5` ^6` ^5` ^7` ^8` ^9`
Page
SAMSUNG TECHWIN
201
SLM120/110
Motor IF Board Interface 120 (1/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004987A CABLE ASSY-FL002-1_FLAT_CABLE_ASSY 2
2
J90834317A HEAD_MOTOR_IF_BD_2_PW_CABLE_ASSY
1 J90834316A
3 AM03-004770A CABLE ASSY-LEFT_R4_MOTOR 1
4 J90834363A HEAD_R4_HOME_CABLE_ASSY AP5_MD073 1
5 AM03-004771A CABLE ASSY-LEFT_R5_MOTOR 1
6 J90834364A HEAD_R5_HOME_CABLE_ASSY AP5_MD074 1
7
J90834365A HEAD_1_HOME_SEN_CABLE_ASSY AP5_AX013
2 J90834365A
8 AM03-004988A CABLE ASSY-FL003-1_FLAT_CABLE_ASSY 1
Page
SAMSUNG TECHWIN
202
SLM120/110

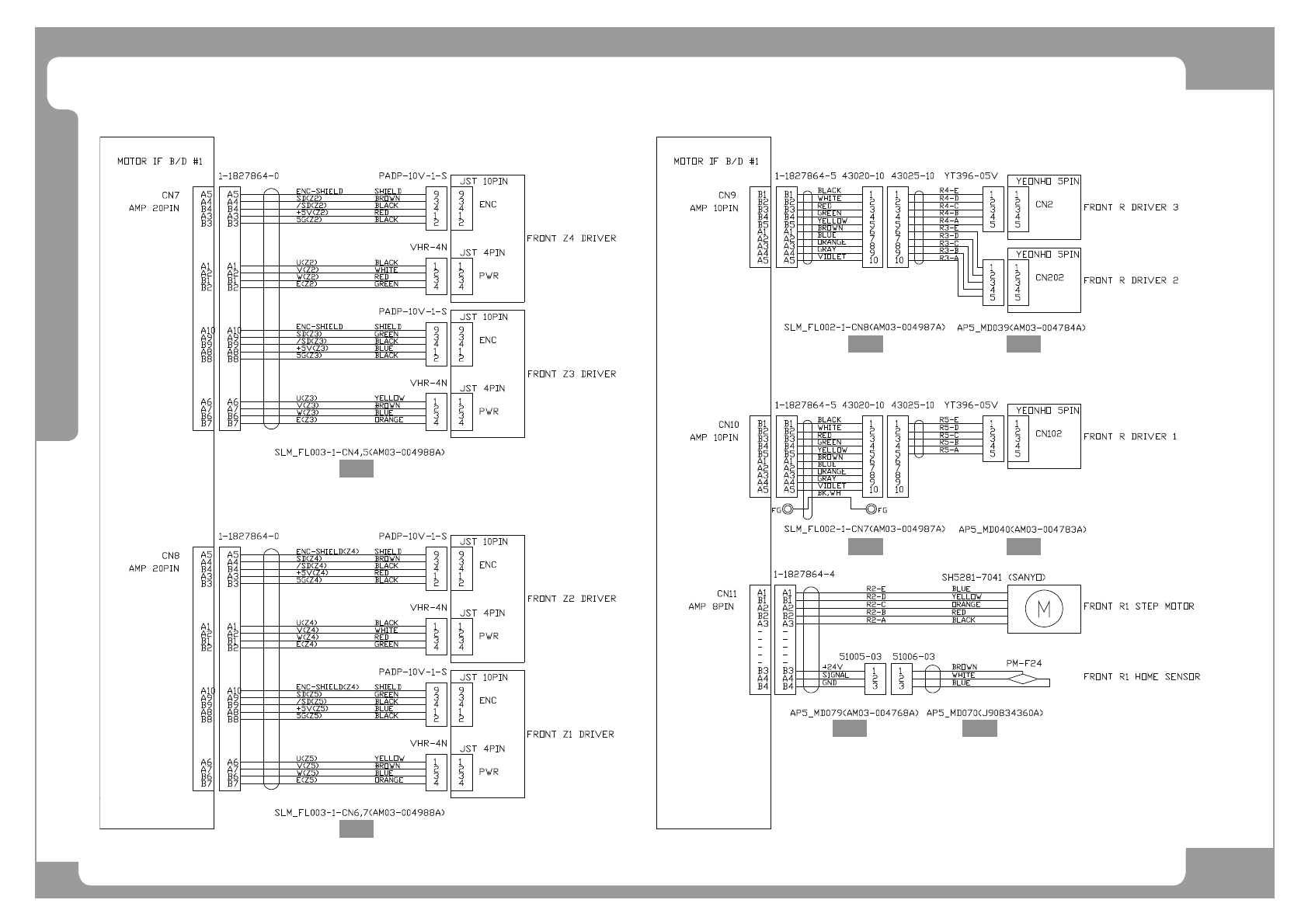

Motor IF Board Interface 120 (2/8)
^4`
^4`
^5` ^6`
^5` ^7`
^8` ^9`
Page
SAMSUNG TECHWIN
203
SLM120/110
Motor IF Board Interface 120 (2/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004988A CABLE ASSY-FL003-1_FLAT_CABLE_ASSY 2
2 AM03-004987A CABLE ASSY-FL002-1_FLAT_CABLE_ASSY 2
3 AM03-004784A CABLE ASSY-FR23_STEP_MOT_PWR_EXT_CABLE_ 1
4 AM03-004783A CABLE ASSY-FR1_STEP_MOT_PWR_EXT_CABLE_A 1
5 AM03-004768A CABLE ASSY-LEFT_R1_MOTOR 1
6 J90834360A HEAD_R1_HOME_CABLE_ASSY AP5_MD070 1
