Page SAMSUNG TECHWIN 213 SLM120/110 M otor IF Board Interface 120 (7/8) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J908342 30A R4_MOT OR_CABLE_ASSY A P5_MD044 1 2 J90834363 A HEAD_R4_H…
Page
SAMSUNG TECHWIN
212
SLM120/110

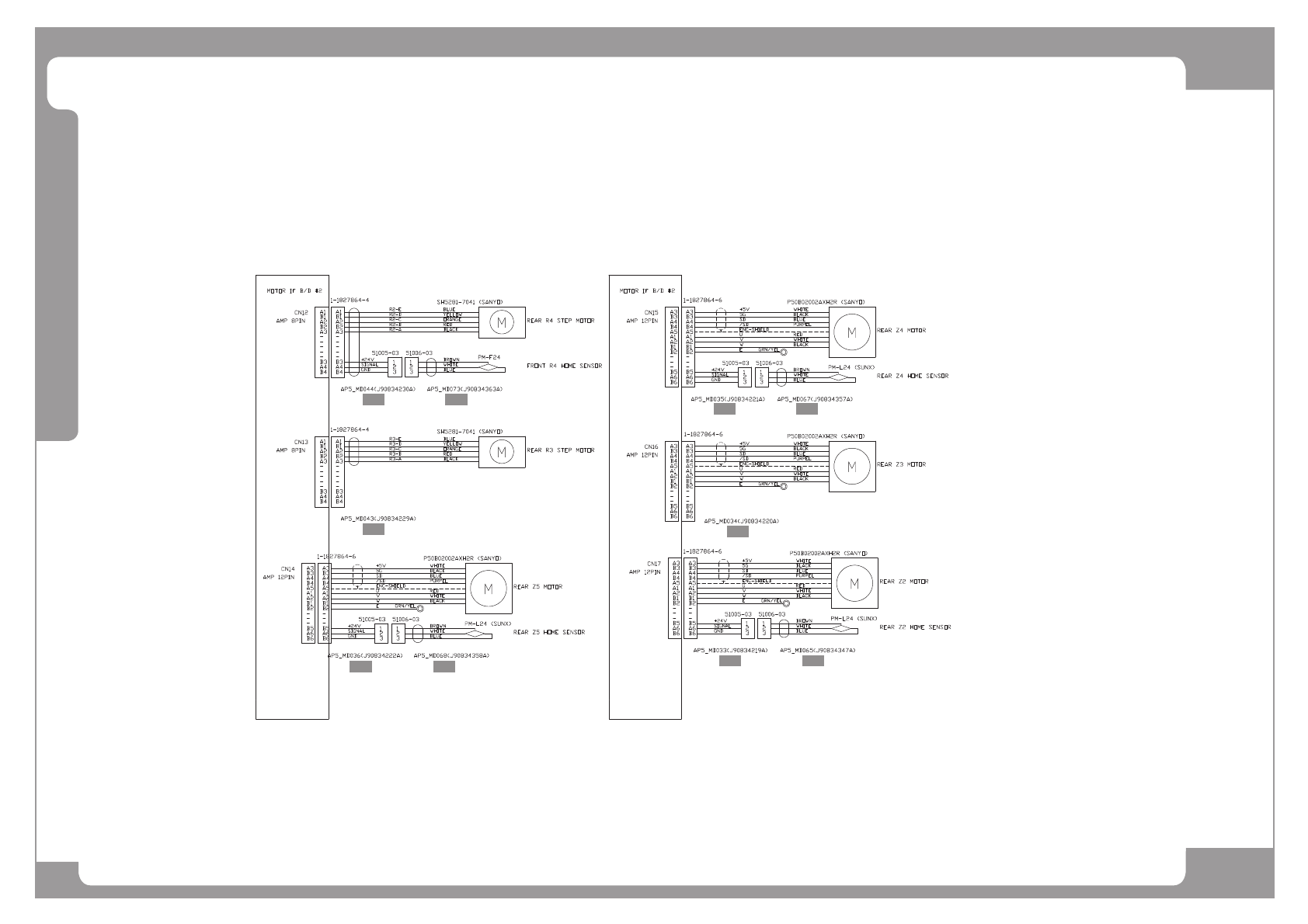

Motor IF Board Interface 120 (7/8)
^4`
^5`
^6`
^7` ^8`
^9` ^:`
^;`
^<` ^43`
Page
SAMSUNG TECHWIN
213
SLM120/110
Motor IF Board Interface 120 (7/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834230A R4_MOTOR_CABLE_ASSY AP5_MD044 1
2 J90834363A HEAD_R4_HOME_CABLE_ASSY AP5_MD073 1
3 J90834229A R3_MOTOR_CABLE_ASSY AP5_MD043 1
4 J90834222A Z5_MOTOR_CABLE_ASSY AP5_MD036 1
5 J90834358A HEAD_Z5_HOME_SENSOR_CABLE_ASSY 1
6 J90834221A Z4_MOTOR_CABLE_ASSY AP5_MD035 1
7 J90834357A HEAD_Z4_HOME_SENSOR_CABLE_ASSY 1
8 J90834220A Z3_MOTOR_CABLE_ASSY AP5_MD034 1
9 J90834219A Z2_MOTOR_CABLE_ASSY AP5_MD033 1
10 J90834347A HEAD_Z2_HOME_SENSOR_CABLE_ASSY 1
Page
SAMSUNG TECHWIN
214
SLM120/110
Motor IF Board Interface 120 (8/8)
^4`
^5`
^6`
^7`
^8`
^9`
