Page SAMSUNG TECHWIN 216 SLM120/110 M otor IF Board Interface 110 (1/4) ^4` ^5` ^6` ^7` ^:` ^8` ^4` ^;` ^9` ^:`
Page
SAMSUNG TECHWIN
215
SLM120/110
Motor IF Board Interface 120 (8/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834218A Z1_MOTOR_CABLE_ASSY AP5_MD032 1
2 J90834346A HEAD_Z1_HOME_SENSOR_CABLE_ASSY 1
3 J90834223A P_MOTOR_CABLE_ASSY AP5_MD037 1
4 J90834359A HEAD_P_HOME_CABLE_ASSY AP5_MD069 1
5 J90834349A HEAD_Z3_HOME_SENSOR_CABLE_ASSY 1
6 J90834362A HEAD_R3_HOME_CABLE_ASSY AP5_MD072 1
Page
SAMSUNG TECHWIN
216
SLM120/110

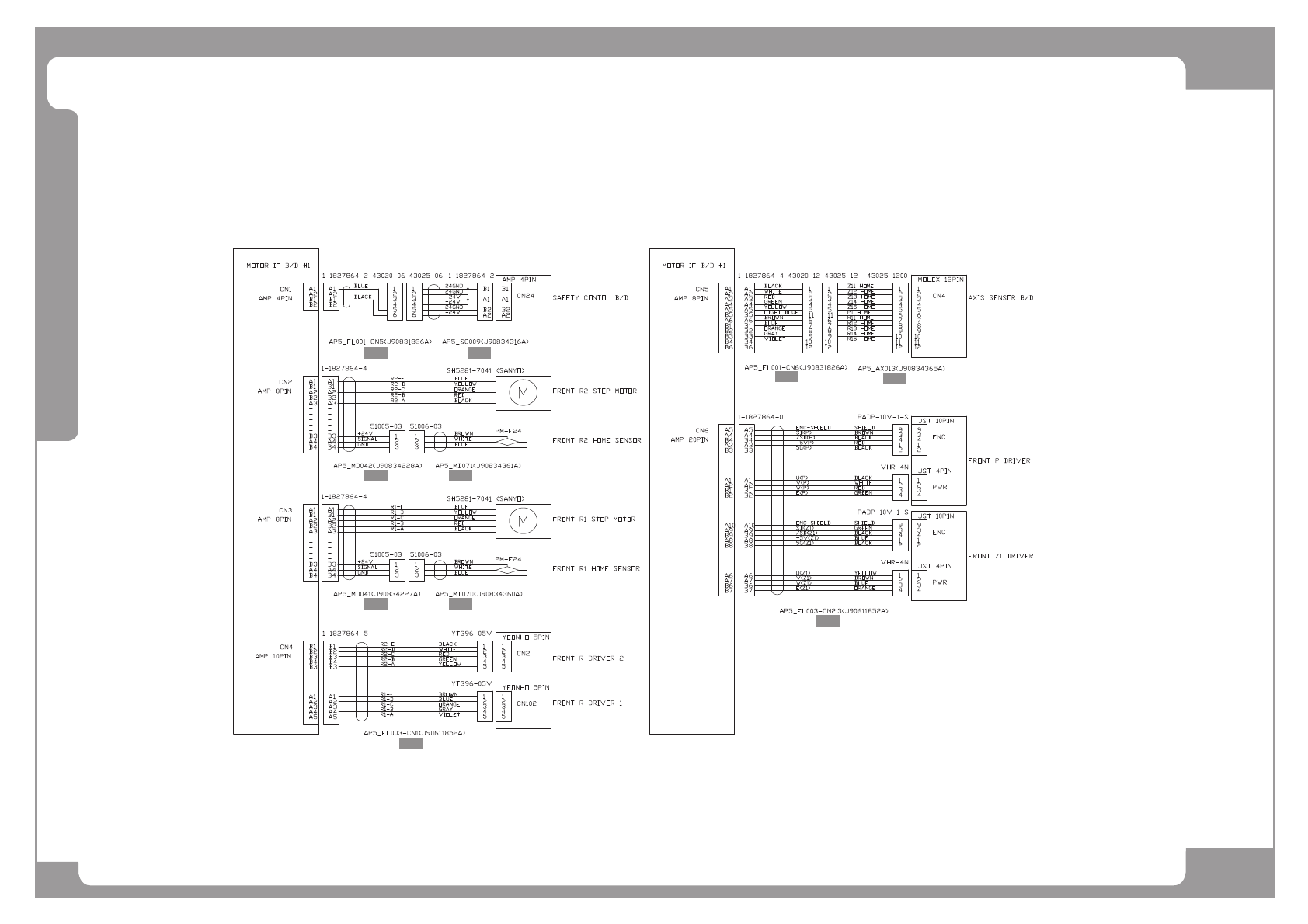

Motor IF Board Interface 110 (1/4)
^4` ^5`
^6` ^7`
^:`
^8`
^4`
^;`
^9`
^:`
Page
SAMSUNG TECHWIN
217
SLM120/110
Motor IF Board Interface 110 (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90831826A REAR_DOOR_SENSOR_CABLE_ASSY 2
2
J90834316A HEAD_MOTOR_IF_BD_1_PW_CABLE_ASSY
1 J90834316A
3 J90834228A R2_MOTOR_CABLE_ASSY AP5_MD042 1
4 J90834361A HEAD_R2_HOME_CABLE_ASSY AP5_MD071 1
5 J90834227A R1_MOTOR_CABLE_ASSY AP5_MD041 1
6 J90834360A HEAD_R1_HOME_CABLE_ASSY AP5_MD070 1
7 J90611852A FLAT_CABLE_ASSY AP5_FL003 2
8
J90834365A HEAD_1_HOME_SEN_CABLE_ASSY AP5_AX013
1 J90834365A
