Page SAMSUNG TECHWIN 228 SLM120/110 S afety Interlock Interface 110 (1/2) ^4` ^5` ^6` ^7` ^:` ^8` ^;` ^<` ^6` ^9` -$
Page
SAMSUNG TECHWIN
227
SLM120/110
Safety Interlock Interface 120 (2/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834178A FDR_BASE_PWR_CABEL_ASSY AP5_FD006 1
2 J90834148A CONV_IF_BD_POWER_CABLE_ASSY AP5_CV004 1
3 J90834082A AXIS_SEN_BD_PW_CABLE_ASSY AP5_AX001 1
4 J90834314A SC_CN22_AXIO_1_PWR_CABLE_ASSY AP5_SC007 2
5
J90834316A HEAD_MOTOR_IF_BD_1_PW_CABLE_ASSY
1 J90834316A
6 J90611826A FLAT_CABLE_ASSY AP5_FL001 2
7
J90834317A HEAD_MOTOR_IF_BD_2_PW_CABLE_ASSY
1 J90834317A
8 J90834169A FDR_IO_PWR_CABLE_ASSY AP5_FD001 1
Page
SAMSUNG TECHWIN
228
SLM120/110

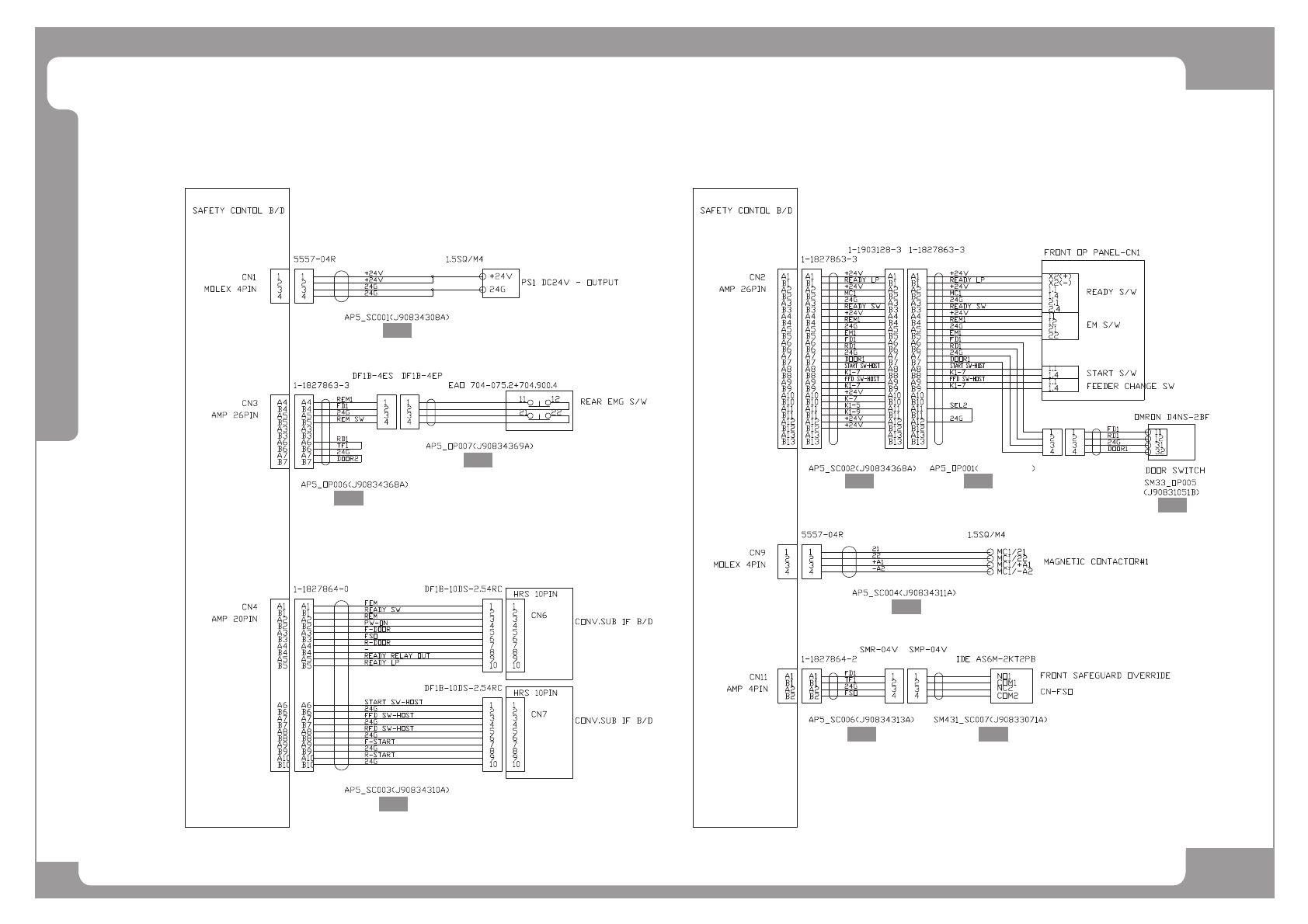

Safety Interlock Interface 110 (1/2)
^4`
^5`
^6`
^7`
^:`
^8`
^;` ^<`
^6`
^9`
-$
Page
SAMSUNG TECHWIN
229
SLM120/110
Safety Interlock Interface 110 (1/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834308A PS1_SC_CN1_PWR_CABLE_ASSY AP5_SC001 1
2 J90834369A REAR_EMG_S/W_CABLE_ASSY AP5_OP007 1
3 J90834368A REAR_EMG_S/W_EXT_CABLE_ASSY AP5_OP006 2
4 J90834310A CONVEYOR_SUB_CONN_CABLE_ASSY AP5_SC003 1
5
J70521673A OP_PANEL_ASSY AP5_OP001
1
6 J90831051B FRONT_REAR_DOOR_SW_CABLE_ASSY 1
7 J90834311A MAGNETIC_CONTACTOR_CABLE_ASSY 1
8 J90834313A OVERRIDE_KEY_EXT_CABLE_ASSY AP5_SC006 1
9 J90833071A SAFEGUARD OVERRIDE SW CABLE SM431_SC007 1
