Page SAMSUNG TECHWIN 248 SLM120/110 E lectric Circuit Diagram 110 (4/5) ^4` ^5` ^:` ^9` ^8` ^7` ^6` ^;` ^<`
Page
SAMSUNG TECHWIN
247
SLM120/110
Electric Circuit Diagram 110 (3/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834271A CONTROL_RACK_POWER_CABLE_ASSY 1
2 J90834272A MONITOR_POWER_CABLE_ASSY AP5_PW011 1
3 J90834273A PS1_TB1_POWER_CABLE_ASSY AP5_PW012 2
4 J90834308A PS1_SC_CN1_PWR_CABLE_ASSY AP5_SC001 1
5 J90834275A RIGHT_FAN_POWER_CABLE_ASSY AP5_PW014 1
6 J90833316A FAN_CABLE_ASSY SM-FAN00 1
Page
SAMSUNG TECHWIN
248
SLM120/110
Electric Circuit Diagram 110 (4/5)
^4`
^5`
^:`
^9`
^8`
^7`
^6`
^;`
^<`
Page
SAMSUNG TECHWIN
249
SLM120/110

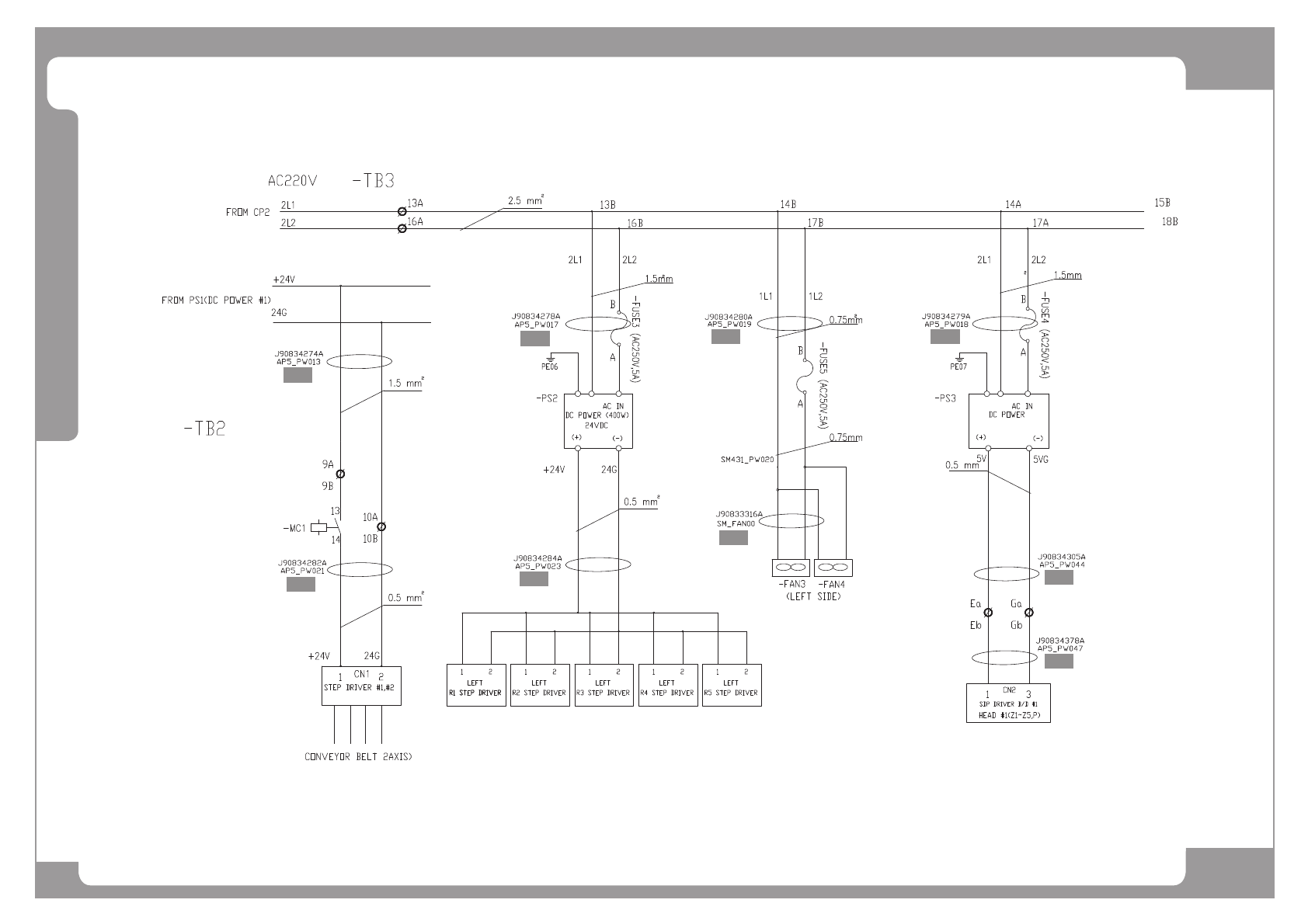

Electric Circuit Diagram 110 (4/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834274A PS1_SC_CN1_POWER_CABLE_ASSY AP5_PW013 1
2 J90834282A MC1_TB1_POWER_CABLE_ASSY AP5_PW021 1
3 J90834278A PS2_TB1_POWER_CABLE_ASSY AP5_PW017 1
4 J90834284A PS2_R_DRV_BD_PWR_CABLE_ASSY AP5_PW023 1
5 J90834280A LEFT_FAN_POWER_CABLE_ASSY AP5_PW019 1
6 J90833316A FAN_CABLE_ASSY SM-FAN00 1
7 J90834279A PS3_TB1_POWER_CABLE_ASSY AP5_PW018 1
8 J90834305A SDP_1_5V_PWR_CABLE_ASSY AP5_PW044 1
9 J90834378A Z_P_DRV_INPUT_POWER_1_CABLE_ASSY 1
