Page SAMSUNG TECHWIN 21 SLM120/110 C onveyor Ass’y (4/5) No. LEVEL P ART No. P ART NAME Q'TY T YPE Old No. Stock Apply Reference A RAIL_TRANSFER_L_ASSY 1 1 J661410 23A lead-screw-dcm16_470_5_toyo J661 41023A 1 2 J66…
Page
SAMSUNG TECHWIN
20
SLM120/110

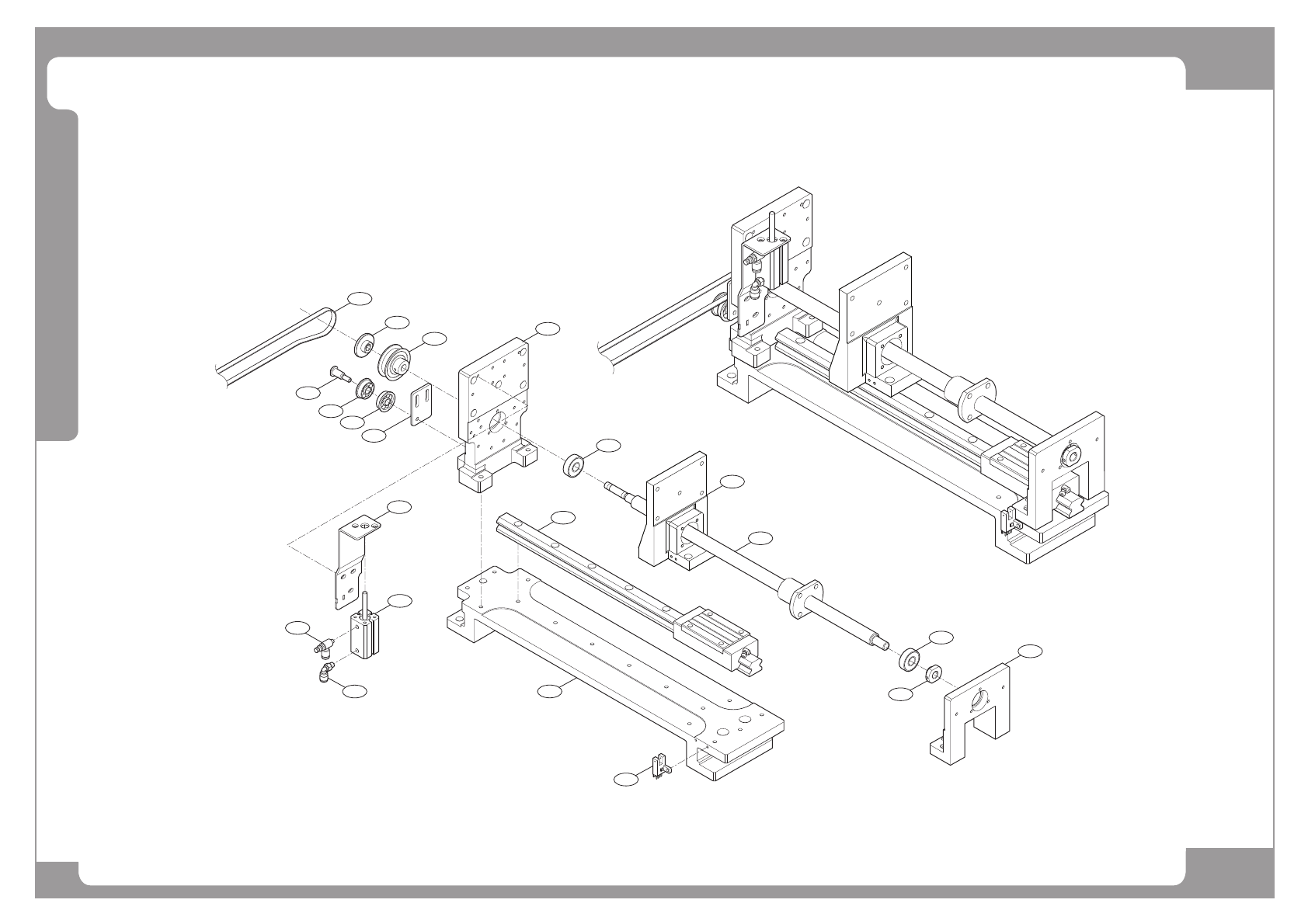

Conveyor Ass’y (4/5)
9
16
3
5
4
13
3
8
8
14
17
11
11
15
10
6
12
18
7
1
19
Page
SAMSUNG TECHWIN
21
SLM120/110
Conveyor Ass’y (4/5)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A RAIL_TRANSFER_L_ASSY 1
1 J66141023A
lead-screw-dcm16_470_5_toyo J66141023A
1
2 J66071149A
lm-rail-sbg20sll_410_sbc J66071149A
1
3 J66061005A
CYLINDER AQ2A12-30D
1
4 J6609012A
PULLEY-WIDTH [20-XL-025 ]
1
5 J70531109A
MANUAL_HANDLE J70531109A
1
6 J7053194A
BEARING NUT [J7053194A]
1
7 J66021201A TIMING_BELT 1
8 J6601008A
BALL BEARING
2
9 J6703007A
THROTTLE VALVE(ELBOW)
1
10 J3212004A PHOTO_SENSOR 1
11 J6601126A
BALL BEARING[F608ZZ]
2
12 J70531735A
BELT_TENSION_BKT J70531735A
1
13 J70531999A
ap5-04-fix_stand J70531999A
1
14 J70532006A
SCREW_STAND
1
15 J70532009A
ap5-04-support_wide_adjust J70532009A
1
16 J70532035A
AP5-04-WAIT_CYLINDER_BKT J70532035A
1
17 J70531736A
TENSION_BEARING_PIN J70531736A
1
18 J6711001A
ELBOW FITTING
1
19 J70531739A
MOVE_STAND J70531739A
1
Page
SAMSUNG TECHWIN
22
SLM120/110

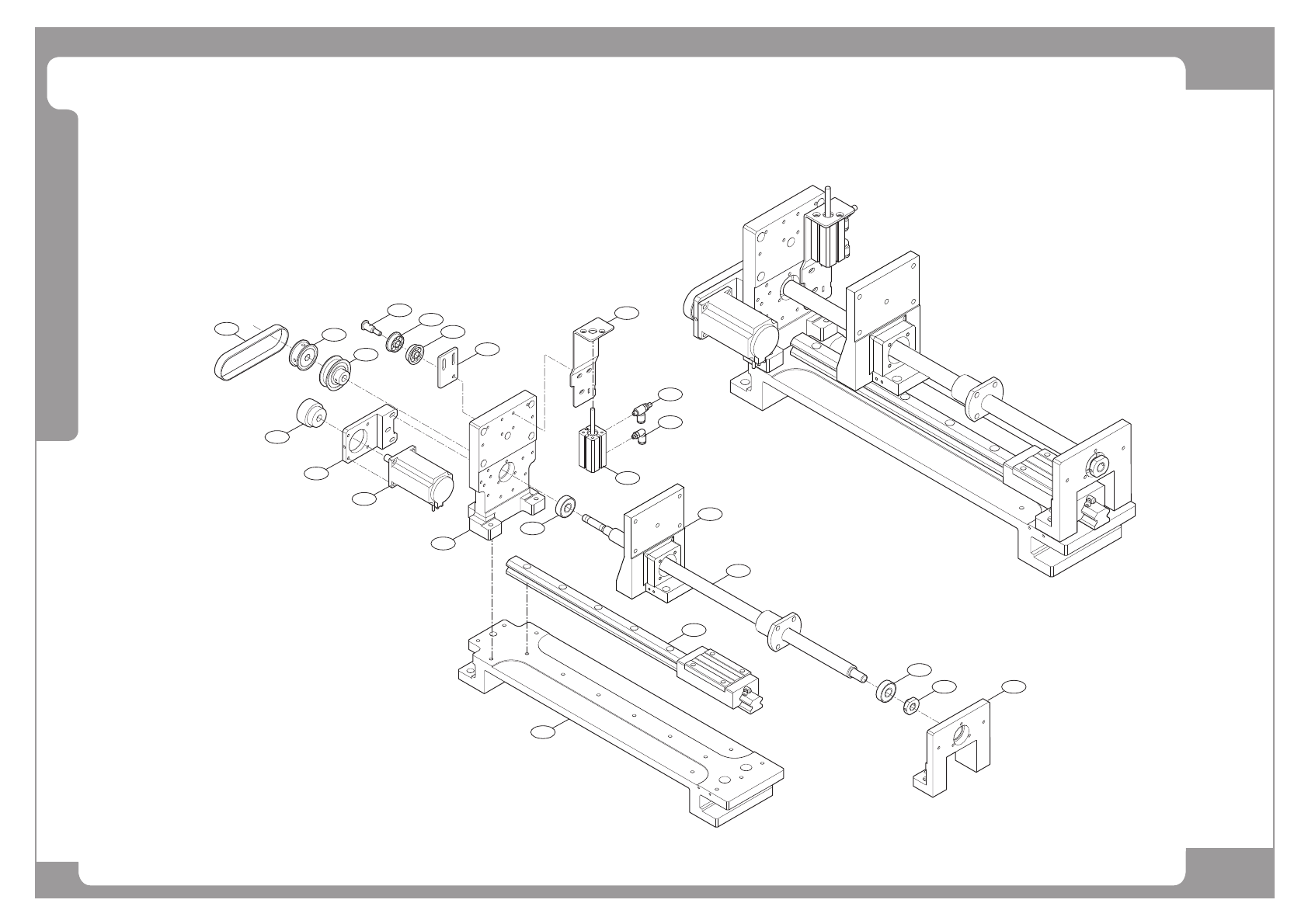

Conveyor Ass’y (5/5)
3
8
17
10
18
9
7 15
1
21
2
20
11
11
12
5
6
13
16
19
4
14
9
