Page SAMSUNG TECHWIN 35 SLM120/110 H ead Ass’y (3/12) No. LEVEL P ART No. P ART NAME Q'TY T YPE Old No. Stock Apply Reference 1 J715519 03A HEAD_BKT_COVER_R J71551903 A 1 2 J715519 07A FID_BRACKET_R J71551907A 1 3 J…
Page

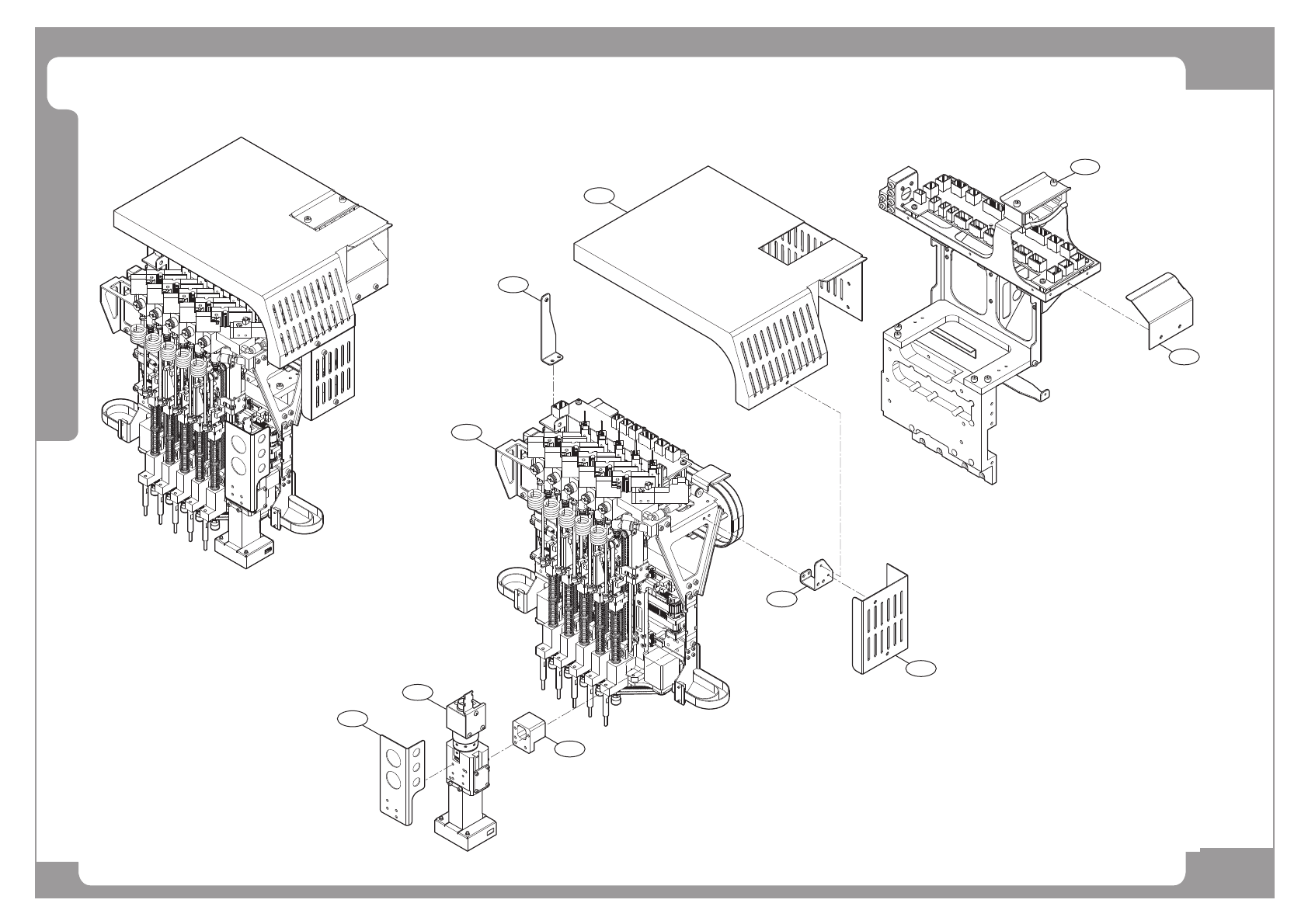

SAMSUNG TECHWIN
34
SLM120/110
Head Ass’y (3/12)
7
8
6
5
1
2
3
4
9
10
Page
SAMSUNG TECHWIN
35
SLM120/110
Head Ass’y (3/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J71551903A
HEAD_BKT_COVER_R J71551903A
1
2 J71551907A
FID_BRACKET_R J71551907A
1
3 J71551902A
FRONT_COVER_R J71551902A
1
4 J70551970A
COVER_FIX_BKT_4 J70551970A
1
5 J91851121A
AP5_08_FIDUCIA_LENS_ASSY
1
6 AM03-000606A
ASSY,HEAD-AP5 HEAD ASSY
1
7 J71551904A
HEAD_COVER_R J71551904A
1
8 J70551971A
COVER_FIX_BKT_5 J70551971A
1
9 FC09-002423A
BRACKET-FID_CAM_COVER_2
1
10
Page

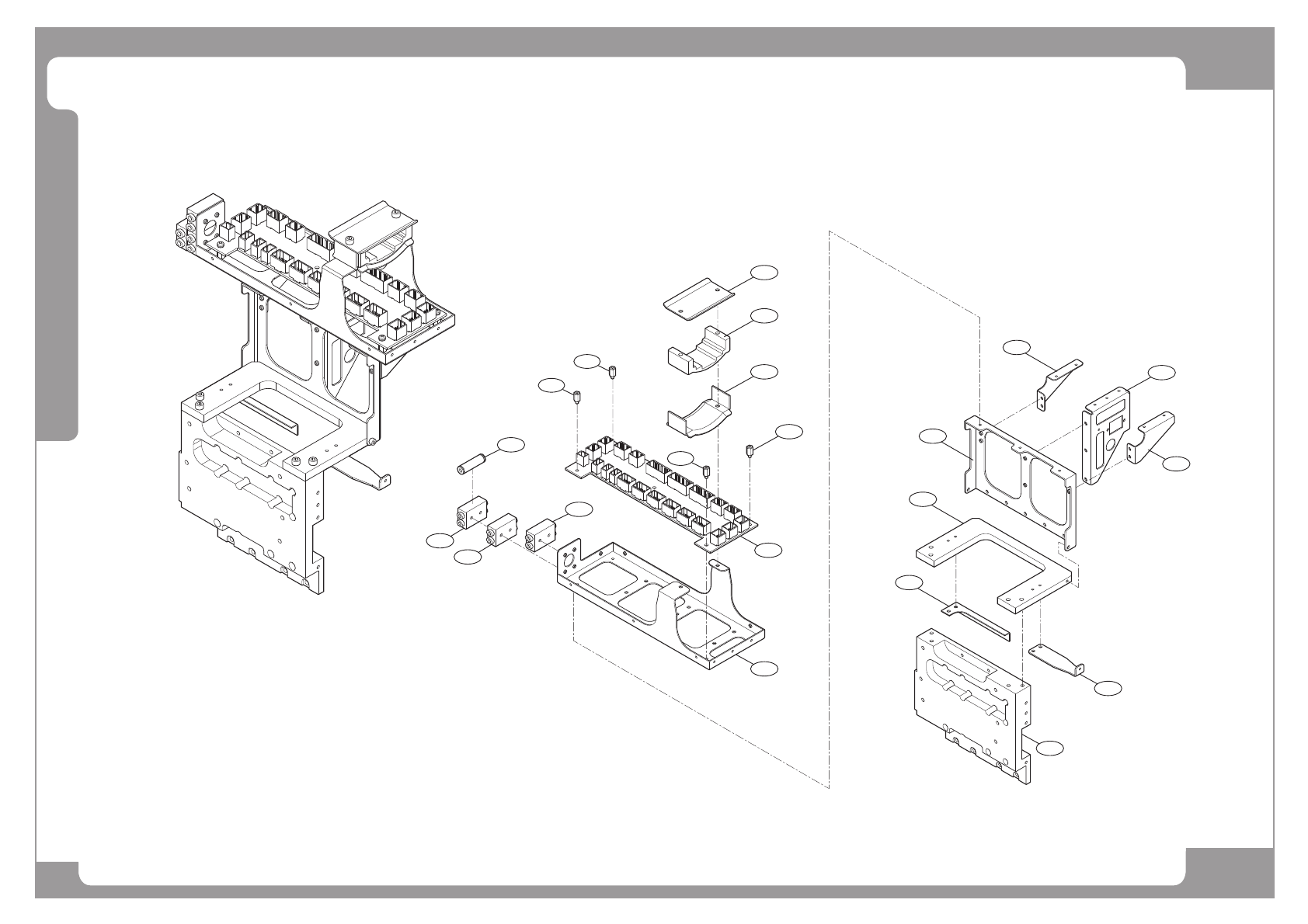

SAMSUNG TECHWIN
36
SLM120/110
Head Ass’y (4/12)
4
11
6
8
1
9
14
13
12
7
2
13
13
16
5
10
3
15
12
12
12
