Page SAMSUNG TECHWIN 45 SLM120/110 H ead Ass’y (7/12) No. LEVEL P ART No. P ART NAME Q'TY T YPE Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
44
SLM120/110
Head Ass’y (7/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
26 EP08-000008
MOTOR,SERVO;AC SERVO,ET1:ETC.
1
27 J71551883A
L_PITCH_PULLEY J71551883A
1
28 J66021181A
TIMING_BELT 426-2GT-9
1
29 J66021180A
TIMING_BELT 448-2GT-9
1
30 J71551833A
L_IDLER_PULLEY J71551833A
1
31 J66121054A
COUPLING SRB_22C_DIA6.35XDIA8
1
32 J71551835A
S_IDLER_PULLEY J71551835A
1
33 SOCKET SET SCREW M3*3 6
Page
SAMSUNG TECHWIN
45
SLM120/110
Head Ass’y (7/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
46
SLM120/110

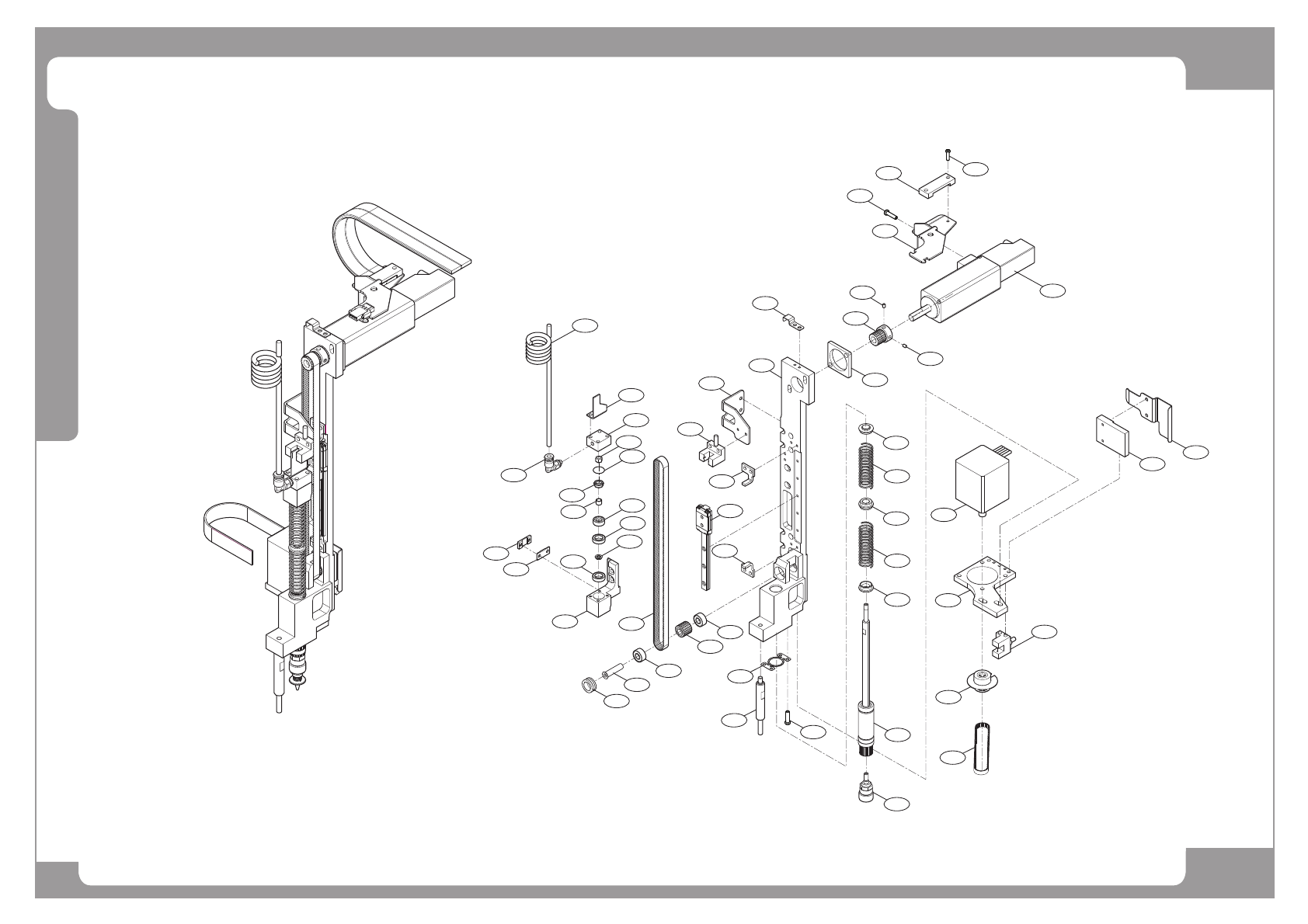

Head Ass’y (8/12)
24
2
48
39
44
31
30
17
33
35
50
6
40
46
14
26
32
3
9
44
45
29
10
1
42
34
47
11
19
4
43
21
12
41
20
48
5
23
22
38
25
25
16
13
15
15
8
18
7
51
27
36
28
37
