SAMSUNG TECHWIN
52
SLM120/110
Head Ass’y (9/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
26 J72551121A
SPRING_TOP_BASE J72551121A
1
27 J72551122A
Z_CABLE_CLAMP J72551122A
1
28 J6601140A BEARING 2
29 J70551419A
LOCK_NUT_Z_2 J70551419A
1
30 J7055141A STEEL_BALL 3
31 J70551452A
Z_SPACER J70551452A
1
32 J71551846A
Z_CAP J71551846A
1
33 J71551836A
T_MOTOR_BRACKET2 J71551836A
1
34 J71551888A
Z_CABLE_BKT_2 J71551888A
1
35 J7255021B
SILICON TUBE(BLACK ??) [J7255021B]
1
36 J63091016A
Y_PACKING KSYN-4
1
37 J71551848A
Z_IDLER_PULLEY J71551848A
1
38 J3212027A
MICRO PHOTO SENSOR[PM-L24]
1
39 J66071154A
LM_GUIDE SEBS5BYUU1-70P
1
40 J31081047A
SERVO_MOTOR P50B02002AXH2R
1
41 J66021183A
TIMING_BELT 129-1.5GT-3
1
42 J66021202A
TIMING_BELT 279-1.5GT-5
1
43 J66011045A
BALL_BEARING 693ZZ
2
44 J67111230A
FITTING PL3-M3M
1
45 J32121021A
MICRO_PHOTO_SENSOR PM-F24
1
46 EP08-000007
MOTOR,STEP;5 PHASE,ET1:ETC.
1
Page
SAMSUNG TECHWIN
53
SLM120/110
Head Ass’y (9/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
54
SLM120/110

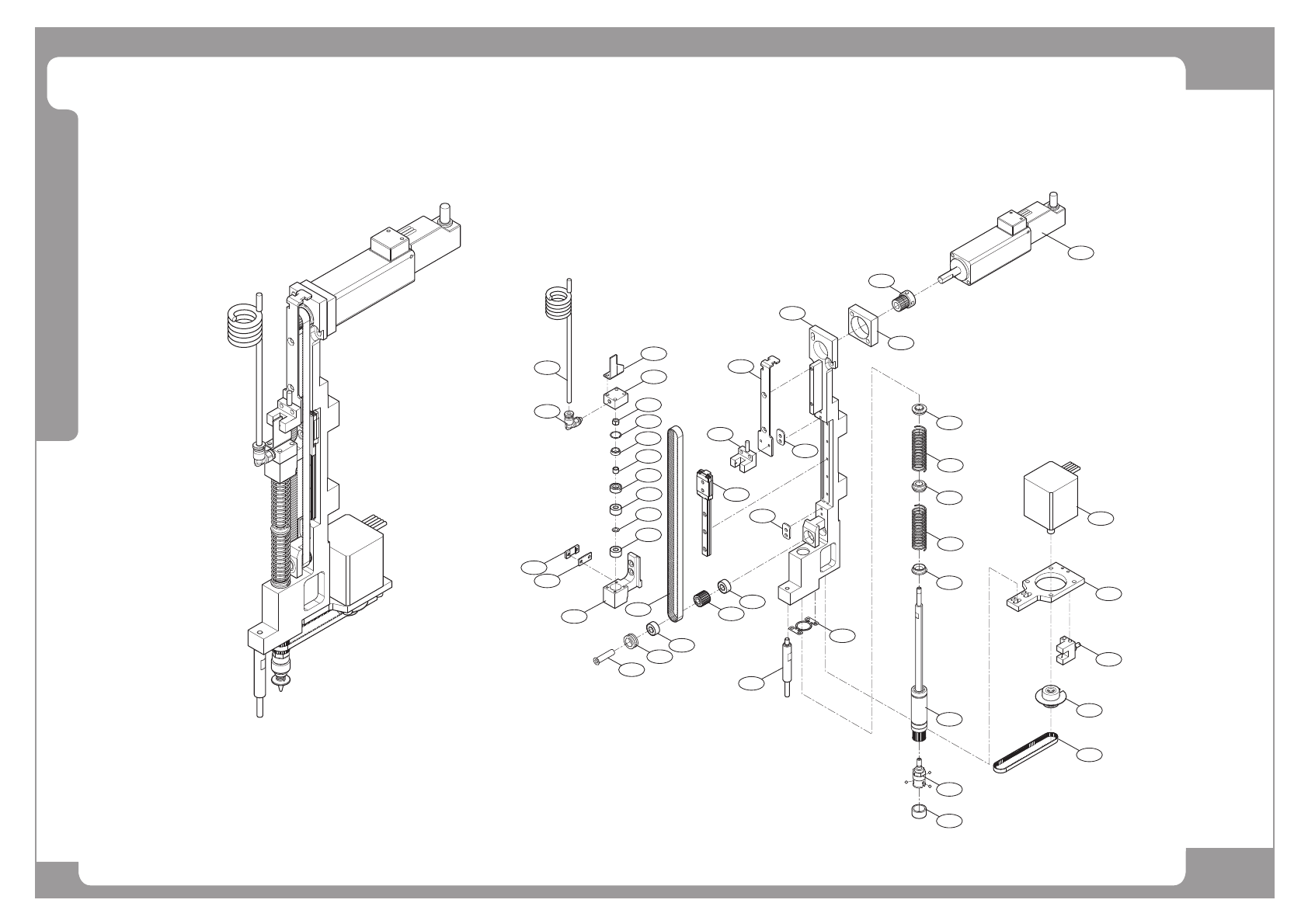

Head Ass’y (10/12)
2
28
35
19
22
21
15
15
5
40
1
36
29
39
7
25
30
20
10
18
4
37
11
34
17
23
23
32
16
12
13
33
6
38
17
41
41
26
8
9
3
24
27
14
31
