Page SAMSUNG TECHWIN 57 SLM120/110 H ead Ass’y (10/12) No. LEVEL P ART No. P ART NAME Q'TY T YPE Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
56
SLM120/110
Head Ass’y (10/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
26 J70551452A
Z_SPACER J70551452A
1
27 J71551846A
Z_CAP J71551846A
1
28 J71551825A
SPINDLE_HOUSING3 J71551825A
1
29 J71551863A
T_MOTOR_BRACKET_3 J71551863A
1
30 J7255021B
SILICON TUBE(BLACK ??) [J7255021B]
1
31 J63091016A
Y_PACKING KSYN-4
1
32 J71551848A
Z_IDLER_PULLEY J71551848A
1
33 J3212027A
MICRO PHOTO SENSOR[PM-L24]
1
34 J66071154A
LM_GUIDE SEBS5BYUU1-70P
1
35 J31081047A
SERVO_MOTOR P50B02002AXH2R
1
36 J66021183A
TIMING_BELT 129-1.5GT-3
1
37 J66021203A
TIMING_BELT 339-1.5GT-5
1
38 J67111230A
FITTING PL3-M3M
1
39 J32121021A
MICRO_PHOTO_SENSOR PM-F24
1
40 EP08-000007
MOTOR,STEP;5 PHASE,ET1:ETC.
1
41 J66011045A
BALL_BEARING 693ZZ
2
Page
SAMSUNG TECHWIN
57
SLM120/110
Head Ass’y (10/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
58
SLM120/110

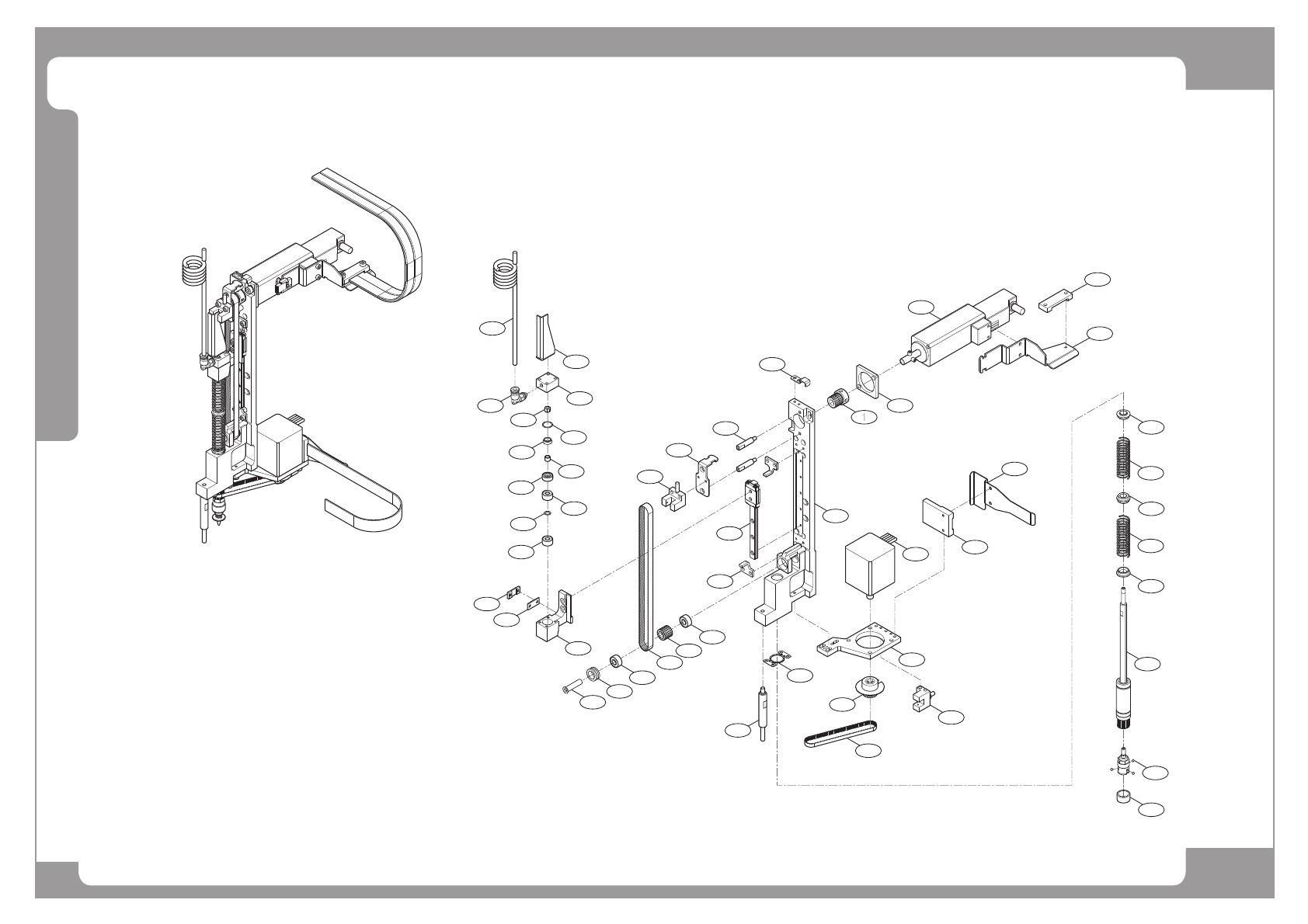

Head Ass’y (11/12)
36
31
2
6
15
15
26
27
25
28
20
18
47
16
39
13
23
21
34
46
35
45
11
29
9
41
4
33
14
38
43
17
29
12
5
42
1
24
3
40
22
10
41
32
8
30
44
7
19
37
