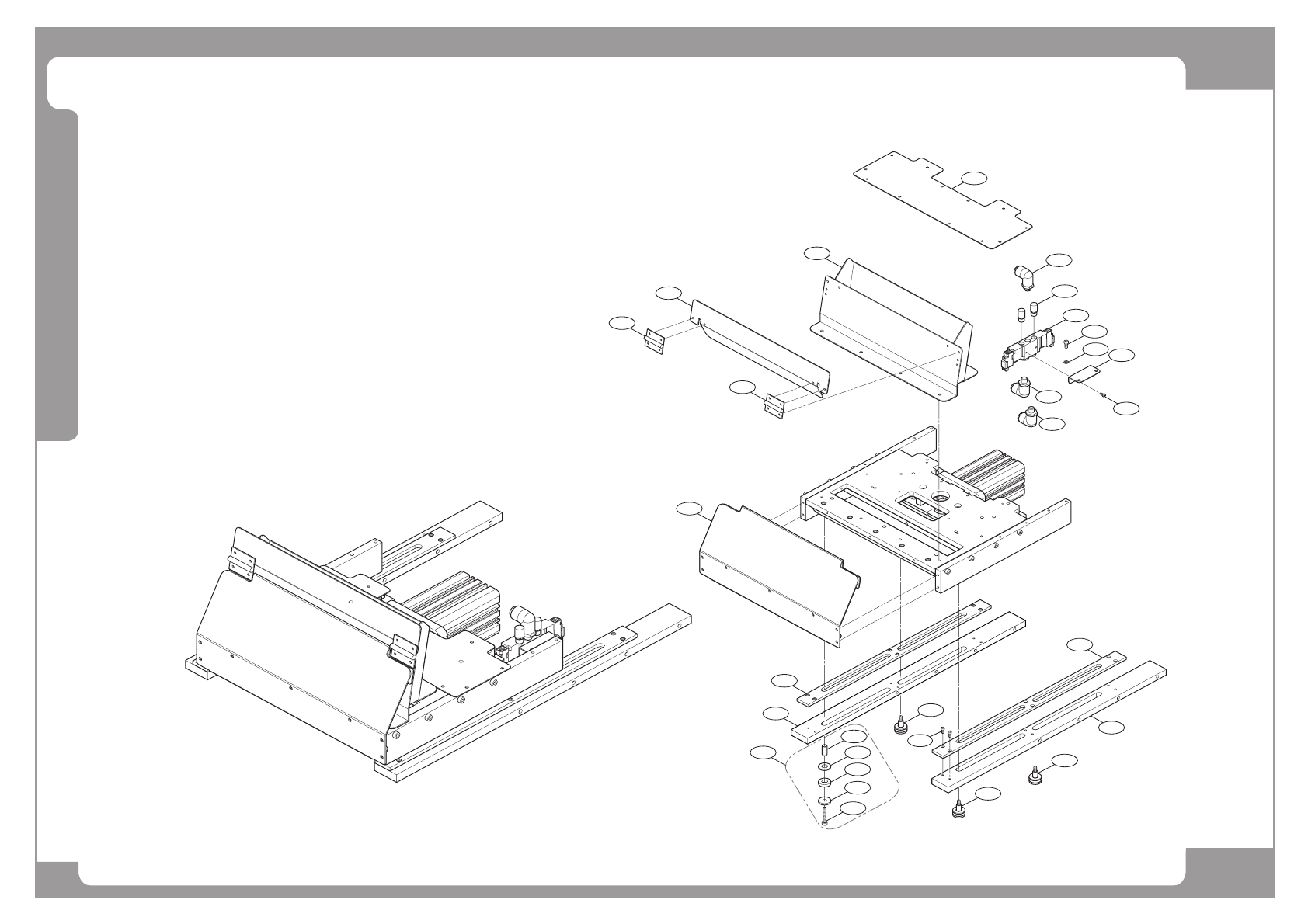

Cutter Ass’y (1/2)
19
1
5
6
10
10
7
8
3
A
3
8
8
12
12
2
4
9
A
A
A
14
15
16
18
17
11
13
12
Page
SAMSUNG TECHWIN
67
SLM120/110
Cutter Ass’y (1/2)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J70653599A
SC_CUTTER_TOP_COVER J70653599A
1
2 J70653600A
SC_CUTTER_VALVE_BKT J70653600A
1
3 J70653606A SC CUTTER SUPPORT REAR 1
4
5 J70653810A
SC-TAPE_GUIDE_FRONT_UPPER J70653810A
1
6 J70653809A SC CUTTER TAPE GUIDE COVER 1
7 J70653811A
SC_CUTTER_TAPE_GUIDE J70653811A
1
8 J1300682
SEMUS NABE SCREW[M3*8 (???)]
2
9
10 J61081019A
HINGE KH-1061-2
2
11 J67021060A
SOL_VALVE DV3220-5V-01
1
12 J67111180A
AIR_FITTING SQL06-01S-W
3
13 J67051013A
SILENCER SN101-01
2
14 J70653920A
AP5_CUTTER_SUPPORT_BUSH J70653920A
4
15 J70791035A
FRAME_FIX_WASHER_2 J70791035A
4
16 J63091002A
URETHANE_WASHERS URWS20-10-5
4
17 J70791042A
FRAME_FIX_WASHER_1 J70791042A
4
18 SHCS[M6*50] 4
