Cutter Ass’y (2/2)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J70653595A
SC_CUTTER_SPRING_SHAFT J70653595A
2
2 FC10-000006A
BUMPER-CUTTER BLADE;PA10:rubber
2
3 J70653704A
SC_CUTTER_NIPPLE_BKT J70653704A
2
4 J70541105A
GREASE_NIPPLE_NUT J70541105A
2
5 J70653589A SC_CUTTER_TOP_PLATE 1
6 J70653590A
SC_CUTTER_SIDE_BASE J70653590A
2
7 J70653591A SC_CUTTER_MOVING_BLADE_BASE 1
8 J70653592A
SC_CUTTER_MOVING_BLADE_FIXER J70653592A
1
9 J70653593A
SC_CUTTER_CYLINDER_BKT1 J70653593A
1
10 J70653594A
SC_CUTTER_CYLINDER_BKT2 J70653594A
2
11 J70653596A
SC_CUTTER_TAPE_CLAMP_FIXER J70653596A
1
12 J70653598A SC_CUTTER_OUTLET_GUIDE2 2
13 J70653602A
SC_CUTTER_FIX_BLADE J70653602A
1
14 J70653603A
SC_CUTTER_MOVING_BLADE J70653603A
3
15 J71651847A
SC_CUTTER_SPRING_STAND J71651847A
2
16 J6719025A
GREASE NIPPLE [M6*1.0-STRAIGHT]
2
17 J67011113A
CYLINDER;cylinder,5bar,60,ETC,50
1
18 SHCS[M6*115] 4
19 J67111016A
STRAIGHT_FITTING KQ2H04-M6
2
20 J1301355
SHOULDER BOLT [MSB10-15]
1
21 J61071111A
WIRE_SPRINGS WL10-60
2
22 J67031023A
SPEED_CONTROLLER PFC22-06-1/8
2
23 J1300112
BALL BUSH LM6UU
2
24 J61191031A
ROD_END-NOS_10T-THK NOS-10T
1
25 SHCS[M6*20] 5
Page
SAMSUNG TECHWIN
70
SLM120/110

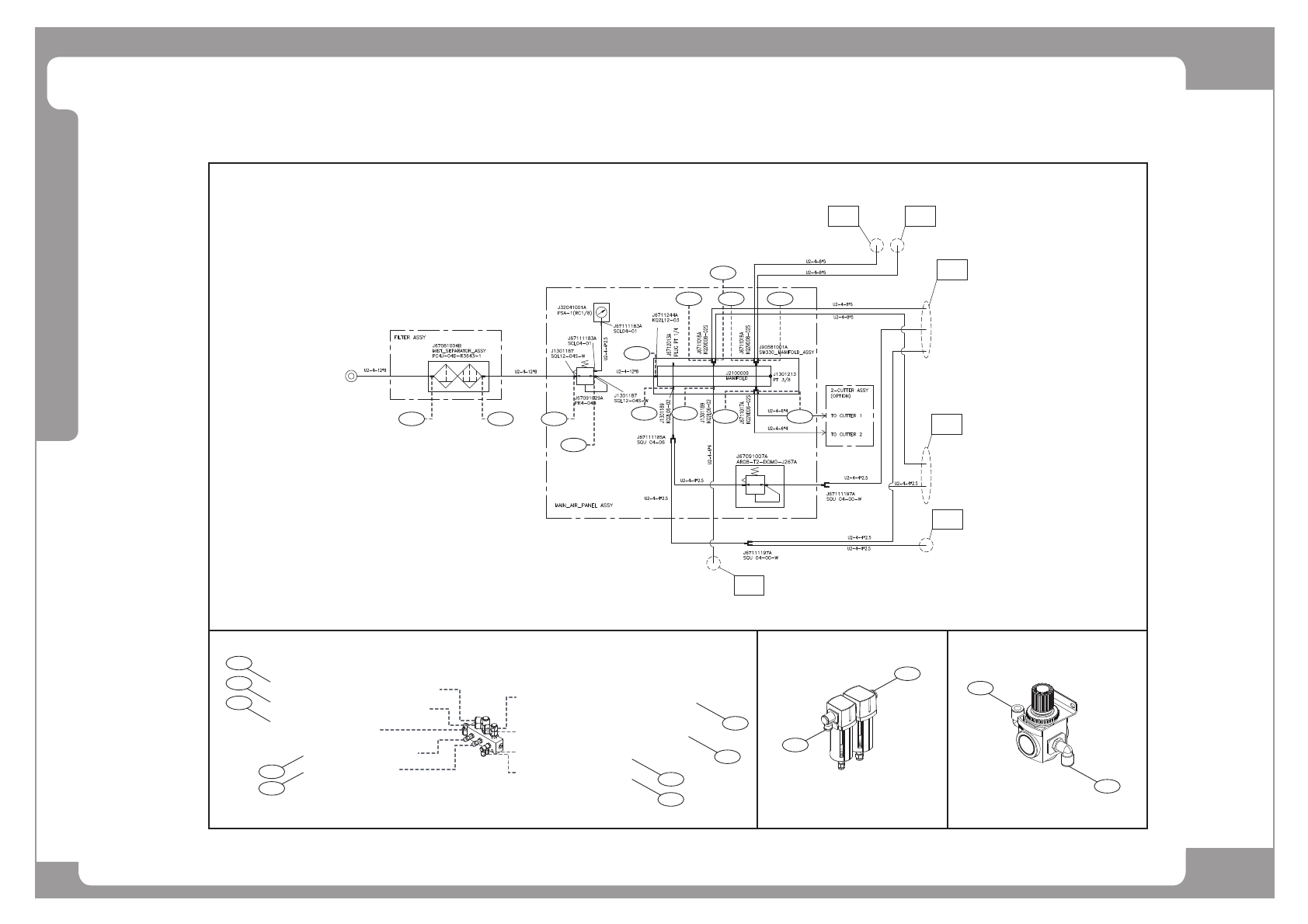

Air Ass’y (1/6)
㜤
䍠⮹
C
A D
B
C1 C2
D1
D2
D3
B
Page
SAMSUNG TECHWIN
71
SLM120/110
Air Ass’y (2/6)
10
10
11
11
3
1
2
5
2 5
10 10 11
11
1
9 8
3 6
4
7
Right Gantry Air Module
Left Gantry Air Module
Main Regulator
Head Regulator
Feeder Base
Cutter-2 (Option)
Cutter-1 (Option)
Conveyor Right Sol. Valve
Conveyor Left Sol. Valve
4
9
8
7
6
B
D3
D2
D1
C1 C2
