Page SAMSUNG TECHWIN 79 SLM120/110 M oving Frame Ass’y (1/4) No. LEVEL P ART No. P ART NAME Q'TY T YPE Old No. Stock Apply Reference A J90541087A BALL_SCREW_MODULE J9054 1087A 1 1 J6601 1017A SUPPORT_UNIT FK12-MP5 1…
Page
SAMSUNG TECHWIN
78
SLM120/110

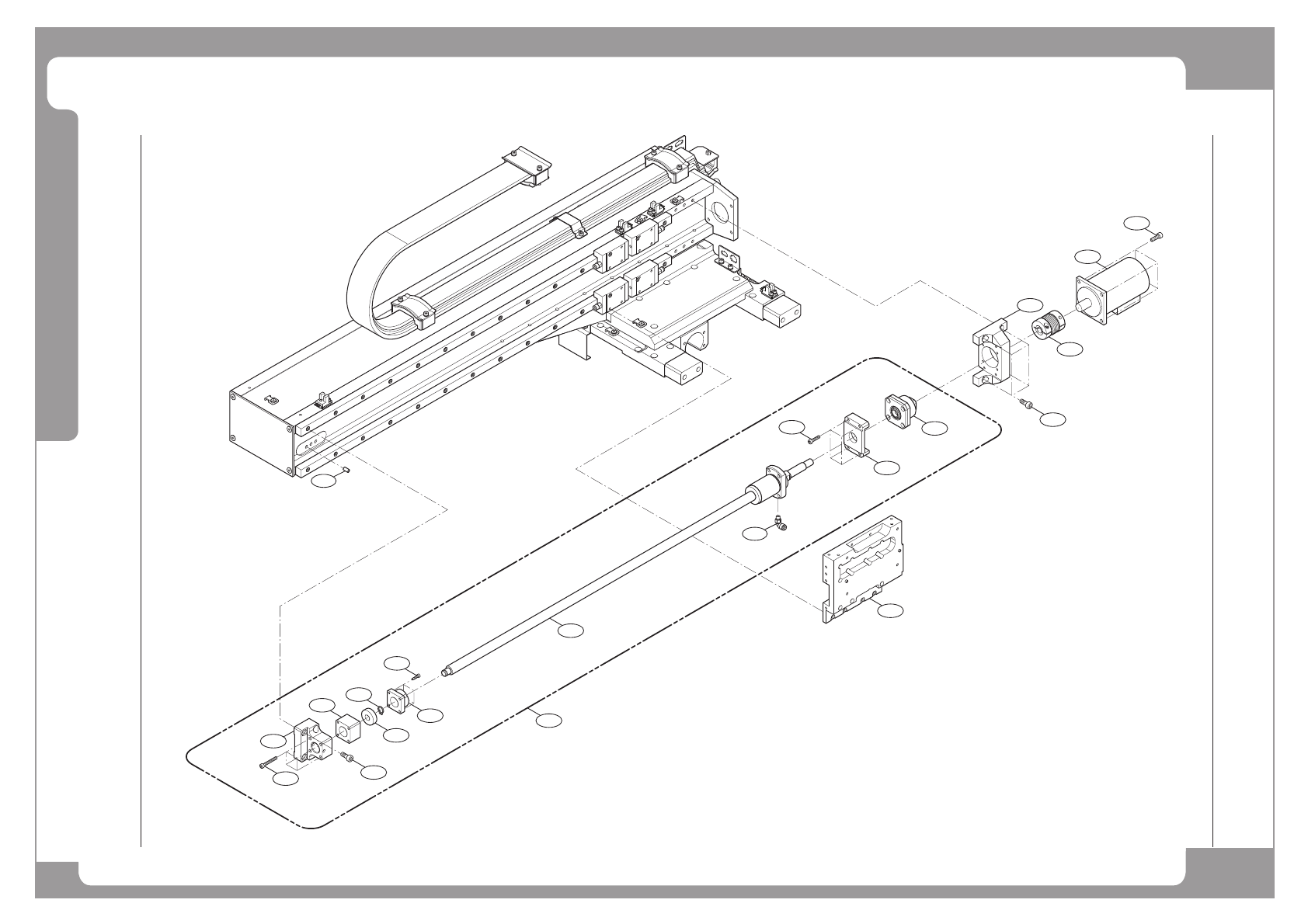

Moving Frame Ass’y (1/4)
6
5
7
9
17
15
3
2
10
12
1
8
16
4
11
0
A
13
14
0
18
Page
SAMSUNG TECHWIN
79
SLM120/110
Moving Frame Ass’y (1/4)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A J90541087A
BALL_SCREW_MODULE J90541087A
1
1 J66011017A
SUPPORT_UNIT FK12-MP5
1
2 J66061072A
BALL_SCREW WGF1530S_3GT_805.6LC5
1
3 J73541015A
CUSHION_X_REAR J73541015A
1
4 J71541337A Y_BEARING_SUPPORT 1
5 J71541225A
BRG_HOUSING_X2 J71541225A
1
6 J71541224A
BRG_SUPPORT_X J71541224A
1
7 J1300417 C-RING 1
8 J66121025A COUPLING 1
9 J6601008A BALL BEARING 1
10 J71541342A HEAD_CARRIER_G1 1
11 EP08-00011 SERVO_MOTOR 1
12 J72541003A
CUSHION_X_FRONT J72541003A
1
13 SHCS[M3*12] 4
14 SHCS[M4*25][C/W] 4
15 SHCS[M4*30] 4
16 SHCS[M6*15] 4
17 SHCS[M6*20] 4
18 J6061501036 DOWER_PIN[MS5-10] 6
Page
SAMSUNG TECHWIN
80
SLM120/110
Moving Frame Ass’y (2/4)
6
6
19
28
29
22
0
21
18
10
16
22
22
0
22
22
0
22
0
0
19
21
28
29
27
0
0
0
22
0
12
14
3
0
0
0
22
0
22
0
A
22
20
4
1
22
7
11
2
0
30
2
23
0
32
26
25
31
A
0
0
31
9
15
17
5
13
8
A
24
25
26
25
26
33
27
27
