Page SAMSUNG TECHWIN 85 SLM120/110 M oving Frame Ass’y (3/4) No. LEVEL P ART No. P ART NAME Q'TY TYPE Old No. Stock Apply Reference A J90541087A BALL_SCREW_MODULE J905410 87A 1 1 J6601 1017A SUPPORT_UNIT FK12-MP5 1 …
Page
SAMSUNG TECHWIN
84
SLM120/110
Moving Frame Ass’y (3/4)
9
5
1
12
11
4
18
7
16
13
14
2
6
18
15
10
8
3
A
0
13
0
17
19
Page
SAMSUNG TECHWIN
85
SLM120/110
Moving Frame Ass’y (3/4)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A J90541087A
BALL_SCREW_MODULE J90541087A
1
1 J66011017A
SUPPORT_UNIT FK12-MP5
1
2 J66061072A
BALL_SCREW WGF1530S_3GT_805.6LC5
1
3 J73541015A
CUSHION_X_REAR J73541015A
1
4 FC11-000002A
CARRIER-HEAD_G2;ME6:Aluminum
1
5 J71541337A Y_BEARING_SUPPORT 1
6 J71541225A
BRG_HOUSING_X2 J71541225A
1
7 J71541224A
BRG_SUPPORT_X J71541224A
1
8 J1300417 C-RING 1
9 J66121025A COUPLING 1
10 J6601008A
BALL BEARING
1
11 EP08-00011 SERVO_MOTOR 1
12 J72541003A CUSHION_X_FRONT 1
13 J6061301000
CUSHION_X_FRONT J72541003A
2
14 SHCS[M4*10] 4
15 SHCS[M3*12] 4
16 SHCS[M4*25] 4
17 SHCS[M4*30] 4
18 J6061501036 DOWER_PIN[MS5-10] 6
19 SHCS[M6*20] 6
Page
SAMSUNG TECHWIN
86
SLM120/110

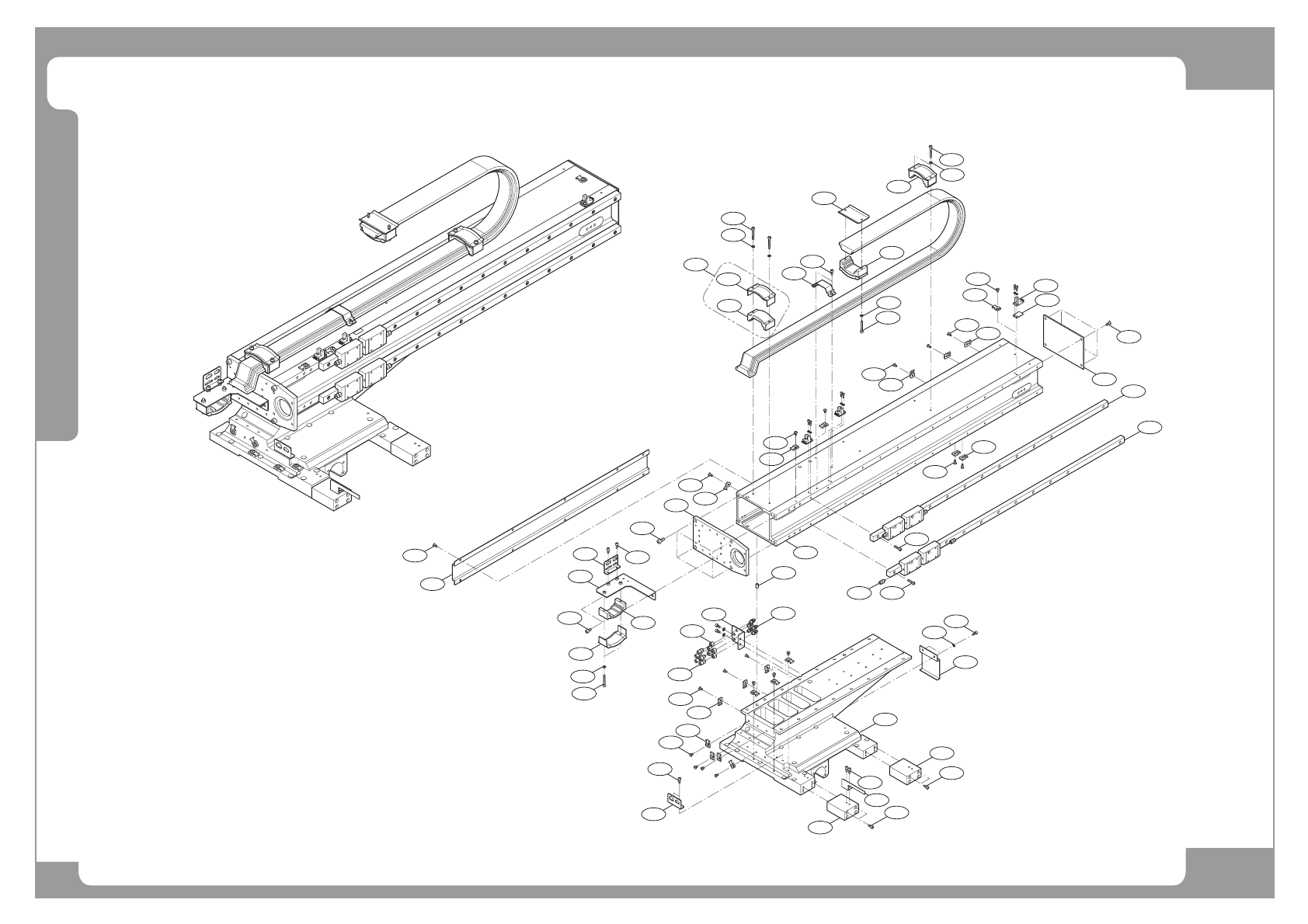

Moving Frame Ass’y (4/4)
1
28
27
10
2
28
27
2
22
A
20
23
23
33
0
17
3
30
12
8
32
32
16
8
18
14
21
23
0
26
4
23
0
7
28
27
23
0
0
330
23
0
23
0
6
26
11
24
15
29
19
9
0
0
1
5
7
13
26
25
28
A
27
23
0
A
26
26
