System Overview Version Description / Versions beschreibung SIPLACE Setup Center 5.1 35 2 System Overview The SIPLACE Setup Center package comprises the following subsys tems : ▪ Setup Center GUI ▪ Setup Center Database …

Introduction

Recommendation

34 Version Description / Versionsbeschreibung SIPLACE Setup Center 5.1

1.1 Recommendation

For a temporary operation (e. g. during an upgrade) it is possible to use different Setup Center GUI ver

sions.

NOTICE

New functions

The new functions are not available in the old Setup Center GUIs.

System Overview

Version Description / Versionsbeschreibung SIPLACE Setup Center 5.1 35

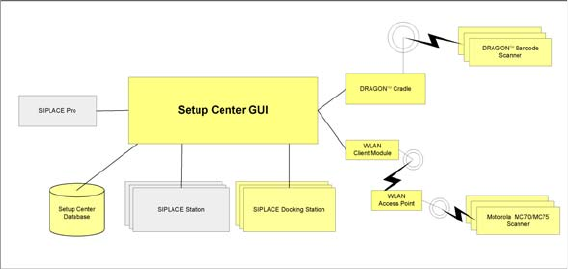

2 System Overview

The SIPLACE Setup Center package comprises the following subsystems:

▪ Setup Center GUI

▪ Setup Center Database

▪ Barcode scanner

▪ Docking Station

SIPLACE Setup Center loads the target setup from SIPLACE Pro. After the download of a recipe at the

line, Setup Center automatically loads target setup during online setup verification. In the case of offline

setup verification, the operator selects the target setup manually.

During setup verification, packaging unit data are recorded via the barcode scanner, then checked

against the currently loaded target setup and finally stored in the Setup Center database. During the pro

cess of forced setup verification, the setup verification data is transferred to the machine.

System Overview

36 Version Description / Versionsbeschreibung SIPLACE Setup Center 5.1
