New Functions in Setup Center 5.1
Domain-Wide Settings Supported
Version Description / Versionsbeschreibung SIPLACE Setup Center 5.1 43
5 New Functions in Setup Center 5.1
5.1 Domain-Wide Settings Supported
Purpose
If multiple Setup Center applications are connected to a domain, you can define global settings which
are then applied for all Setup Center applications. If these domain-wide settings are defined for one Set
-
up Center application, they can not be changed at the other Setup Center applications. The changed
settings are not activated until they have been confirmed.
Function

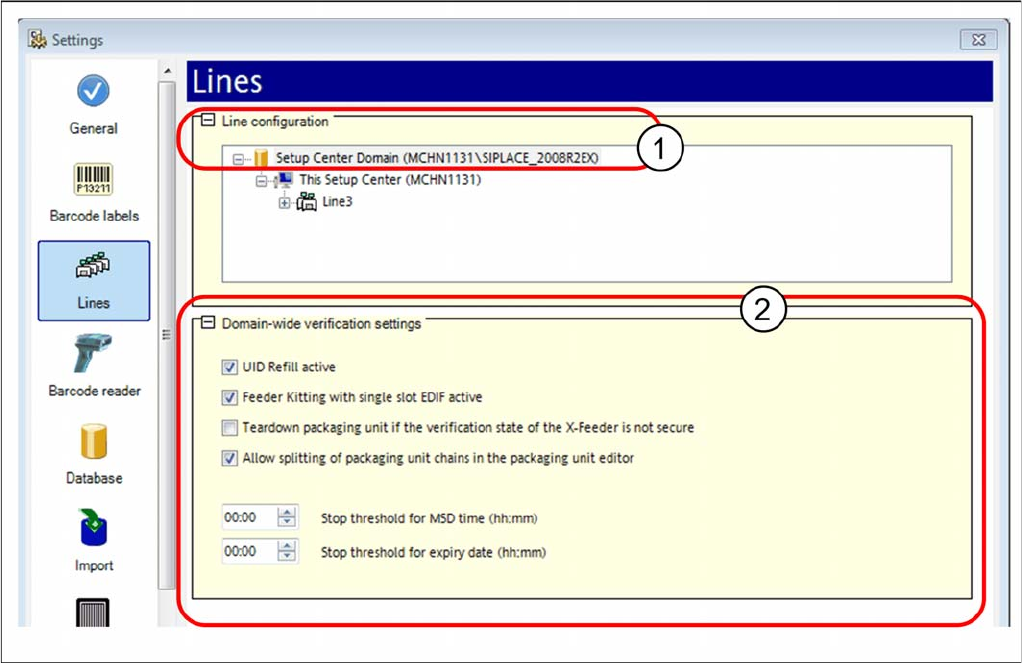

► Open at Extras => Settings => Line configuration. If the domain is marked (1), the Domain-Wide Ver
-
ification Settings view (2) will open.
► For detailed information, refer to the user manual "Setup Center 5.1" or the Online Help.
New Functions in Setup Center 5.1
Domain-Wide Settings Supported Refilling with UID Permitted
44 Version Description / Versionsbeschreibung SIPLACE Setup Center 5.1
5.1.1 Refilling with UID Permitted
Purpose
Simplified refilling of unique packaging unit IDs is permitted. During refilling, you only need to select the
function "Refill Packaging Unit" in the scanner menu and then scan in the Packaging ID for the previous
reel, followed by the Packaging ID for the next reel. This simplified refilling can be used universally, in
the pre-setup area as well as on the line and you can even generate packaging unit chains in the ware
-
house area.
Function
► Open at Extras => Settings => Line configuration. If the domain is marked, the Domain-Wide Verifi
-
cation Settings view will open.
► Enable the option UID refill enabled.
5.1.2 Feeder Kitting on Single Slot EDIF Permitted
Purpose
Permits feeder kitting in the single slot EDIF. The packaging unit-feeder relation is formed during feeder
kitting with the single slot EDIF, by scanning in the feeder ID and the packaging unit data.
Function
► Open at Extras => Settings => Line configuration. If the domain is marked, the Domain-Wide Verifi
-
cation Settings view will open.
► Enable the option Feeder kitting enabled on single-slot EDIF.
► For detailed information, refer to the user manual "Setup Center 5.1" or the Online Help.
New Functions in Setup Center 5.1
Prevent Manipulation of Tape Material Domain-Wide Settings Supported
Version Description / Versionsbeschreibung SIPLACE Setup Center 5.1 45
5.1.3 Prevent Manipulation of Tape Material
Purpose
The information about which material is configured on a feeder is saved in the Setup Center database.
This information is then used for setup verification. If the feeder detects a potential manipulation, which
could lead to the tape having been replaced, the feeder will change over to "unreliable" mode. If the feed
-
er is then used, Setup Center will recognize this state and will delete the saved data and it will need to
be scanned in again.
This prevents subsequent and unintentional configuration of an incorrect packaging unit (e.g. during set
-
up with single slot EDIF).
Function
► Open at Extras => Settings => Line configuration. If the domain is marked, the Domain-Wide Verifi
-
cation Settings view will open.
► Enable the option Tear down the packaging unit if the verification status of the X-feeder is unreliable.
5.1.4 Permit Packaging Unit Chains to be Split in the Packaging Unit Editor
The function for separating the packaging unit can be enabled or disabled. The icon for cutting
the packaging unit will then be displayed or hidden accordingly in the Packaging Unit Editor.
Function
► Open at Extras => Settings => Line configuration. If the domain is marked, the Domain-Wide Verifi
-
cation Settings view will open.
► Enable or disable the option Permit packaging unit chains to be split in the packaging unit editor.
WARNING
Minimum station software requirement essential at all machines
All machines which are checked by Setup Center must have at least station software 706.01 or
605.03 SP3 installed.
WARNING
Recommended activation strategy
If the function Tear down the packaging unit if the verification status of the X-feeder is unreliable
has been switched on, all setups which have already been verified (online and offline) are ini
-
tially unreliable and will need to be reverified.
➢ We therefore recommend that you first make sure all stations fulfil the minimum software
requirements and that you then, after a certain period (around 4 weeks) enable this func
-
tion in Setup Center.
► This ensures that most packaging unit-feeder relations will have reached a reliable state so
that only a minimum of these relations will be canceled when the function is enabled.
