Service Engineer
Service Information
SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
14/60
4.5. How to adjust the “brightness” of each camera
4.5.1. How to adjust the “brightness” of the fiducial camera
When the machine is equipped with two fiducial cameras (option), please perform adjustment for
both cameras. The “Black level” adjustment does not need to be performed.
(The “Black level” adjustment needs to be performed only when the camera is replaced.)
<Required tools>
Part No. Part Name Size Feature
KM1-M8806-0** LIGHT ADJUSTER
35mm
square
Dark and light gray + white
KM1-M8806-1** LIGHT ADJUSTER 1
35mm
square
Dark and light gray + white,
with a Φ3 hole
KGT-M8806-0** LIGHT ADJUSTER S
17mm
square
Light gray and white
KHW-M8806-*** LIGHT ADJ.*(1,S, 3,4) ASSY
35mm
square
Dark and light gray + white,
with one chamfered corner
Table 7
[How to secure the tool for “brightness” adjustment]
1. Raise the pushup plate.
Click on the [Push Up] button on the “Conveyor” tab on the “Unit” screen in order to raise the
pushup plate.
Thickness of the board: Input 4.0mm in the “Thickness” field.
2. Set the pushup pins.
Set three pushup pins so that the tool for brightness adjustment can be placed on them.
3. Place the tool for brightness adjustment on the pushup pins with its gray side facing upward.
If the tool is not parallel, please check if the height of the pushup pins is even.
Figure 15
4. Perform teaching for the gray part of the tool.
Move the head so that the light gray part of the tool fills the screen of the fiducial camera.
*If the scan camera is under the fiducial camera, move it to the left.
5. Click on the [Fiducial Camera] button on the main screen of CalibSm.
Select “Lightness” from the “Adjust Item”.
Service Engineer
Service Information
SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
15/60

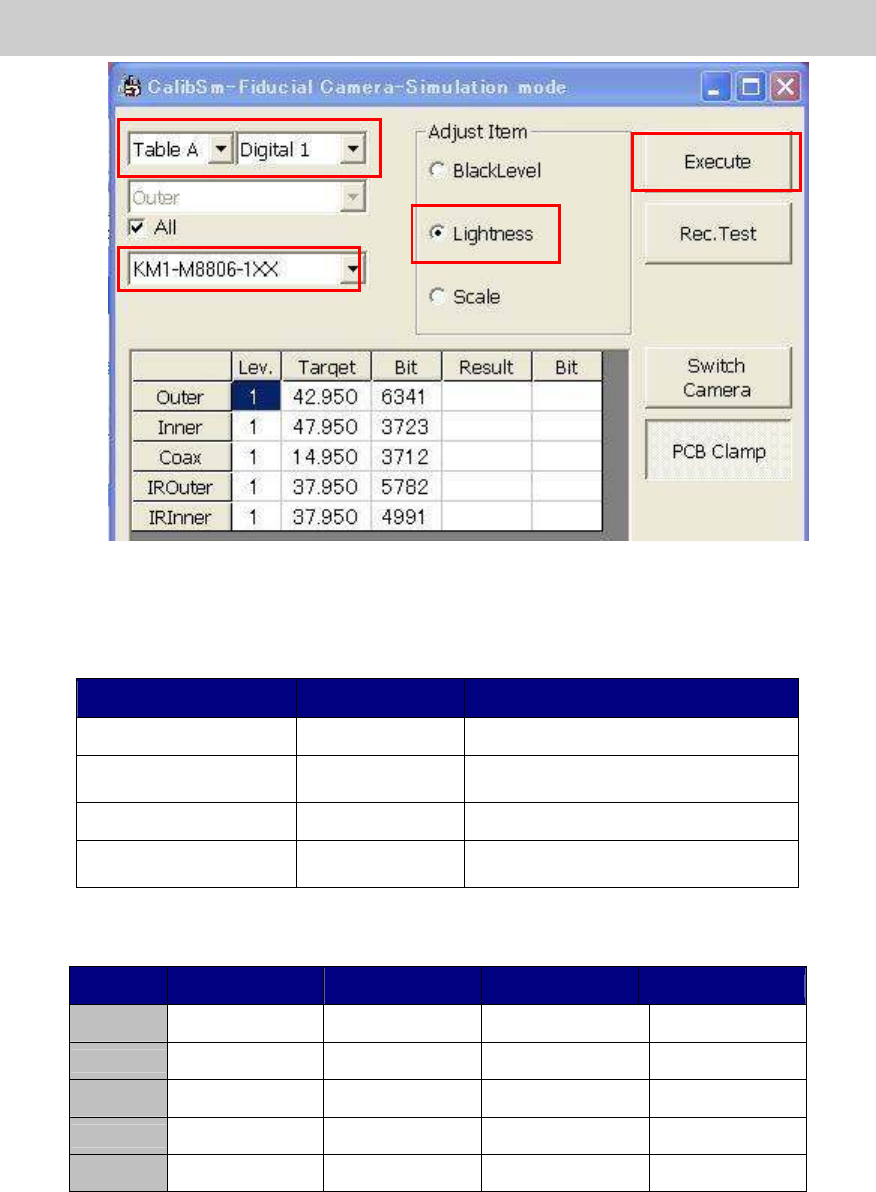

Figure 16
6. Select the tool for brightness adjustment.
Select the part number of the tool to be used for the adjustment.
Part No. Size Feature
KM1-M8806-0** 35mm square Dark and light gray + white
KM1-M8806-1** 35mm square
Dark and light gray + white,
with a Φ3 hole
KGT-M8806-0** 17mm square Light gray and white
KHW-M8806-*** 35mm square
Dark and light gray + white,
with one chamfered corner
Table 8
* The target value varies depends on the tools to be used.
Tool KM1-M8806-0XX
KM1-M8806-1XX
KGT-M8806-0XX
KHW-M8806-XXX
Outer 35 35 35 35
Inner 40 40 40 44
Coax 7 7 7 8
IR Outer
35 30 30 31
IR Outer
35 30 30 33
Table 9
* The value that the black level value is added to the set target value is displayed as “Target”
value.
6
7
5
Service Engineer
Service Information
SI0804004E-000 = YS12, YG12: Procedure for adjustment after installation of the machine
16/60

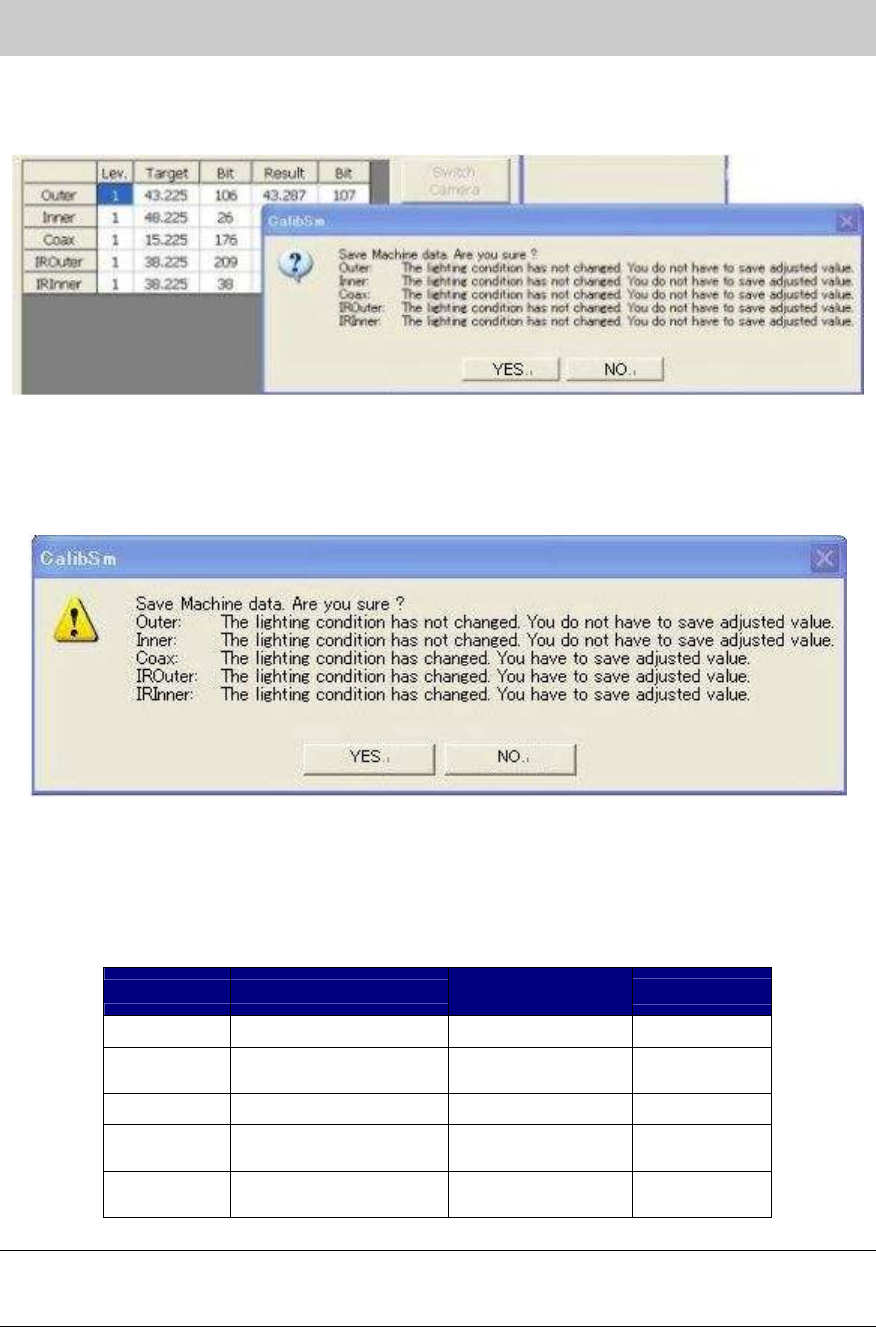

7. Click on the [Execute] button.
If you click on the [Execute] button, the adjustment of the brightness is automatically
performed.
Figure 17
Check if the values in the “Target” and “Bit” fields fall within the specification, and save the data.
[The dialog box indicating that the data needs to be saved]
Figure 18
8. Click on the [Rec.Test] button.
Click on the [Rec.Test] button to perform recognition test and check if the measured values
fall within the tolerance.
If the values fall within the tolerance, please fill in the value on the check sheet.
Target value
Tolerance of the
measured value
Ｂｉｔ
ＢｉｔＢｉｔ
Ｂｉｔ value
Outer 35+ Black level value Target value+-2 0 -16128
Inner
40(44)+
Black level value
Target value+-2 0 -16128
Coax 7(8)+ Black level value
Target value+-2 0 -16128
IR Outer
30(31)+
Black level value
Target value+-2 0 -16128
IR Outer
30(33,35)+
Black level value
Target value+-2 0 -16128
Table 10
Note:
If the Bit value does not fall within the specification, please check if the lens of the camera is clean,
if the lighting condition is good or if the connector is connected properly.
