1. Cleaning

Cleaning Kit for the Strobe Light Unit

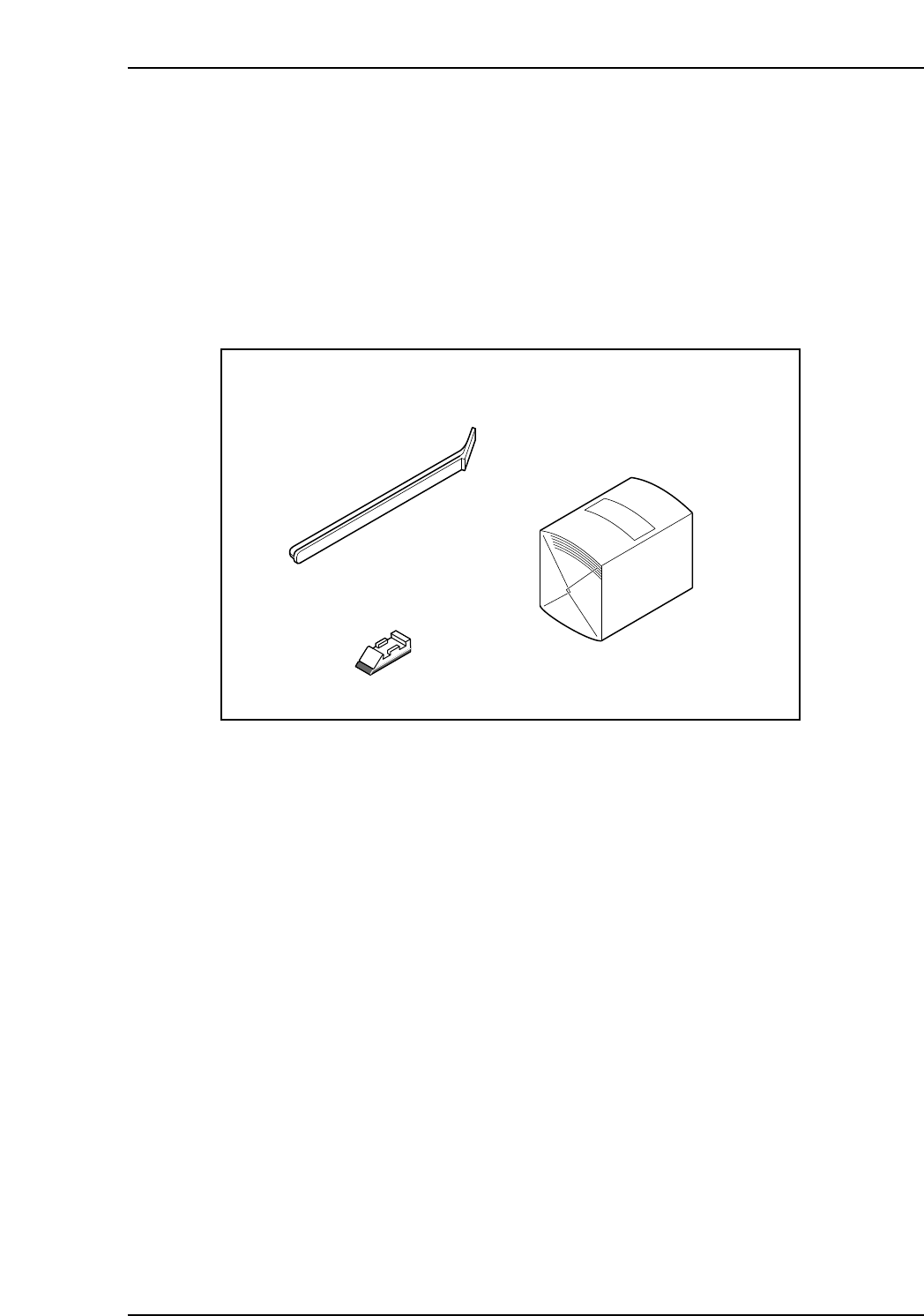

This is a kit of jigs that makes cleaning the optical components of the strobe light unit

(prism, half mirror, strobe lamp, lamp housing etc.) easier.

Part name: Cleaner

Part number: ADNPJ8010

XP1MC213E

Wiper (ADNPJ8020)

Hand (DNPJ0260)

Cleaning paper (A4565T)

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-1 XP-142E Mechanical Reference

1.1 Emptying the Waste Tape Box <if so equipped>

(Every 8 Hours)

Point

Remove tape that has built up during production in the waste tape box. This refuse must

be cleared to ensure that it does not interfere with parts feeding.

If the machine has a waste tape cutter, a function to notify the operator when the waste

tape box is full can be enabled. Refer to the XP-142E System Reference manual for

details.

Procedure

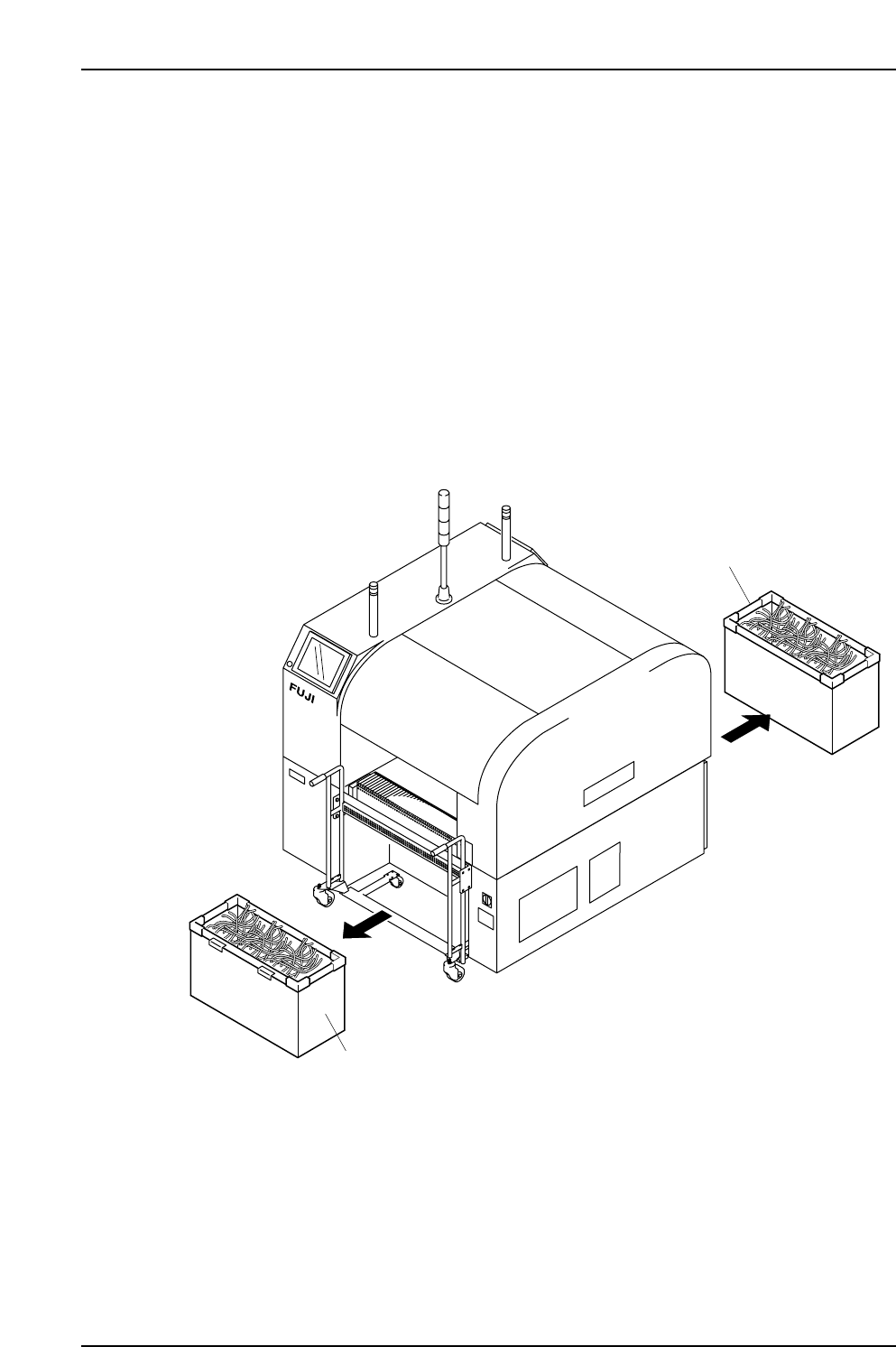

Pull the waste tape boxes out, then discard the waste tape (empty the waste tape boxes).

Note: Waste tapes should be discarded in accordance with local ordinances for handling waste

matter.

XP1MC201E

Waste tape box

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-2 XP-142E Mechanical Reference
