Part 6 Chapter 1 Leveling the Machine
Edition 3.0 6-1-2 XP-142E Mechanical Reference
2. Connecting the Air
Point
Connect the air hose to the machine and adjust the pressure regulator to the correct value
(0.5 MPa).
Note: The hose is not supplied by Fuji.

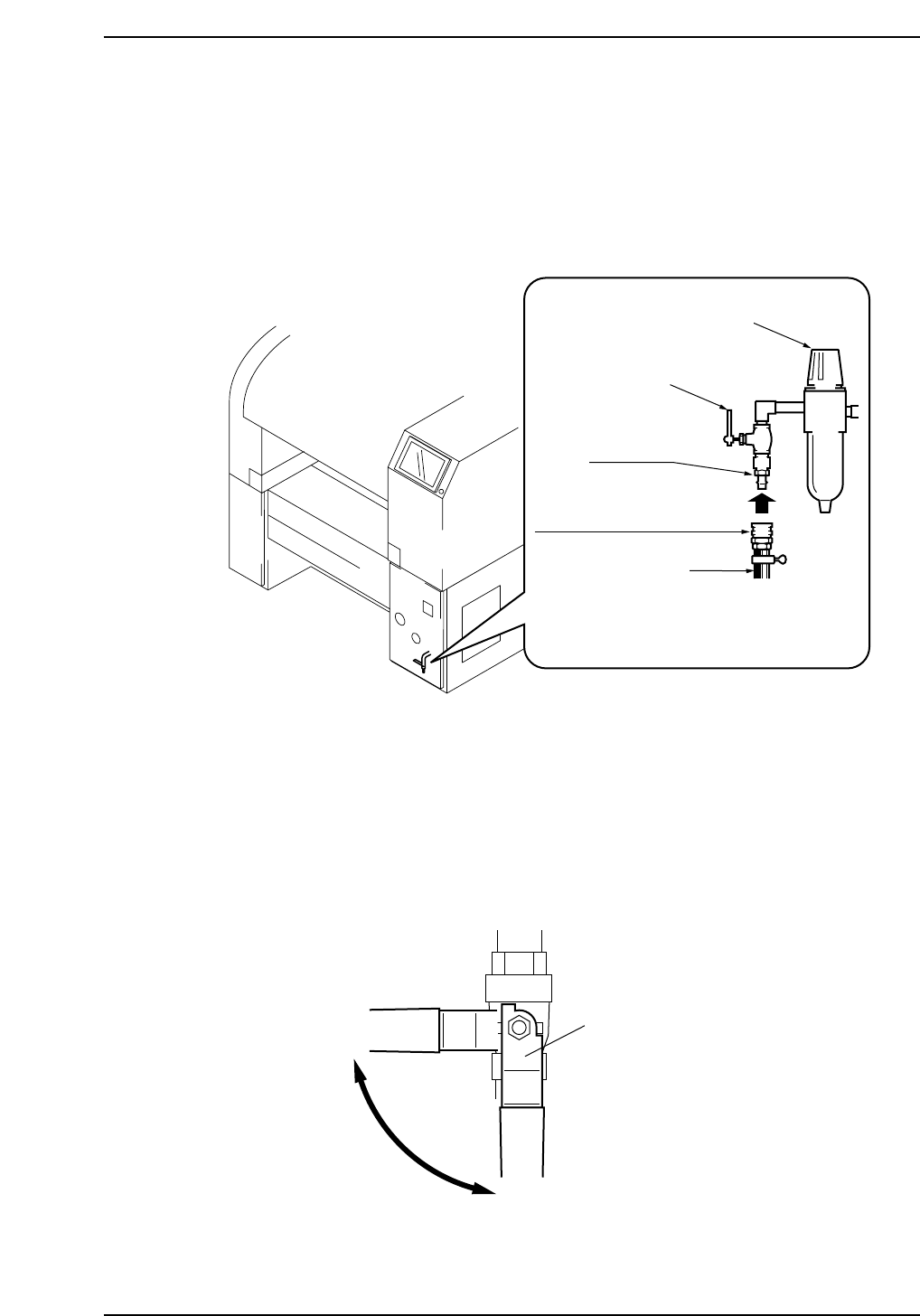

Procedure
Connecting the Air Supply Hose
1. Close the air valve lever.
2. Connect the air supply hose.
3. Open the valve lever.
Valve lever
Open
Close
XP1MS202E
XP1MS201E
30SH socket (for 3/8" hose)
0.5 MPa
or more
Hose
30PM plug
Lever
Knob
Part 6 Chapter 2 Connecting the Air
Edition 3.0 6-2-1 XP-142E Mechanical Reference

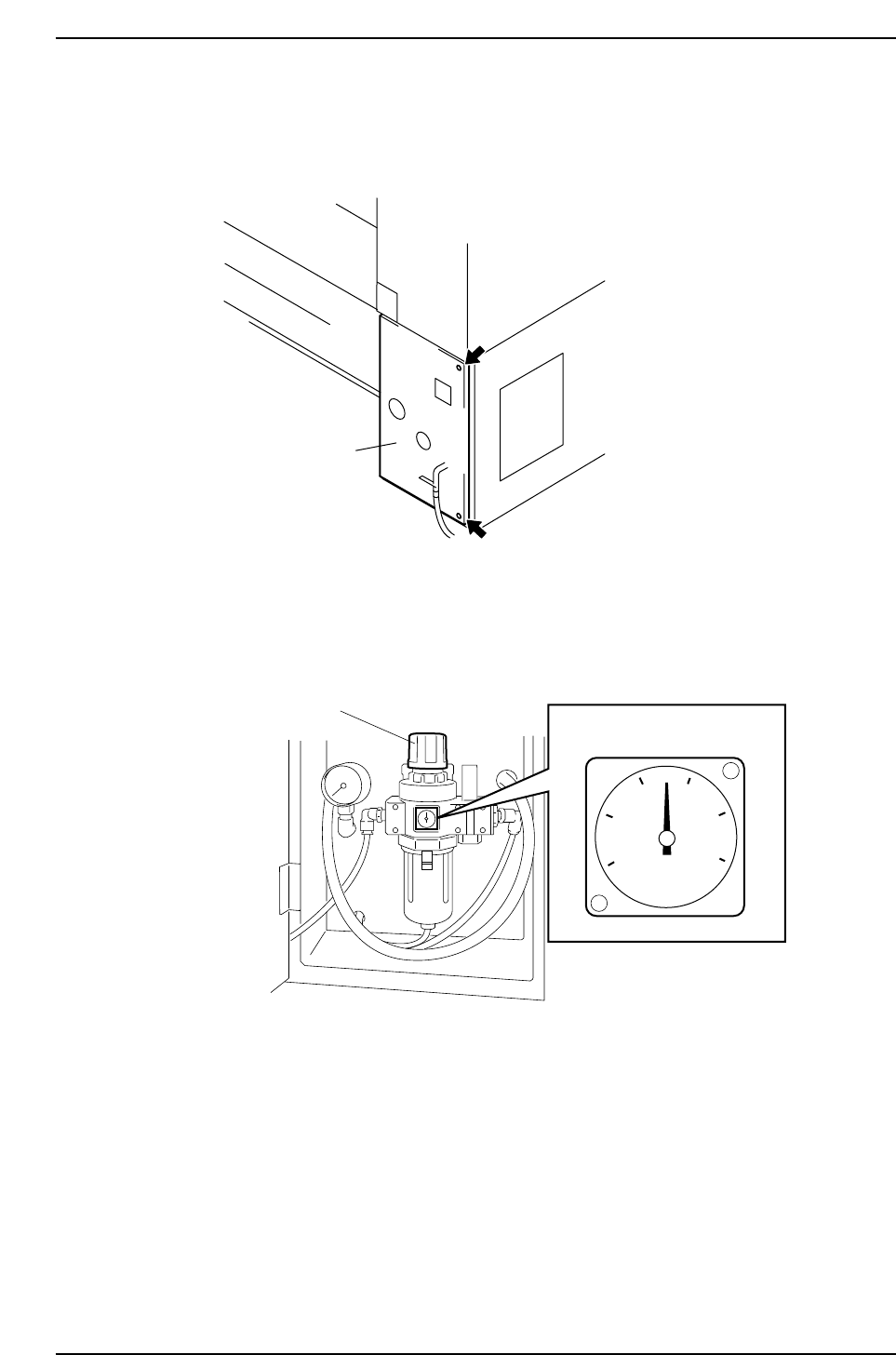

Adjusting the Air Pressure
1. Loosen the screws and open the cover.
2. Raise the regulator knob to unlock it.
Adjust the air pressure to the correct value.
Air pressure: 0.5 MPa
3. Push the knob down to lock it.
4. Close the cover.
XP1MS203E
Knob
Pressure gauge
XP1MC211E
Cover
Part 6 Chapter 2 Connecting the Air
Edition 3.0 6-2-2 XP-142E Mechanical Reference
