Notes: Part 6 Chapter 4 Connecting the Data Transmission Cable <RS-232C> Edition 3.0 6-4-2 XP-142E Mechanical Reference

4. Connecting the Data Transmission Cable

<RS-232C>

Point

The machine is connected to the host computer by means of an RS-232C communication

cable, which permits program transmissions and production log collection.

Procedure

1. Register the machine in the line descriptor file at the host.

Note: Refer to the host computer manual for details regarding the registration procedure.

2. Connect one end of the transmission cable to the designated port at the host, and

connect the other end to the connector on the machine.

Note: Shielded cables are recommended if cable types other than Ethernet are used.

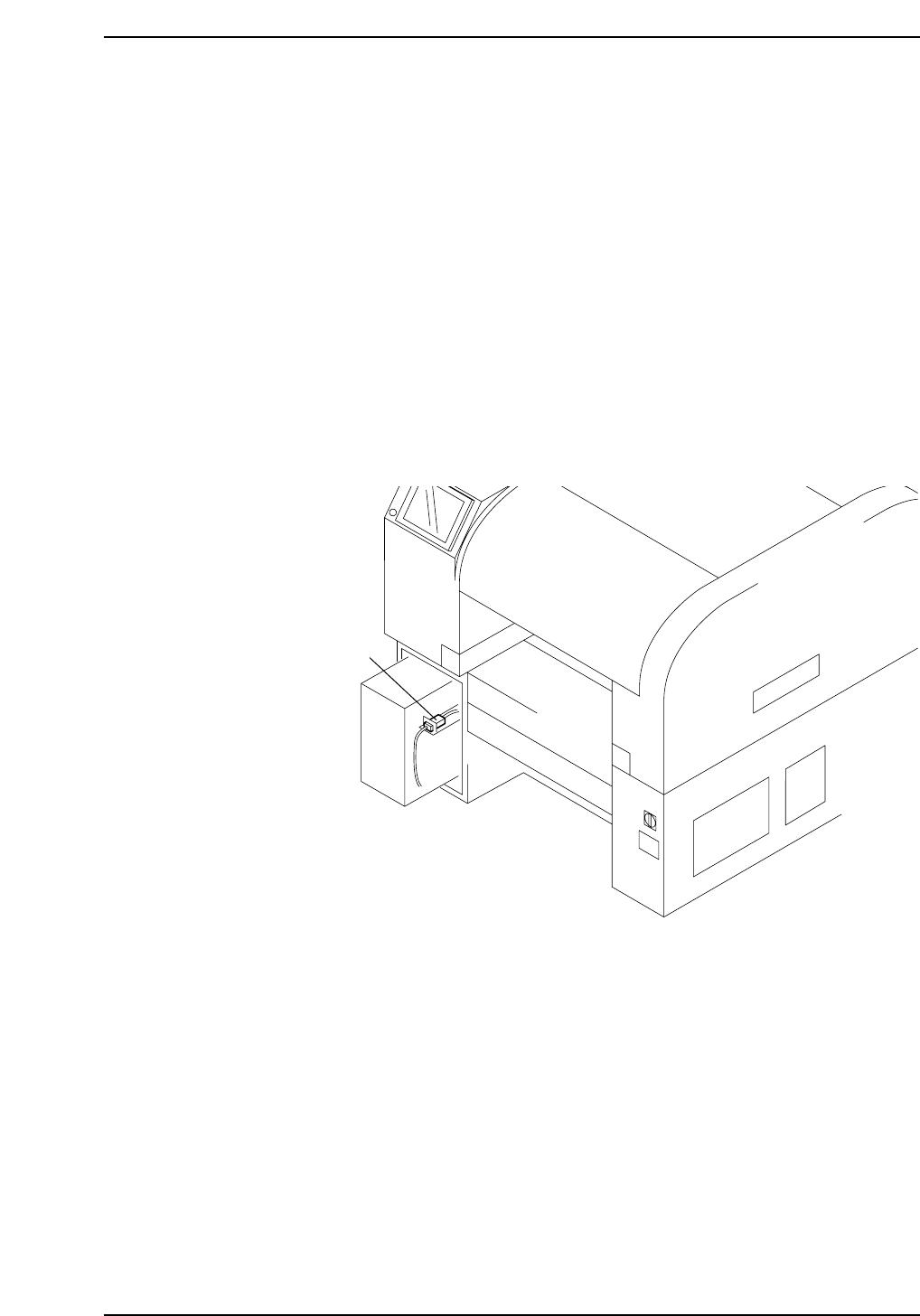

Data cable port

XP1MS206E

Part 6 Chapter 4 Connecting the Data Transmission Cable <RS-232C>

Edition 3.0 6-4-1 XP-142E Mechanical Reference

Notes:

Part 6 Chapter 4 Connecting the Data Transmission Cable <RS-232C>

Edition 3.0 6-4-2 XP-142E Mechanical Reference

5. Connecting the Data Transmission Cable

Point

The machine is connected to the host computer by means of an Ethernet twisted-pair

communication cable (class 5), which permits program transmissions and production log

collection.

Procedure

1. Register the machine in the line descriptor file at the host.

Note: Refer to the host computer manual for details regarding the registration procedure.

2. Connect one end of the transmission cable to the Ethernet connector at the host,

and connect the other end to the connector on the machine.

Ethernet connector

XP1MS207E

Part 6 Chapter 5 Connecting the Data Transmission Cable <Ethernet>

Edition 3.0 6-5-1 XP-142E Mechanical Reference
