1. Cleaning

Cleaning Kit for the Strobe Light Unit

This is a kit of jigs that makes cleaning the optical components of the strobe light unit

(prism, half mirror, strobe lamp, lamp housing etc.) easier.

Part name: Cleaner

Part number: ADNPJ8010

XP1MC213E

Wiper (ADNPJ8020)

Hand (DNPJ0260)

Cleaning paper (A4565T)

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-1 XP-142E Mechanical Reference

1.1 Emptying the Waste Tape Box <if so equipped>

(Every 8 Hours)

Point

Remove tape that has built up during production in the waste tape box. This refuse must

be cleared to ensure that it does not interfere with parts feeding.

If the machine has a waste tape cutter, a function to notify the operator when the waste

tape box is full can be enabled. Refer to the XP-142E System Reference manual for

details.

Procedure

Pull the waste tape boxes out, then discard the waste tape (empty the waste tape boxes).

Note: Waste tapes should be discarded in accordance with local ordinances for handling waste

matter.

XP1MC201E

Waste tape box

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-2 XP-142E Mechanical Reference

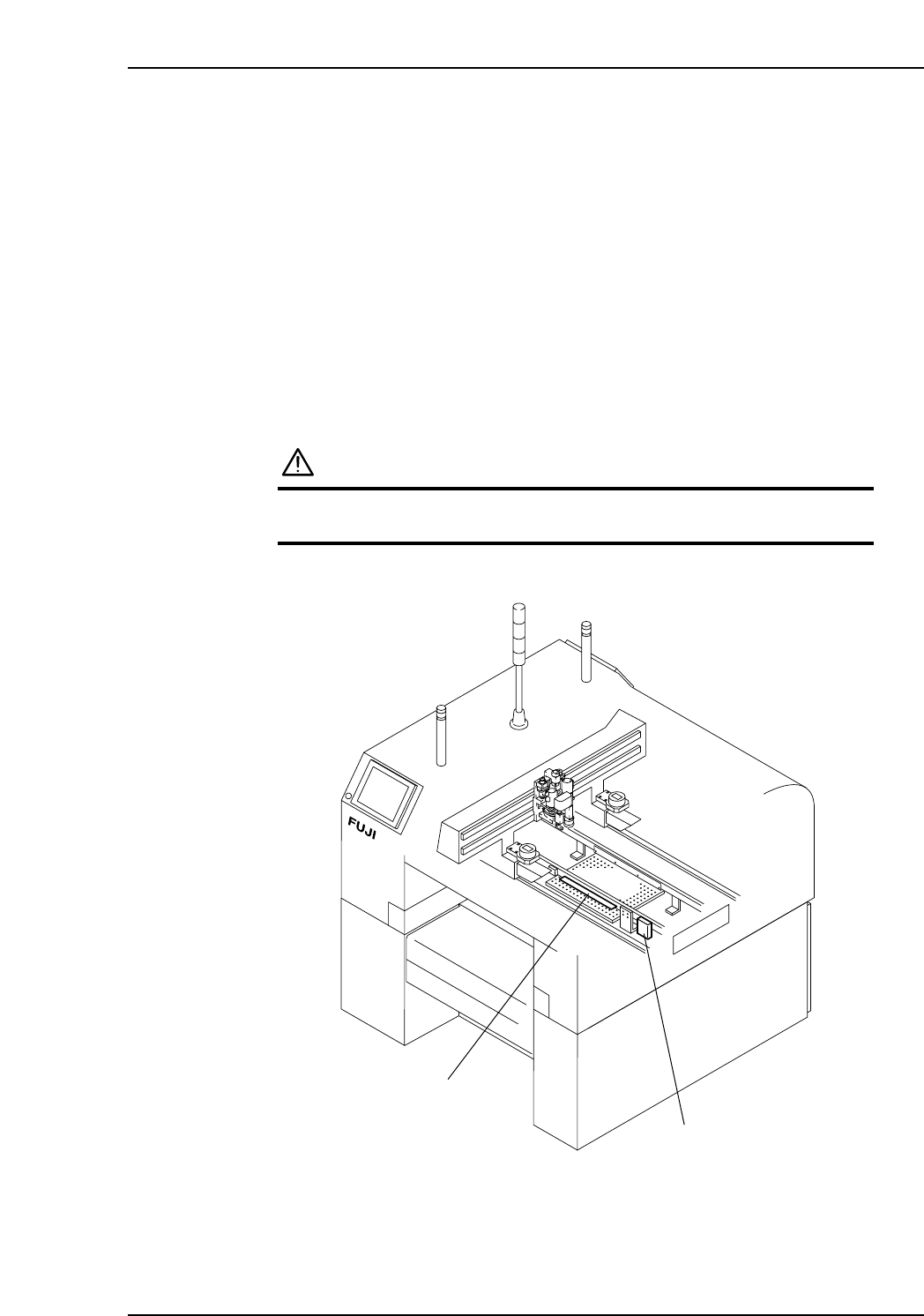

1.2 Emptying the Parts Reject Box and Tray

(Everyday)

Point

Parts that fail vision processing are placed in the parts reject box or parts reject tray.

Note: When the parts reject tray becomes full, a message is displayed on the operation screen.

In this case empty the rejected parts from the tray.

Procedure

• Small parts are collected in the small parts reject box and should be removed.

• Medium parts are placed on the medium size parts reject tray and should be

removed.

WARNING

Press EMERGENCY STOP button to cut power to the

machine before attempting this procedure.

Small parts reject box

Medium size parts reject tray

XP1MC202E

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-3 XP-142E Mechanical Reference
