1.3 Cleaning the Nozzle Interior (W eekly) Point Parts are picked up by air suction. Because air is sucked through the nozzle, minute dust, glue particles, etc., can build up inside the nozzle tube causing clogging. Such…

1.2 Emptying the Parts Reject Box and Tray

(Everyday)

Point

Parts that fail vision processing are placed in the parts reject box or parts reject tray.

Note: When the parts reject tray becomes full, a message is displayed on the operation screen.

In this case empty the rejected parts from the tray.

Procedure

• Small parts are collected in the small parts reject box and should be removed.

• Medium parts are placed on the medium size parts reject tray and should be

removed.

WARNING

Press EMERGENCY STOP button to cut power to the

machine before attempting this procedure.

Small parts reject box

Medium size parts reject tray

XP1MC202E

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-3 XP-142E Mechanical Reference

1.3 Cleaning the Nozzle Interior (Weekly)

Point

Parts are picked up by air suction. Because air is sucked through the nozzle, minute

dust, glue particles, etc., can build up inside the nozzle tube causing clogging. Such

clogging reduces the nozzle suction, causing problems when picking up parts. The

nozzle tube should be cleaned out regularly, or if clogging problems occur.

Procedure

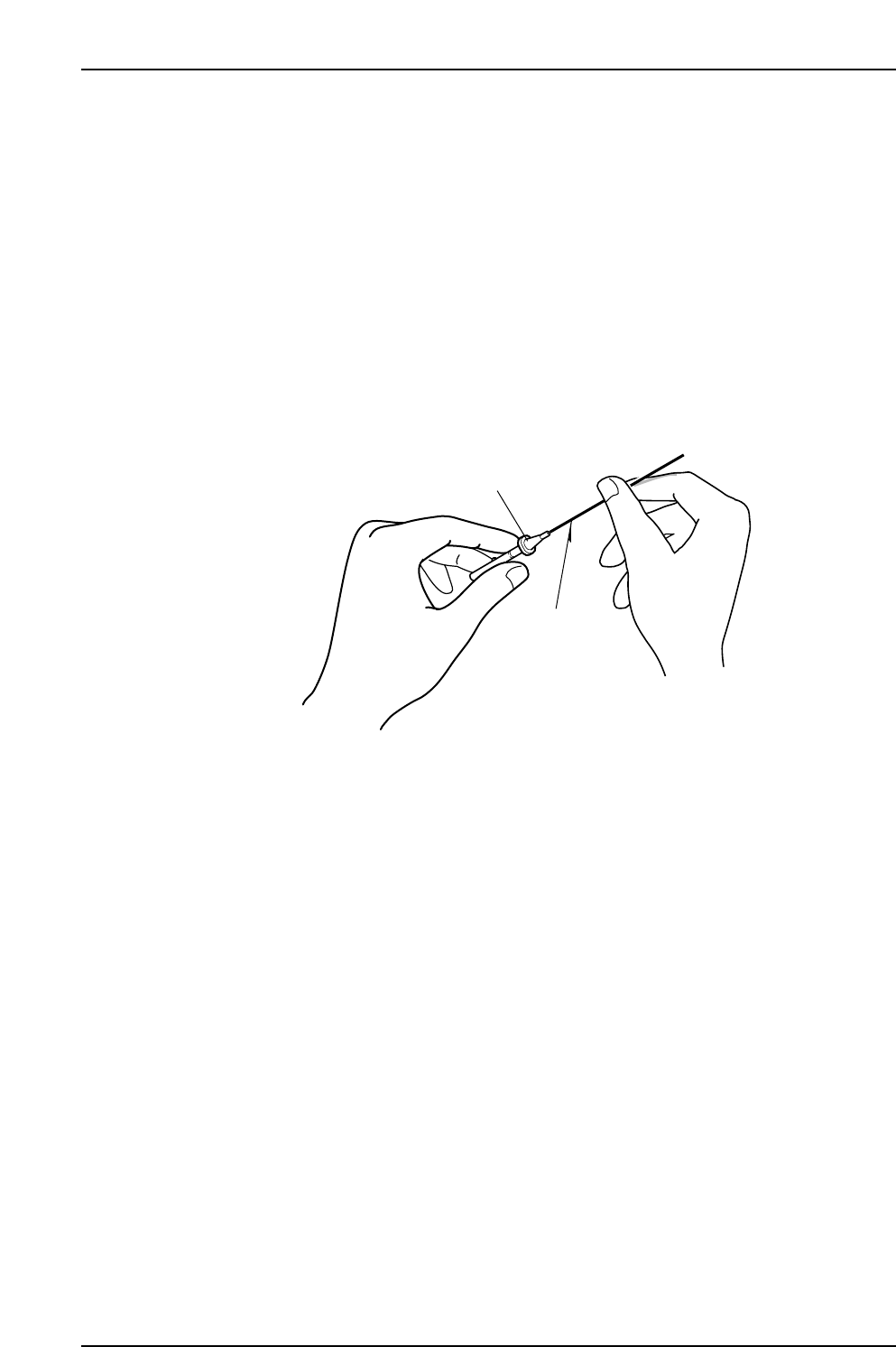

Use a drill bit with the appropriate diameter to remove foreign matter from the nozzle

tube.

Wipe the nozzle tip clean using a cloth soaked in alcohol.

XP1MC203E

Nozzle

Drill bit

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-4 XP-142E Mechanical Reference

1.4 Cleaning the Gauge Chip Parts (Weekly)

Point

The gauge chip part, which is used for nozzle rotation center measurements and mount

feedback corrections, is mounted in a prescribed position, and should be cleaned

regularly to ensure stable measurements and corrections.

Procedure

WARNING

Cut power to the machine at the main switch before

attempting this procedure.

Wipe the surface with a soft brush (such as is used for camera lenses).

XP1MC204E

Gauge chip parts

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-5 XP-142E Mechanical Reference
