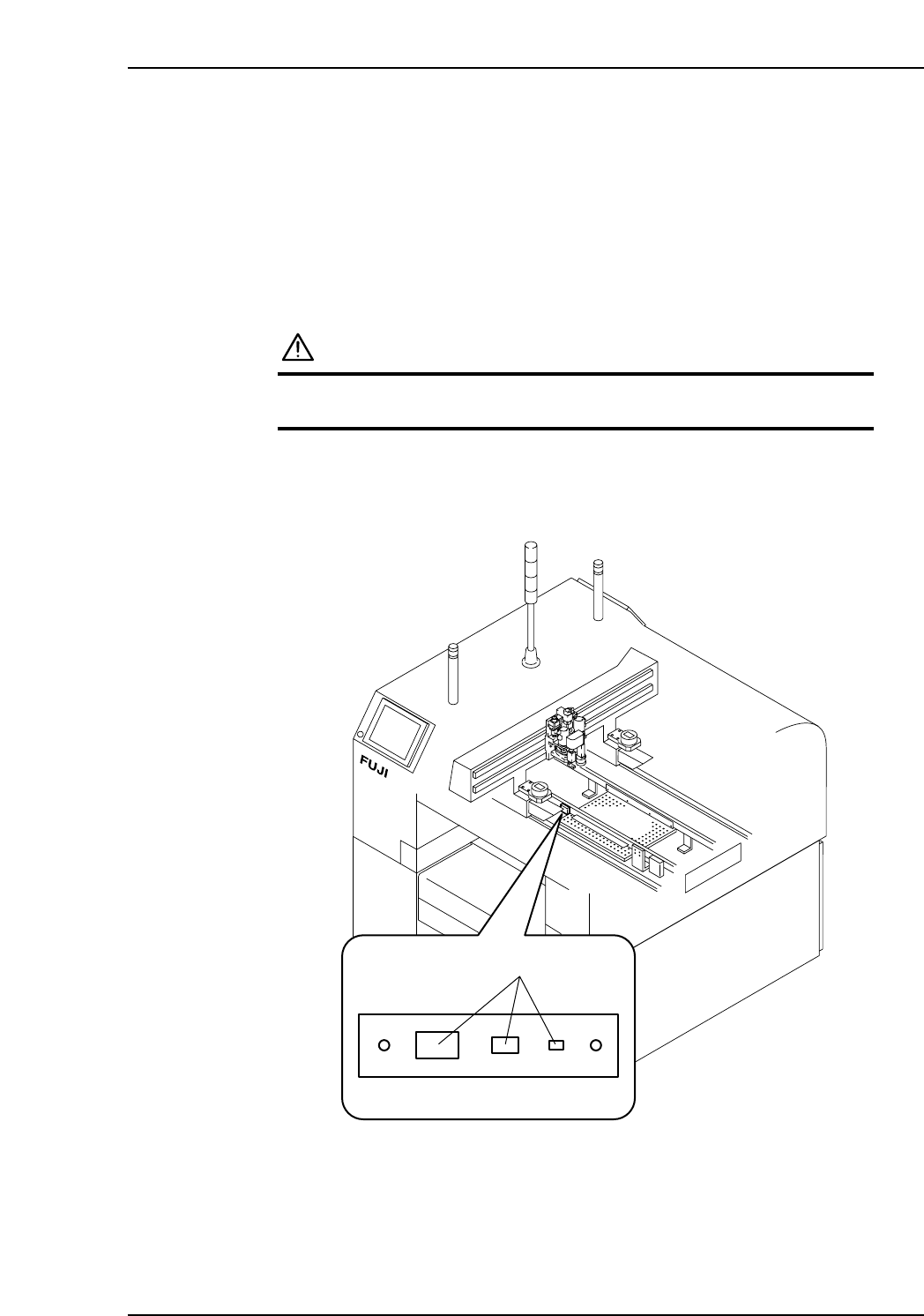

1.4 Cleaning the Gauge Chip Parts (Weekly)

Point

The gauge chip part, which is used for nozzle rotation center measurements and mount

feedback corrections, is mounted in a prescribed position, and should be cleaned

regularly to ensure stable measurements and corrections.

Procedure

WARNING

Cut power to the machine at the main switch before

attempting this procedure.

Wipe the surface with a soft brush (such as is used for camera lenses).

XP1MC204E

Gauge chip parts

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-5 XP-142E Mechanical Reference

1.5 Cleaning the Vacuum Pump Filter

(Every 3,000 Hours)

Point

The vacuum pump is equipped with a dust filter. This filter should be cleaned/replaced

regularly to ensure stable part pick-ups.

Procedure

1. Remove the MFU from the rear of the machine (side 2).

2. Turn the machine power off.

WARNING

Cut power to the machine at the main switch before

attempting this procedure.

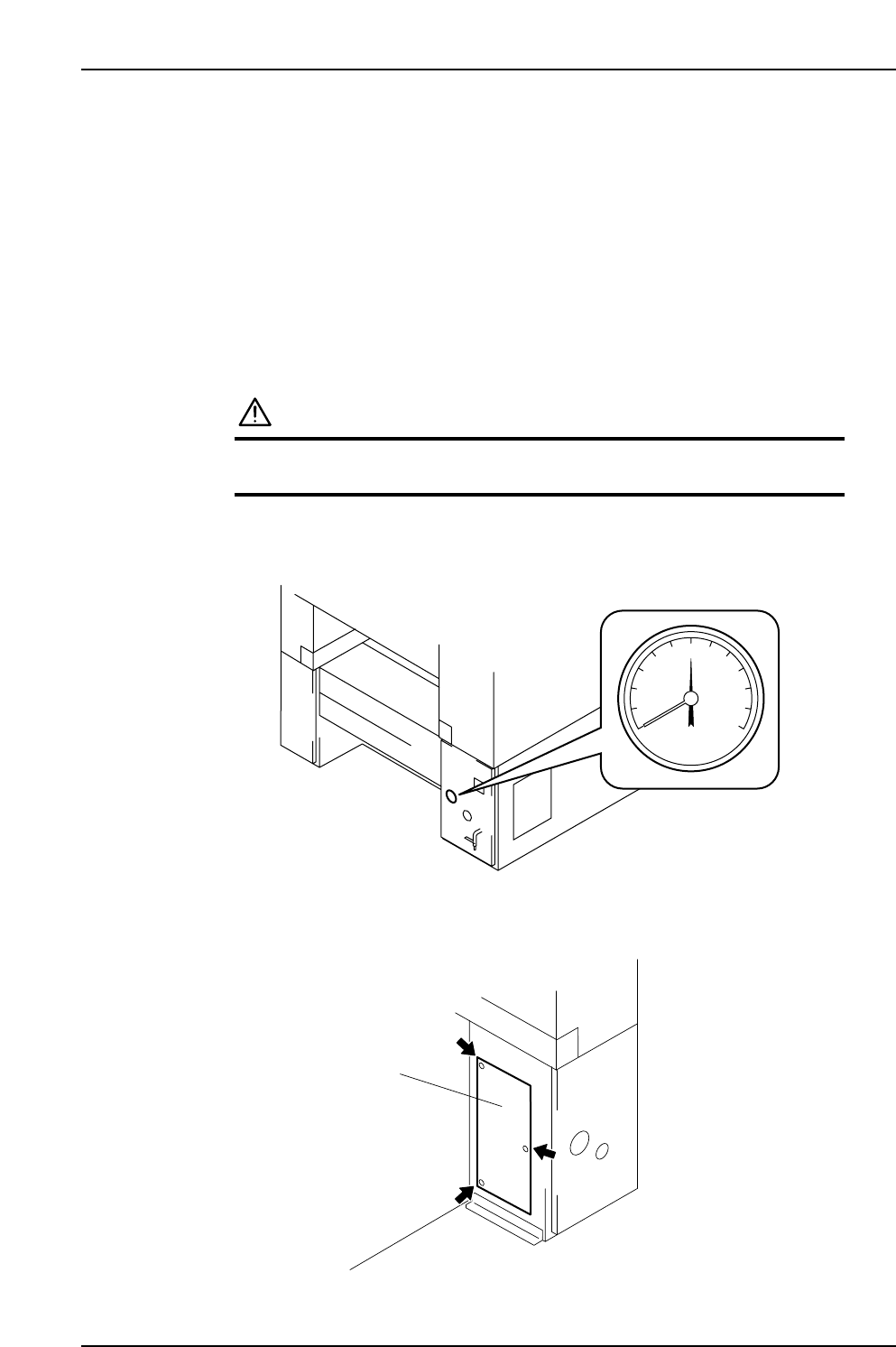

3. Disconnect the air supply, and confirm that the pressure is 0.

4. Remove the cover on the rear of the machine (side 2), as shown in this diagram.

Cover

XP1MC206E

XP1MC205

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-6 XP-142E Mechanical Reference

5. Loosen the ring, remove the ring and filter cover and take out the filter.

6. Clean the filter element with compressed air, or replace the filter element.

Filter cover

O-ring

Filter element

XP1MC208E

Ring

Filter cover

Ring

Loosen

XP1MC207E

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-7 XP-142E Mechanical Reference
