1.6 Cleaning the Machine Interior (W eekly) Point Chip parts and other foreign objects will accumulate in the machine during the course of operation. Such objects should be removed from the machine periodically to keep t…

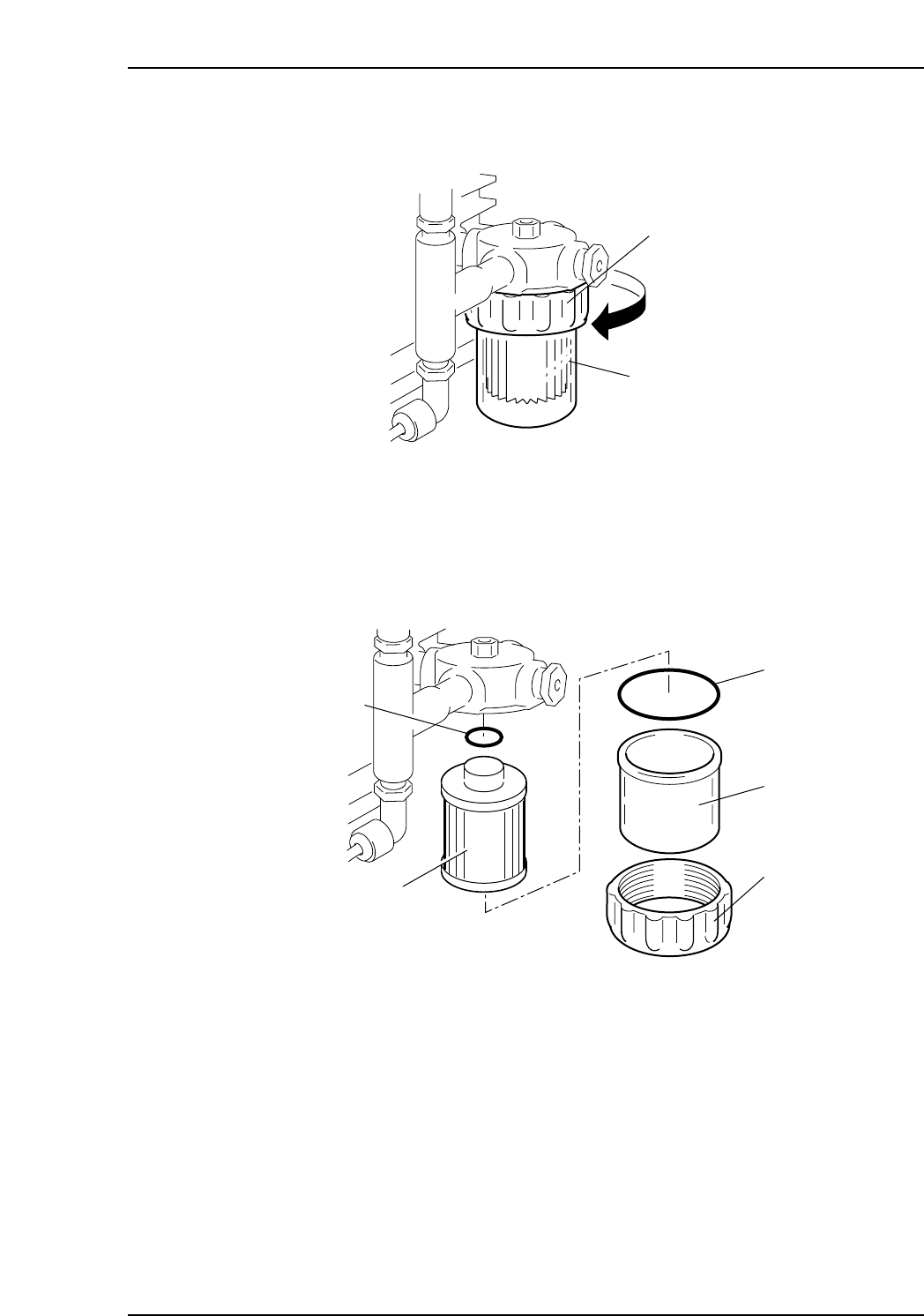

5. Loosen the ring, remove the ring and filter cover and take out the filter.

6. Clean the filter element with compressed air, or replace the filter element.

Filter cover

O-ring

Filter element

XP1MC208E

Ring

Filter cover

Ring

Loosen

XP1MC207E

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-7 XP-142E Mechanical Reference

1.6 Cleaning the Machine Interior (Weekly)

Point

Chip parts and other foreign objects will accumulate in the machine during the course of

operation. Such objects should be removed from the machine periodically to keep the

machine in good working order.

Procedure

WARNING

Cut power to the machine at the main switch before

attempting this procedure.

1. Use a brush to remove the foreign objects from the machine interior.

Caution: Do not use a compressed air blower to clean the machine interior, because this

can blow small parts and other foreign matter deeper into the machine where

they may impede operation.

2. Use a dry cloth to wipe grease off of all areas not specified as lubrication points.

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-8 XP-142E Mechanical Reference

Part 3 Chapter 1 Cleaning

Edition 3.1 3-1-9 XP-142E Mechanical Reference

1.7 Cleaning the Strobe Light Half Mirror (Weekly)

Point

If oil and dust accumulate on the strobe light half mirror or prism surface, problems such

as with the light intensity and image distortion, will cause inspection errors.

Even the slightest dust must be cleaned off the surface of the half mirror or prism.

Procedure

WARNING

Cut power to the machine at the main switch before

attempting this procedure.

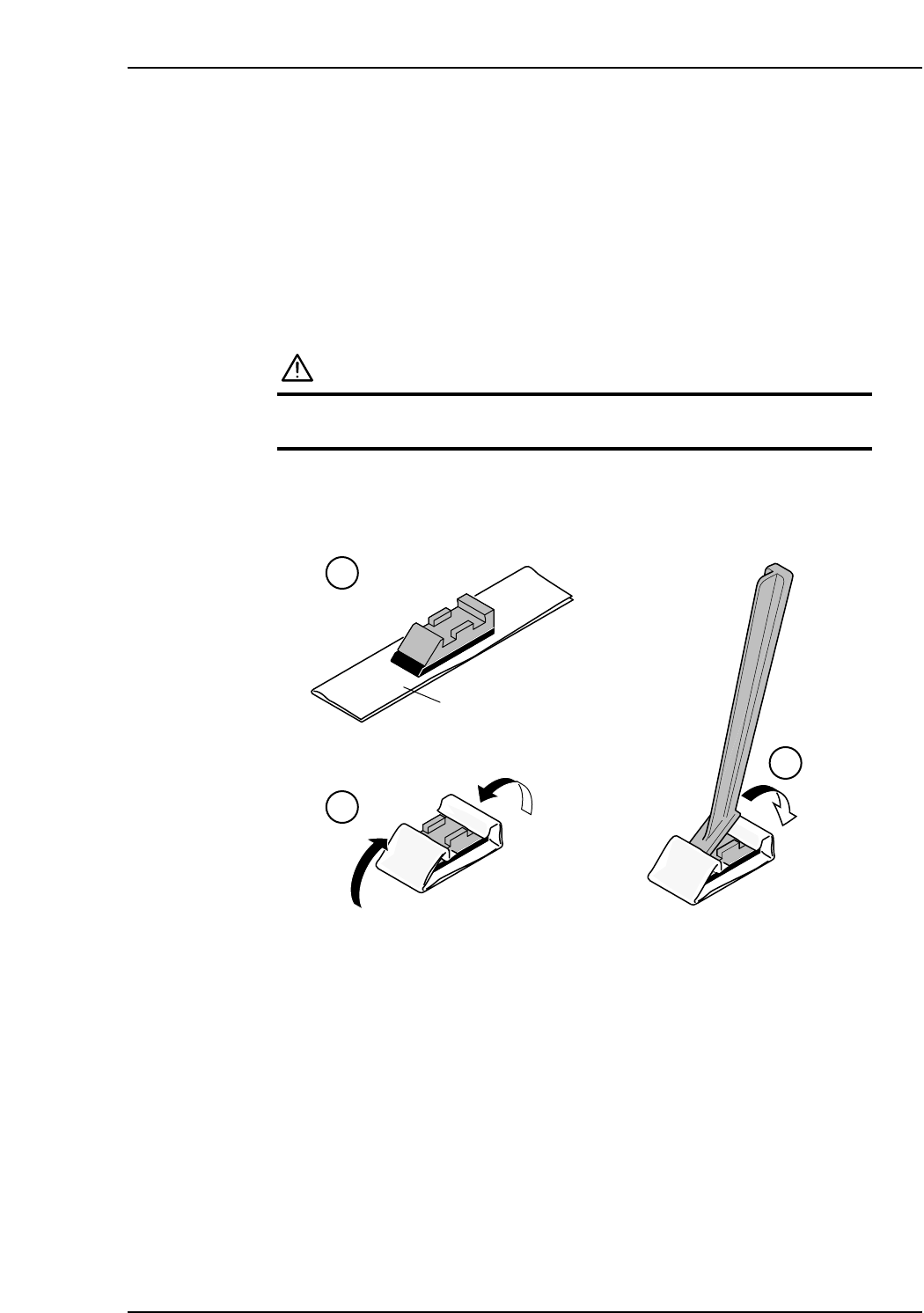

1. Get the cleaning kit ready.

Cleaning paper

XP1MC214E
