Part 3 Chapter 2 Lubrication Edition 3.0 3-2-7 XP-142E Mechanical Reference 2.4 Lubricating the T ape Cutter Arrow marks in the illustration indicate lubrication points. Black arrows indicate points where a grease gun is…

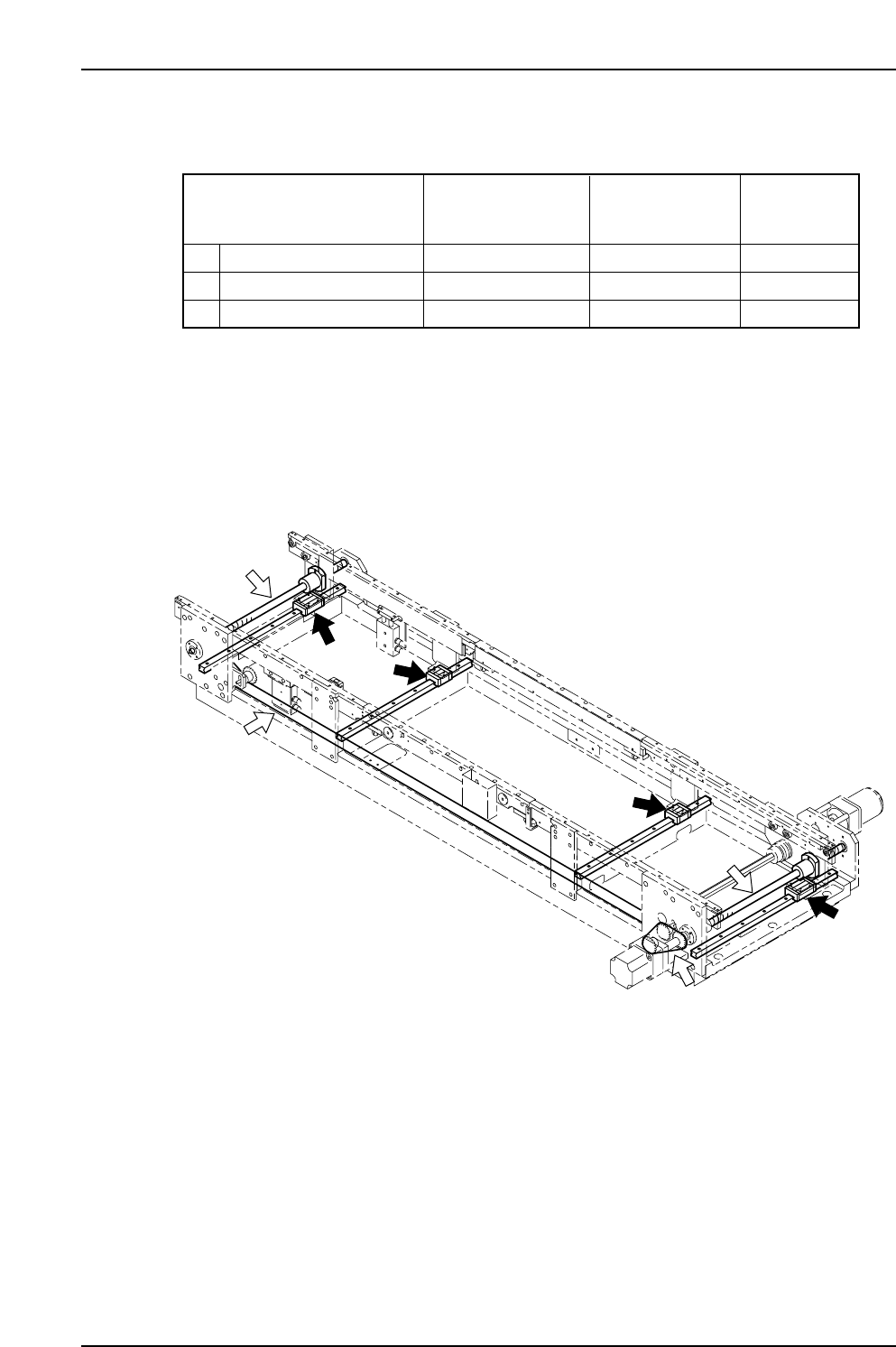

2.3 Lubricating the Conveyor
Arrow marks in the illustration indicate lubrication points. Black arrows indicate points
where a grease gun is required.
XP1ML013c
(13)
(14)
(12)
(13)
(13)
(12)
(13)
(14)
Daphne Eponex
No.2
✔
✔
N/A
Biral T&D
N/A
N/A
✔
T004Ea
Lubrication points
Schedule
12
13
14
Every Year
Every Year
Every 6 months
✔ : Lubricate N/A : Do not lubricate
Ball screws
LM rails
Conveyor chain
Part 3 Chapter 2 Lubrication
Edition 3.0 3-2-6 XP-142E Mechanical Reference
Part 3 Chapter 2 Lubrication
Edition 3.0 3-2-7 XP-142E Mechanical Reference

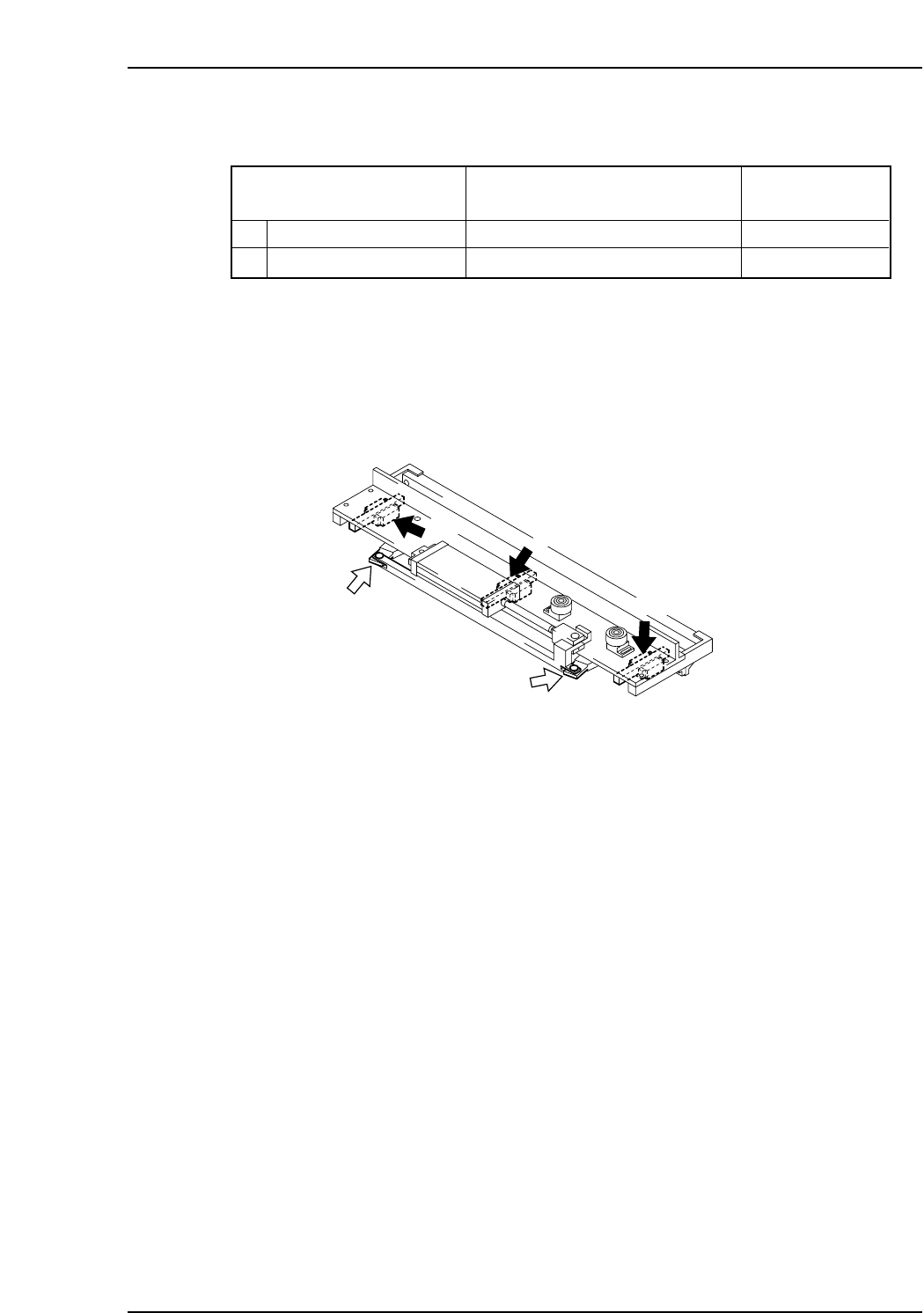

2.4 Lubricating the Tape Cutter
Arrow marks in the illustration indicate lubrication points. Black arrows indicate points
where a grease gun is required.
XP1ML014b
(15)
(15)
(16)
(16)
(16)
Daphne Eponex No.2
✔
✔
T005Ea
Lubrication points
Schedule
15
16
Every month
Every month
✔ : Lubricate
Sliding parts of link arm
LM rails

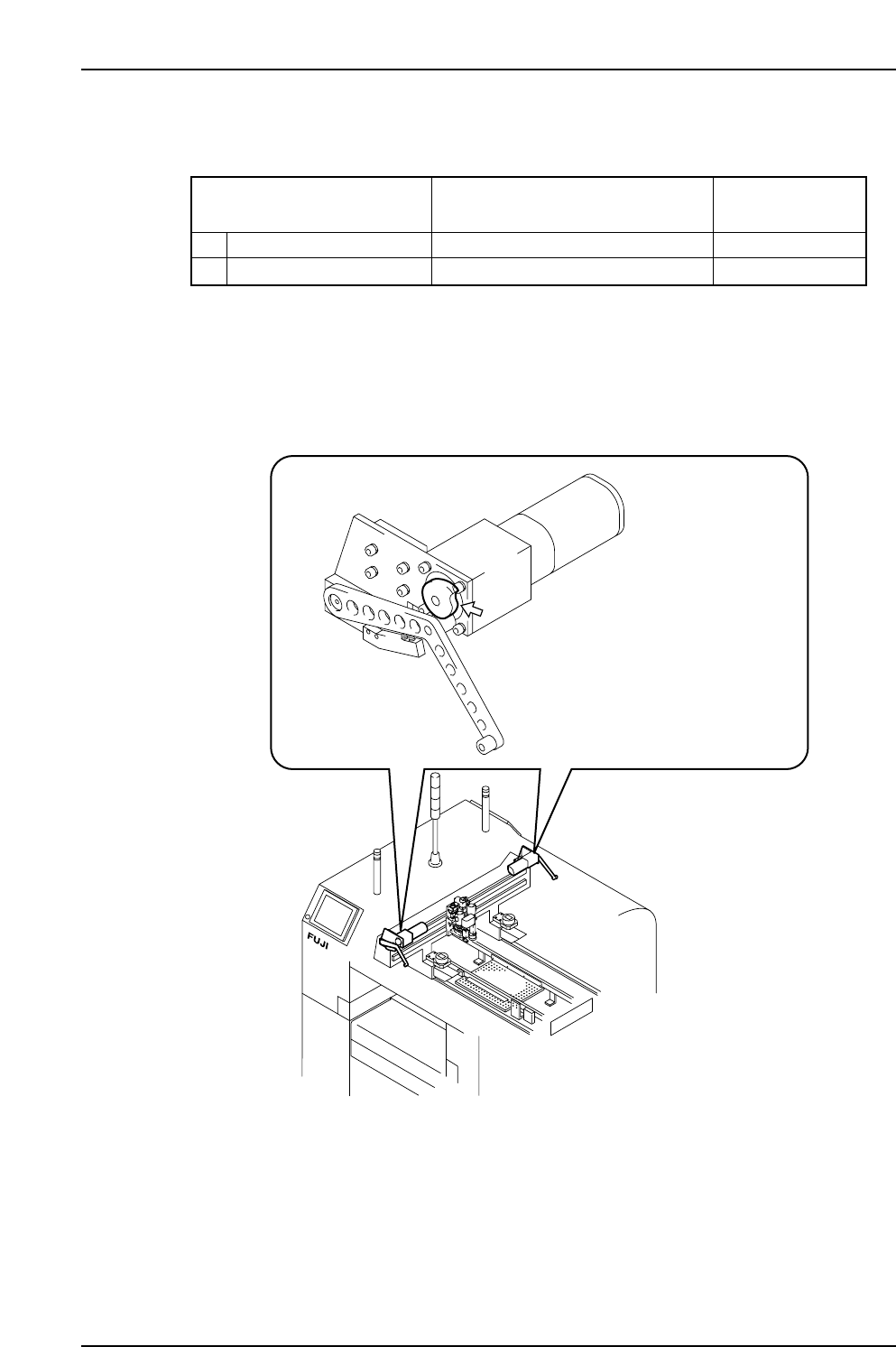

2.5 Lubricating the F, G-Axis
Arrow marks in the illustration indicate lubrication points.
XP1ML203Ea
This exploded diagram shows
the F-axis (side 1).
(17)
(17)
(18)
Daphne Eponex No.2
✔
T007Eb
Lubrication points
Schedule
18
Every month
✔ : Lubricate
G-axis cam unit
✔
17
Every monthF-axis cam unit
Part 3 Chapter 2 Lubrication
Edition 3.0 3-2-8 XP-142E Mechanical Reference
