3.6 Replacing the CPU Board Battery Point If the SRAM (memory) backup battery on the CPU board fails, then problems such as lack of trace data will occur. Replace this battery regularly, at 6 year intervals. Procedure 1.…
4. Replace the battery.
5. Turn the main switch (power breaker) off.
6. Turn the main switch (power breaker) on again, and verify that [AL A2] or [A.830]
is no longer displayed at the servo amplifier.
7. Press the SYSTEM ON button to turn on the power, then verify that the machine
operates normally.
X-axis Y, G, F, R, Q,
and Z-axes
XP1ML020aE
Battery case
Battery case
Battery
Type: AL-00494635-01
Code No.: H10195
Est. time before failure:
2 years (Machine not used)
3 years (Standard)
Battery
Type: JZSP-BA01
Code No.: H10212
Est. time before failure:
5 years (Machine not used)
10 years (12 hours of use/day)
Note: The time before failure increases with increased machine operation.
Part 3 Chapter 3 Replacing Consumable Parts
Edition 3.1 3-3-7 XP-142E Mechanical Reference
3.6 Replacing the CPU Board Battery
Point
If the SRAM (memory) backup battery on the CPU board fails, then problems such as
lack of trace data will occur. Replace this battery regularly, at 6 year intervals.
Procedure
1. Turn off the power to the machine at the main switch (breaker).
2. Remove the CPU board from the Control Box.
3. Replace the lithium battery (CR2450, commercially available) on the CPU board.
4. Return the CPU to the Control Box.
5. Turn on the machine power and follow the instructions that appear on screen to
resume operation.
CAUTION
• Do not use any battery other than the specified battery.
• Dispose of the used lithium battery in accordance with
your local regulations.

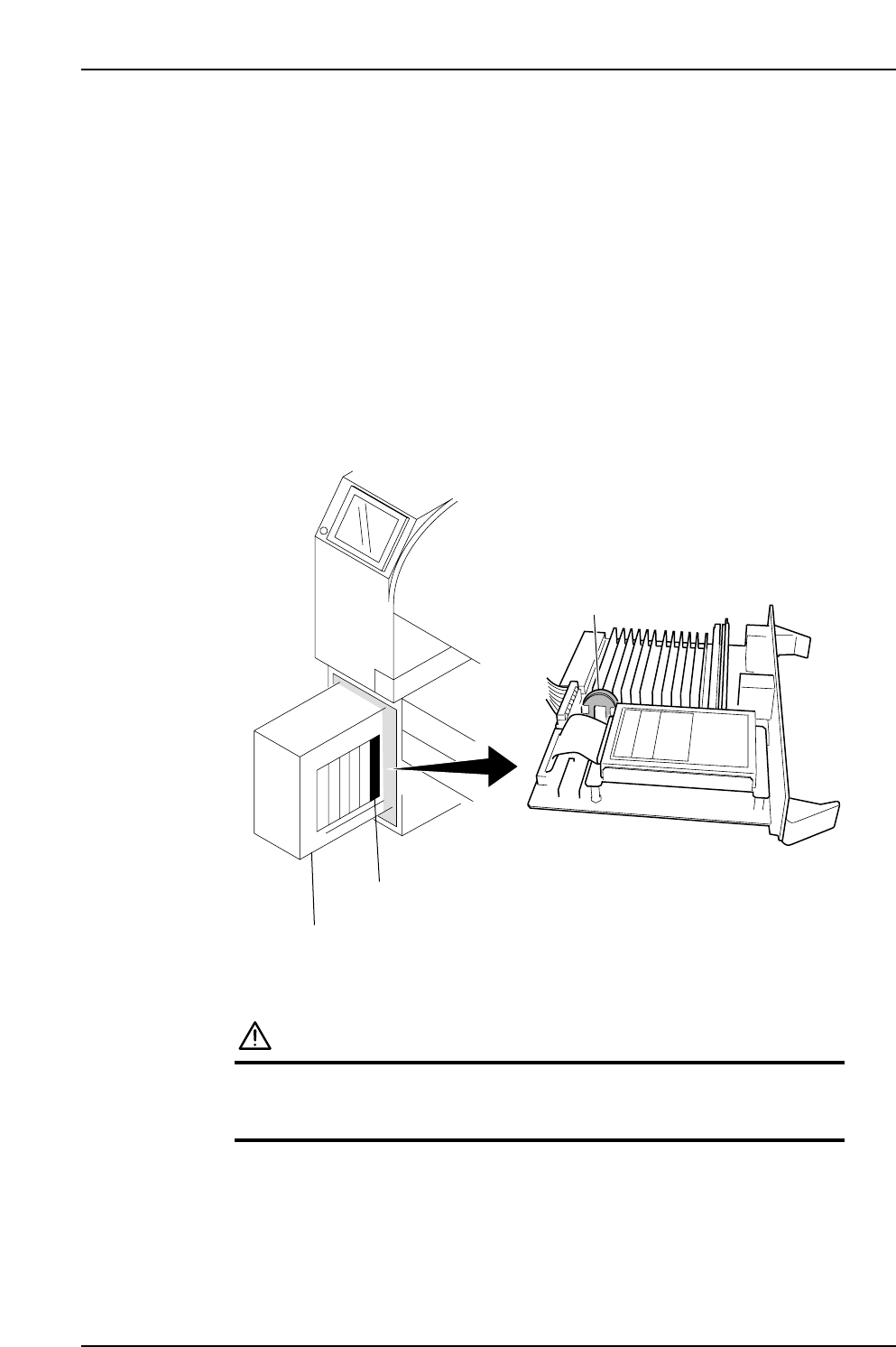

Lithium battery
Control box
CPU board
XP1MA036E
Part 3 Chapter 3 Replacing Consumable Parts
Edition 3.1 3-3-8 XP-142E Mechanical Reference
