5 Installing the machine computer
5.1 Installation sequence
See separate Installation Manuals for details on
installing the Windows XP or Windows XP
Embedded operating system (item no.
00196151-xx and 00196737-xx respectively)
For details on calibrating the touchscreen, see
section 5.2.3.
See section 5.3.
See section 5.3.
See section 5.4.
See section 5.4.7.

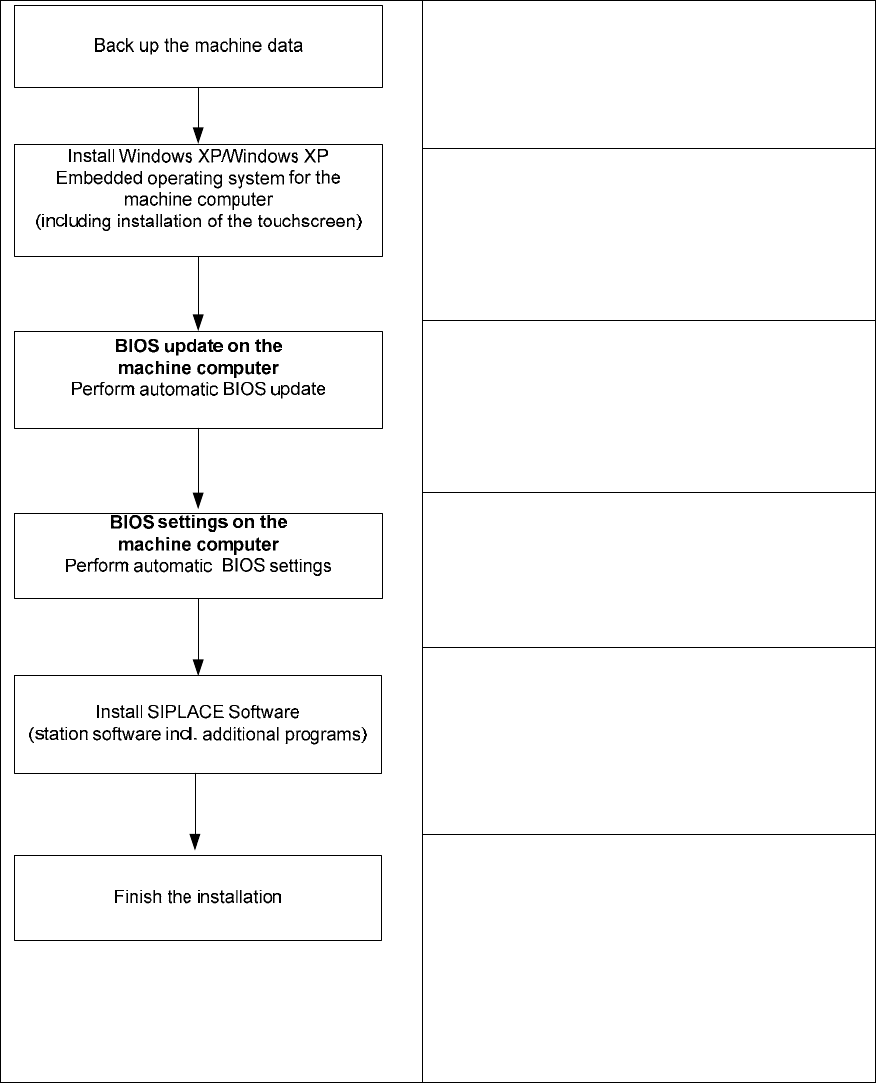

Figure 5-1: Installation sequence
24
Station Software 704.03 SP1 / Installation Manual Ausgabe 10/2011 Edition
5.2 Preparations for installing the software
5.2.1 Requirements
Requirements for installing the SIPLACE software and the Vision computer software:
– The Windows XP embedded operating system with Service Pack 2 must be installed on the
machine computer and in two-computer operation on the Vision computer (see "Installation
Manual Operating System Windows XP Embedded SP2 for 70x", item number 00196737-xx)
NOTICE
Error message after installation of the operating system
After installation of the operating system an error message
W
indows Out of Virtual
Memory might appear after the station computer is booted.
► In this case, perform the steps that are described in the Technical Information
TI2011-02C06.pdf.
Or
– The Windows XP Professional operating system with Service Pack 3 and all current hot
fixes (SIPLACE Hotfix CD) must be installed on the machine computer and in two-computer
operation on the Vision computer (see the Installation Manual for the Windows XP operating
system, item number 00196151-xx).
NOTICE
The Windows XP Embedded operating system is only used for new installations. On
upgrading to this station software or higher, there will be no operating system change
from Windows XP Professional to Windows XP Embedded.
Under Windows XP Professional the default Windows display settings have to be changed and
the touch screen has to be calibrated. Under Windows XP Embedded only the touch screen has
to be calibrated. You must be logged in as the Administrator
in order to be able to carry out this
work.
25
Station Software 704.03 SP1 / Installation Manual Ausgabe 10/2011 Edition
5.2.2 Changing the display settings
► Select Start Æ Settings Æ Control Panel Æ Display.
► Click the Settings tab.
► Set the Screen resolution slider to 1024 by 768 pixels.
Figure 5-2: Screen settings
► Confirm the settings by clicking OK.
