5.4.1 Language selection
► Select the language to be used during installation.
You can choose between German (Germany) and English (United States).

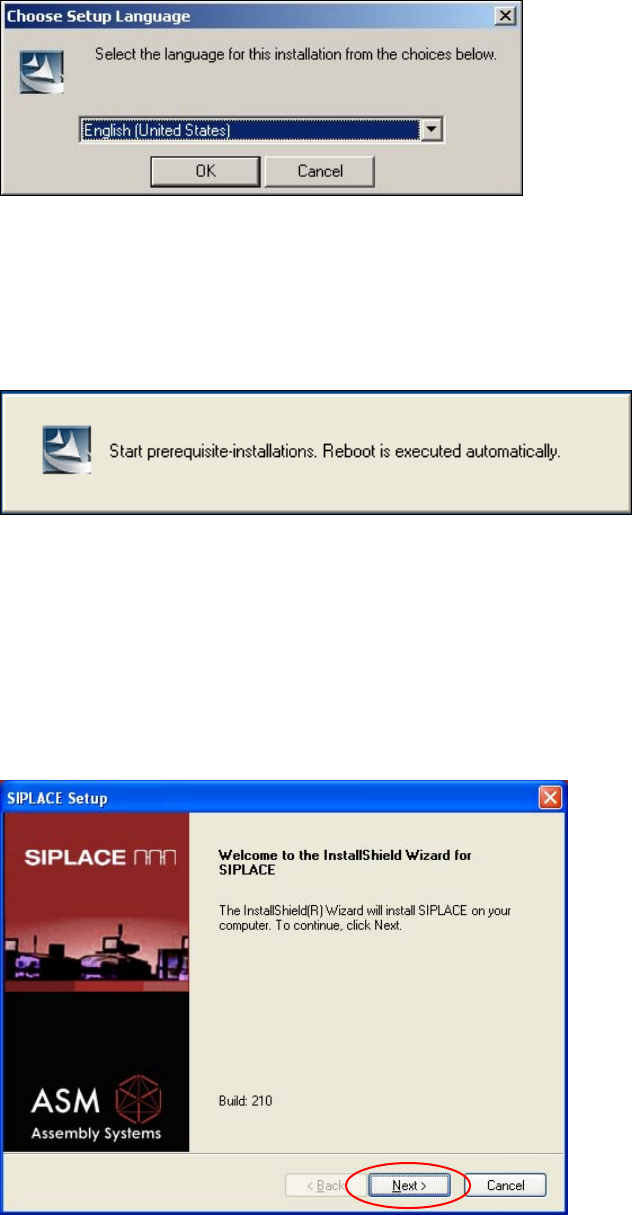

Figure 5-6: Language selection
► Click the OK button.
5.4.2 Installing the system files
Figure 5-7: Installing the system files
The necessary system files are installed if they are not already on the machine computer. The
machine computer is rebooted automatically after installation. You are automatically logged in as
administrator.
Installation of the station software continues with the welcome screen.
5.4.3 Welcome screen
Figure 5-8: Welcome screen
30
Station Software 704.03 SP1 / Installation Manual Ausgabe 10/2011 Edition
► Click the Next button.
5.4.4 Selecting the machine type

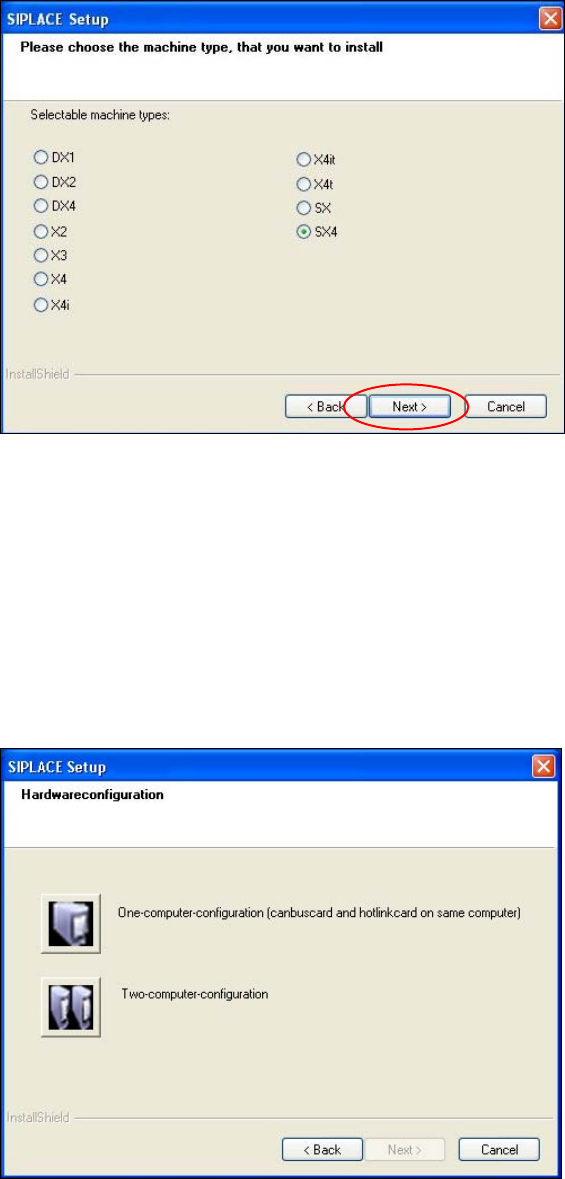

Figure 5-9: Selecting the machine type
► Select the option for the machine type for which the software is to be configured.
► Click the Next button.
5.4.5 Selecting the hardware configuration
The Hardwareconfiguration dialog box is opened, in which you configure the hardware for one-
computer or two-computer operation. One-computer operation is default for the SX placement
machines.
Figure 5-10: "SIPLACE Setup" dialog box
31
Station Software 704.03 SP1 / Installation Manual Ausgabe 10/2011 Edition
► Click the
One-computer-configuration button or the Two-computer-
configuration button for X-series placement machines with two computers.
5.4.6 Entering the Machine Identification Number (MID)

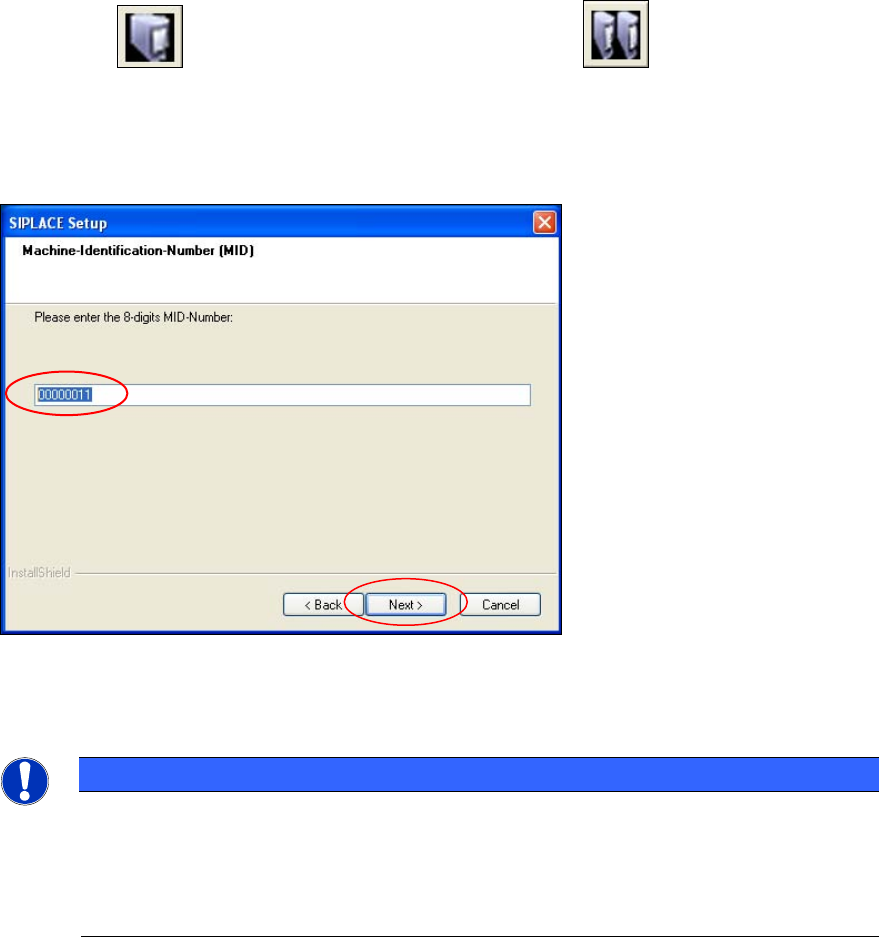

Figure 5-11: Entering the Machine Identification Number (MID)
► Enter the 8-digit machine identification number into the text box.
NOTICE
You will find the MID on an adhesive label on the side of the protective covers directly
below the label for the number of the relevant location. The number following the dash
after the MID specifies the location and is not entered here (e.g. 00000001-2 stands for
location 2).
After upgrading (from 60x and 70x) the correct MID is already inserted.
► Click the Next button.
