► Click the Machine service button and enter the password to change into this activity level.
7.1 X-series placement machines
The following window is displayed for the X-series machines. Here you can edit, confirm or reject
the Auto-configuration.

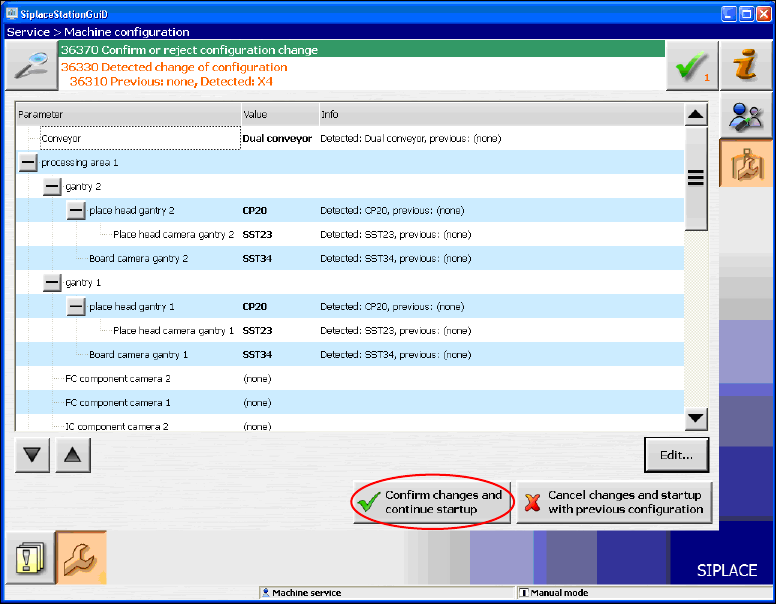

Figure 7-4: Confirming Auto-configuration for X-series
► Click the Confirm changes and continue startup button to confirm the Auto-configuration.
41
Station Software 704.03 SP1 / Installation Manual Ausgabe 10/2011 Edition
7.2 SX1/SX2 placement machine
For the SX1/SX2 placement machine the following window is displayed, in which the Manual
selection required note informs, that the table configuration has to be selected manually, as this is
not detected automatically.

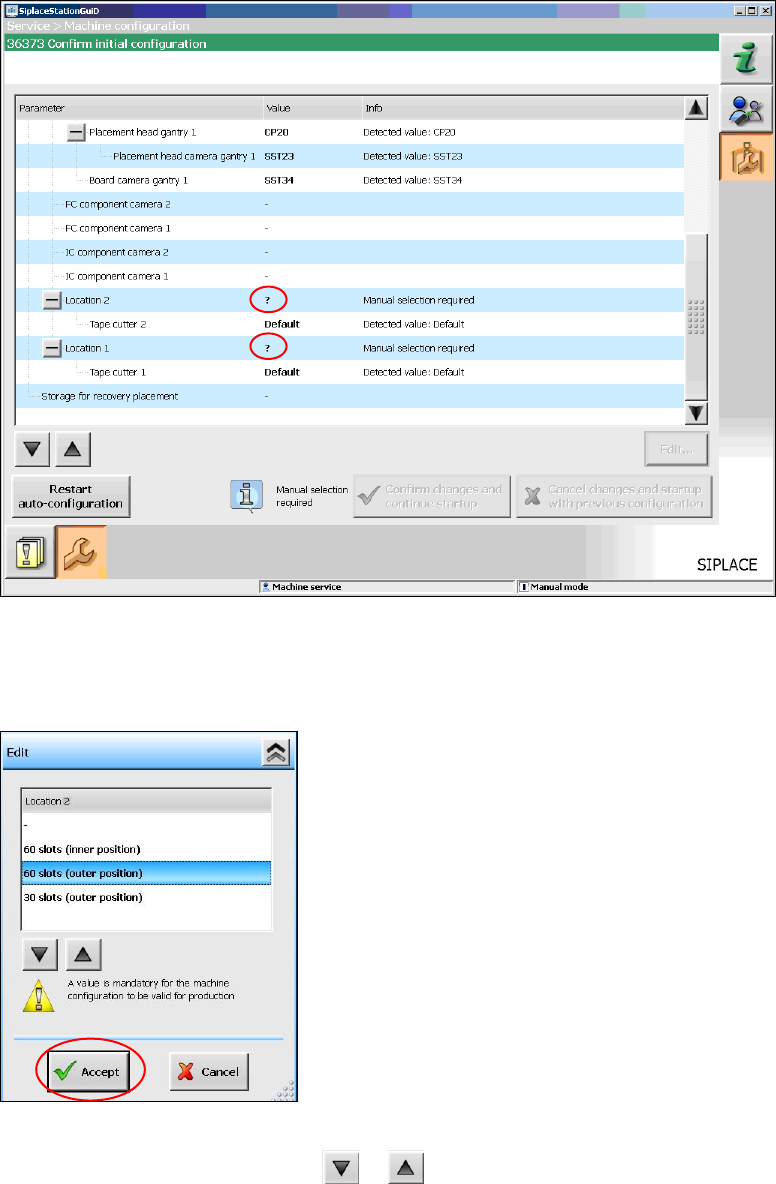

Figure 7-5: Selecting table configuration
► Click the ? question mark next to Location 2.
The selectable table configurations are displayed.

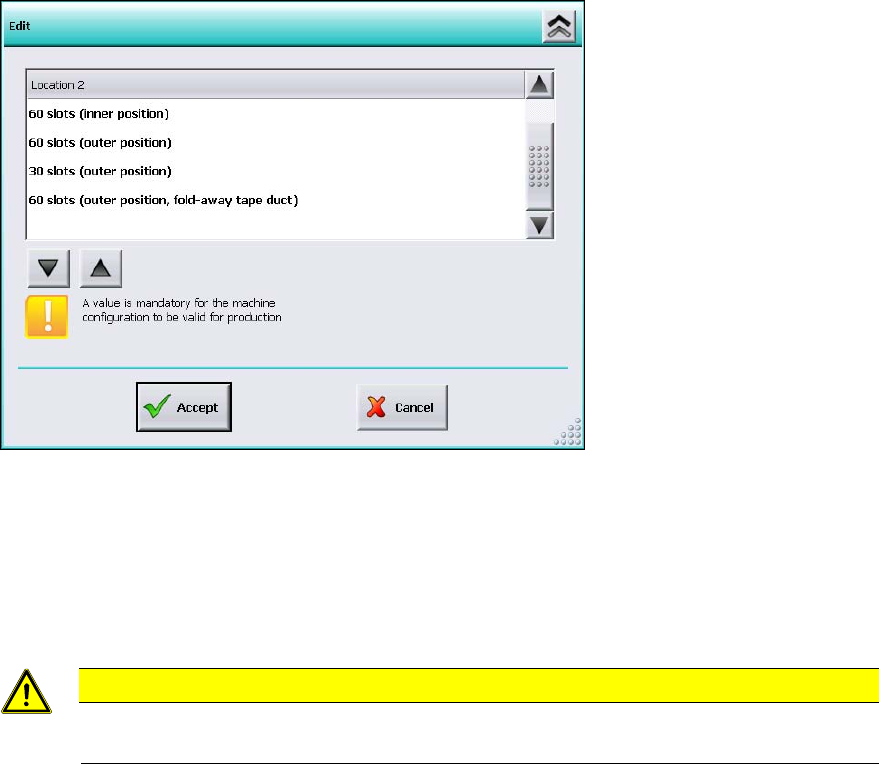

Figure 7-6: Possible table configurations
► Select a table configuration with or .
► Click the Accept button.
42
Station Software 704.03 SP1 / Installation Manual Ausgabe 10/2011 Edition
► Repeat the steps for Location 1.
Settings for manual tray Carrier SX
If the manual tray Carrier SX is used, the insert frame with the fold-away tape guide channel is
required. This has to be set manually. In this case, the following selectable table configurations are
displayed:
Figure 7-7: Settings for manual tray Carrier SX
► Select the 60 slots (outer position, fold-away tape duct) table configuration.
► Click the Accept button.
Thus, the 27x27 reject bin and the left reject channel on the location are excluded from the
configuration.
CAUTION
If this setting is not made, the component may be rejected over the tray and the Z axis
may dash hard against the tray.
► Repeat the steps for Location 1.
