If a transmission failure occurs while attempting to send the spool, the event
GemSpoolTransmitFailure (CEID 1000009) is sent to the spool and spooling will remain
active. While the spool is active, any new (spoolable) messages generated by the
Equipment are also sent to the spool.
When the spool has been completely transmitted, the event GemSpoolingDeactivated
(CEID 24) is sent to the Host.
Instead of reading spooled messages, the Host can purge the spool by sending S6F23
with RSDC = 1. For details, please see section "S6F23 -- Request Spooled Data".
GEM for SIPLACE V5.01
©Siemens AG, all rights reserved page 49 of 252

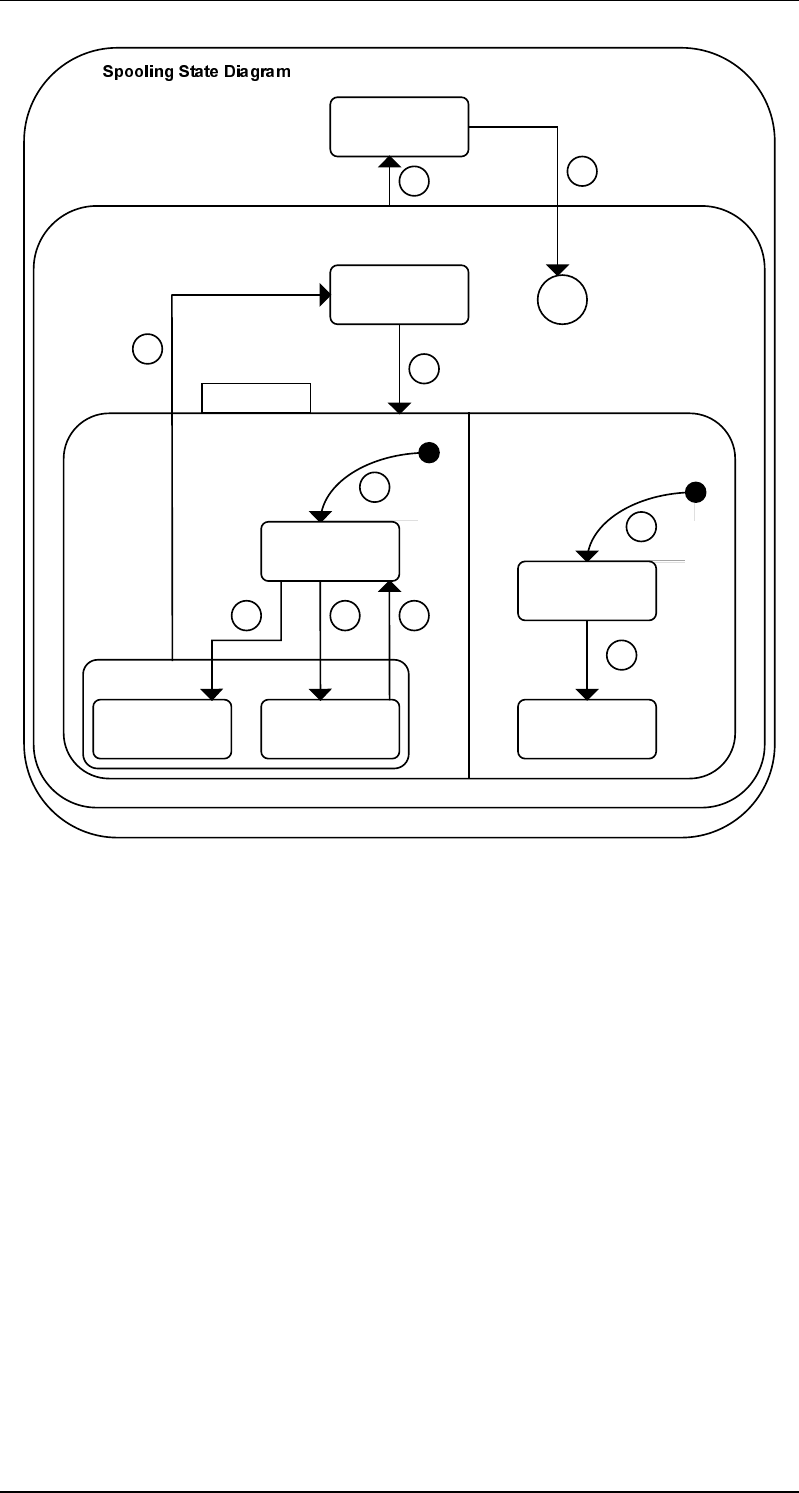

Purge Spool
Transmit
Spool
Spool Full
Spool Not Full
5
6
Spool Output
987
4
No Spool Output
Spool Active
Spool Inactive
10
3
Power Off
H*
Power On
1
2
6SRROLQJ6WDWH'LDJUDP
GEM for SIPLACE V5.01
Page 50 of 252 ©Siemens AG, all rights reserved
 6SRROLQJ6WDWH7U DQVLWLRQV
)URP 7ULJJHU 7R 'HVFULSWLRQ
1 Power On Equipment shutdown Power Off The Equipment may
power off at any time.
2 Power Off Equipment Startup History*
(Power On)
Equipment re-boots
after a shutdown.
Spooling will continue
according to its state
when the equipment
was powered off.
3 Spool
Inactive
SIPLACE
experiences a
transmission failure
and the variable
CONFIGSPOOL
(VID 1002045) is set
to „1“ (enabled).
Spool Active SIPLACE will now
start spooling any
messages which have
been defined by the
Host.. If the Host
does not wish to
implement Spooling,
the EC
GemConfigSpool
should be set to „0“
and the spool state will
never become active.
4 Default Entry into Spool
Active
No Spool
Output
No spooled messages
are being read by the
Host.
5 Default Entry into Spool
Active
Spool Not
Full
The spool file has not
yet filled up.
6 Spool Not
Full
The Equipment’s
spool has reached
capacity.
Spool Full The Equipment will
start to either discard
new messages
destined for the spool
or overwrite the
beginning of the spool,
depending on the
setting of
OVERWRITESPOOL
(VID 1002046).
7 Transmit
Spool
The Equipment has
de-spooled some
messages, but not
all have been sent to
the Host.
No Spool
Output
No spooled messages
are being read by the
Host.
8 No Spool
Output
The Host has
requested spooled
messages to be sent
by sending S6F23.
Transmit
Spool
The SIPLACE will
send messages
according to the
setting of
MAXSPOOLTRANSMI
T (VID 1002037) .If
GemMaxSpoolTransm
it is zero, all messages
will be sent, otherwise
only the number of
messages specified in
