NPM- TT2 EJ M1EE-MB-13M-0 2 Over- view Jigs used f or calibr a tion ■ STEP 2 Menu Jig Head camera XY origin Plane calibration XY ■ STEP 1 13-1-3 -1 NOTICE Maintenance 13-1-3 Menu Jig Head / Plane calibration Z Placemen…
NPM-TT2 EJM1EE-MB-13M-02
STEP Item Action
Changes in machine condition and
calibrations to be performed
Time
required
[Min]
Relocation,
change in
floor level
Replacement
of head
*1)
STEP1
Head camera XY
origin
Camera angle
5
XY origin camera
scale
5
Plane calibration XY Plane calibration XY
30
STEP2
Head / Plane
calibration Z
Height measurement
5
Plane calibration Z
20
Width adjustment Width adjustment
10
Placement
position/Conveyor
Height measurement
5
PCB stop position
5
Height sensor
(option)
PCB height
measurement
()()
10
Placement load
(3-nozzle head)
Placement load
measurement F1 and
F2
15
STEP3
Multi-recognition
camera
Head
origin
5
Camera offset
10
Jig station
(per head)
Scan position
30
*2)
Nozzle changer
height
Head camera lighting
Multi-recognition
camera lighting
Head offset
Split recognition
(3-nozzle head)
Camera offset
5
STEP4
Pickup position Pickup position
10
Tray
Pickup height
()
10
Pickup position 1
()
Pickup position 2
()
Transfer Height measurement
()()
10
Accuracy
verification
Placement accuracy, Reflection
30
Placement accuracy, Verification
30
:Perform ():Perform only on a machine with any optional unit
*1)Perform calibration only on the table of which the unit has been installed or replaced.
*2)Time required for the 8-nozzle. 3-nozzles require 20 minutes.
■Calibration item and action

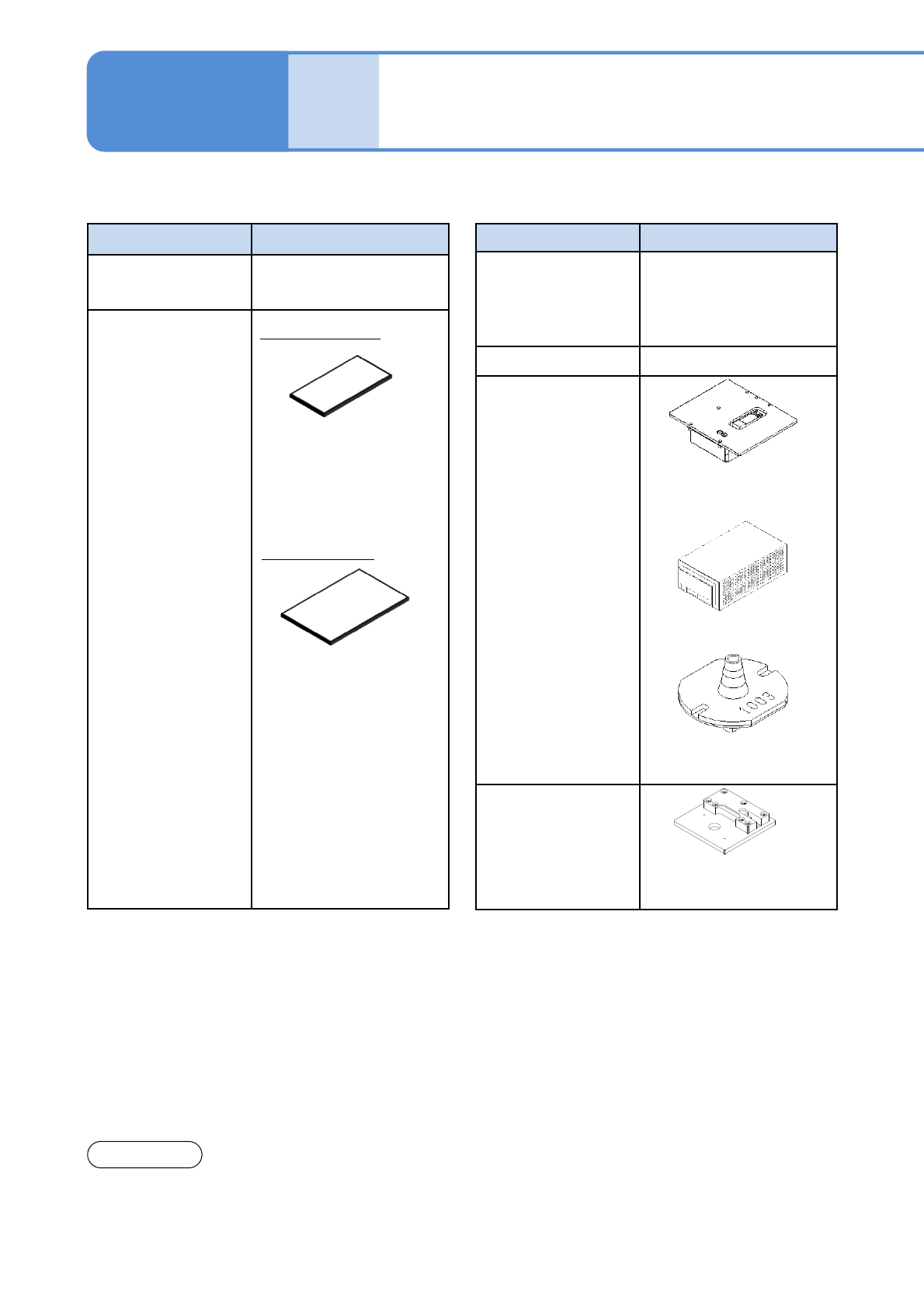

Over-
view
Calibration item and
action
13-1-2
Maintenance
13-1-2
Calibration
NPM-TT2 EJM1EE-MB-13M-02
Over-
view
Jigs used for
calibration
■STEP 2
Menu Jig
Head camera XY
origin
Plane calibration XY
■STEP 1
13-1-3-1
NOTICE
Maintenance
13-1-3
Menu Jig
Head / Plane
calibration Z
Placement position /
Conveyor
8-nozzle head
:230C
3-nozzle head
:1002 nozzle
Width adjustment
Placement load
(3-nozzle head)
Height sensor
(option)
Placement load
measurement jig
(N610084605AB)
Load cell meter
(N610093887AD)
1003 nozzle
(KXFX037UA00)
Height sensor jig
(N610122649AA)
Plane calibration jig
(N210147296AC)
Plane calibration jig
(N210141055AB)
X 2 plates
X 1
plate
PC size conveyor
M size conveyor
Common to NPM-W/W2,
AM100
Common to NPM-
D/D2/D3/TT
230C nozzle and 1002 nozzle are not included with the calibration jig (option).
Please purchase them as necessary.

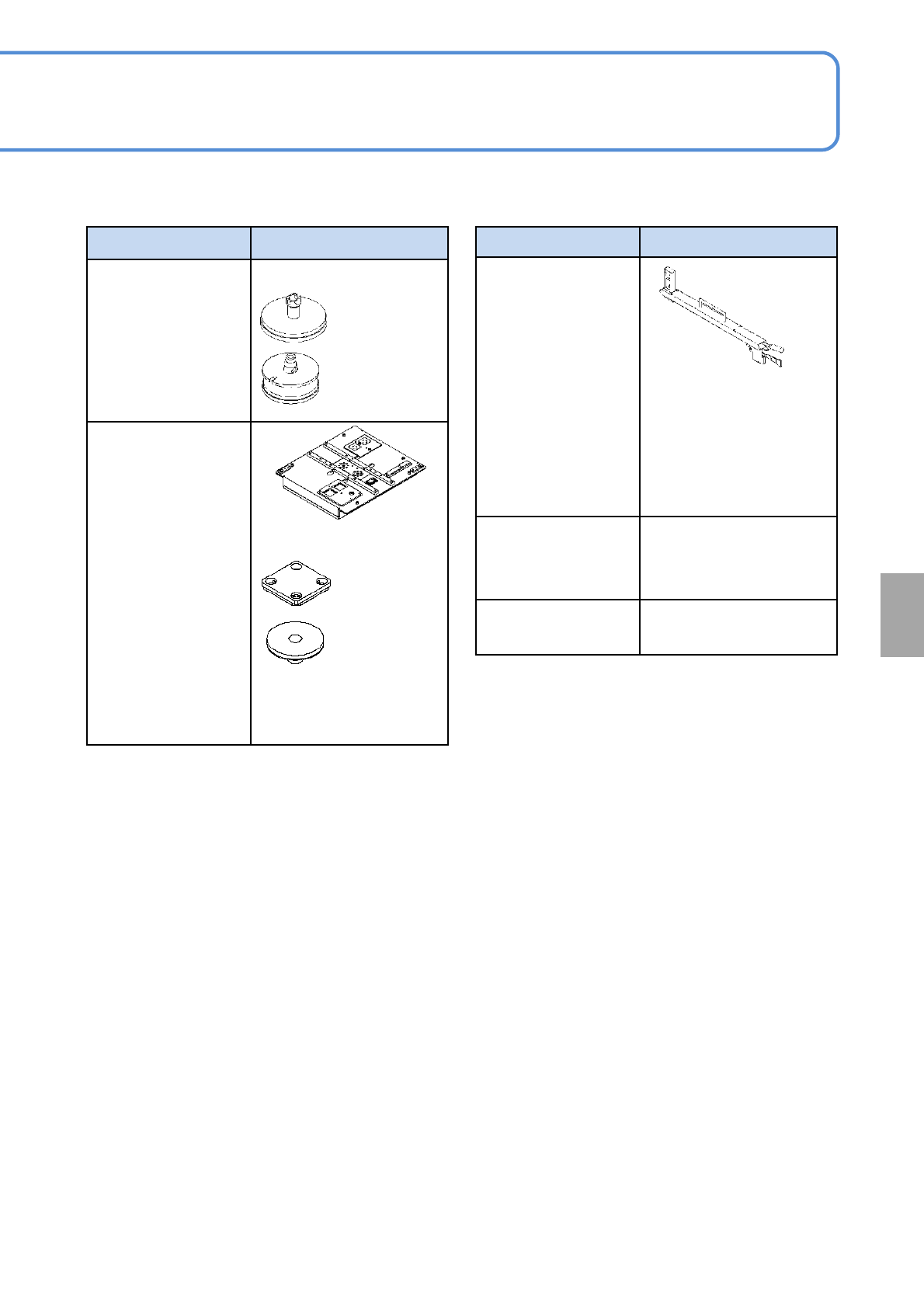

NPM-TT2 EJM1EE-MB-13M-02
Calibration
13-1-3-2
■STEP 4■STEP 3
Menu Jig
Pickup position
8-nozzle head
:230C nozzle
3-nozzle head
:1002 nozzle
Tray
8-nozzle head
:230C nozzle
3-nozzle head
:1002 nozzle
Transfer
3-nozzle head
:1003 nozzle
Menu Jig
Multi-recognition
camera
Jig station
8-nozzle head
:184-nozzle
3-nozzle head
:1003-nozzle
Pickup position height
teaching jig
(N610003318AA)
Jig station
(N610087861AA)
Light luminosity jig
(N610114318AA)
Two jig
(N610102559AA)
For 8-Nozzle head
(N610071657AA)
For 3-nozzle head
(N610003301AA)
multi-recognition camera jig
