3-2-2

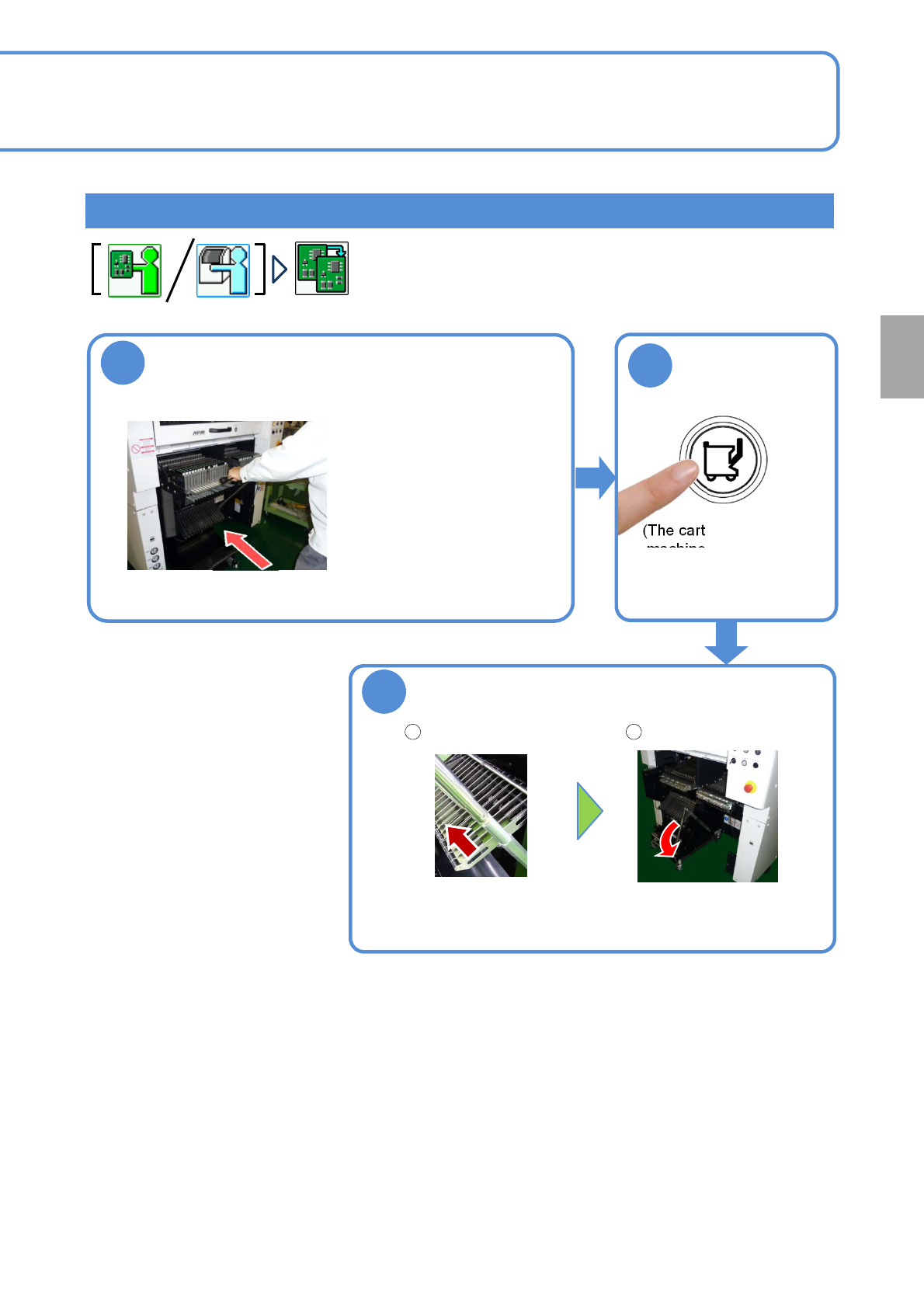

How to attach
Periodic
inspection
Pull the pipe up
Press for over
three seconds
(The cart is secured to the
machine as the buzzer
sounds, and the lamp
changes from flashing to
illumination)
Attach the feeder cart
(The lamp changing from
illumination to flashing
allows you to attach the cart
to the main body)
Put the handle back
Put the handle back
*Be careful not to pinch the
feeder power cable in any
place as you set the cart.
*Be careful not to pinch the feeder power cable in any
place as you put the handle back.
1 2
●One location
1
2
3
NPM-TT2 EJM1EE-MB-03M-02
3-3-1

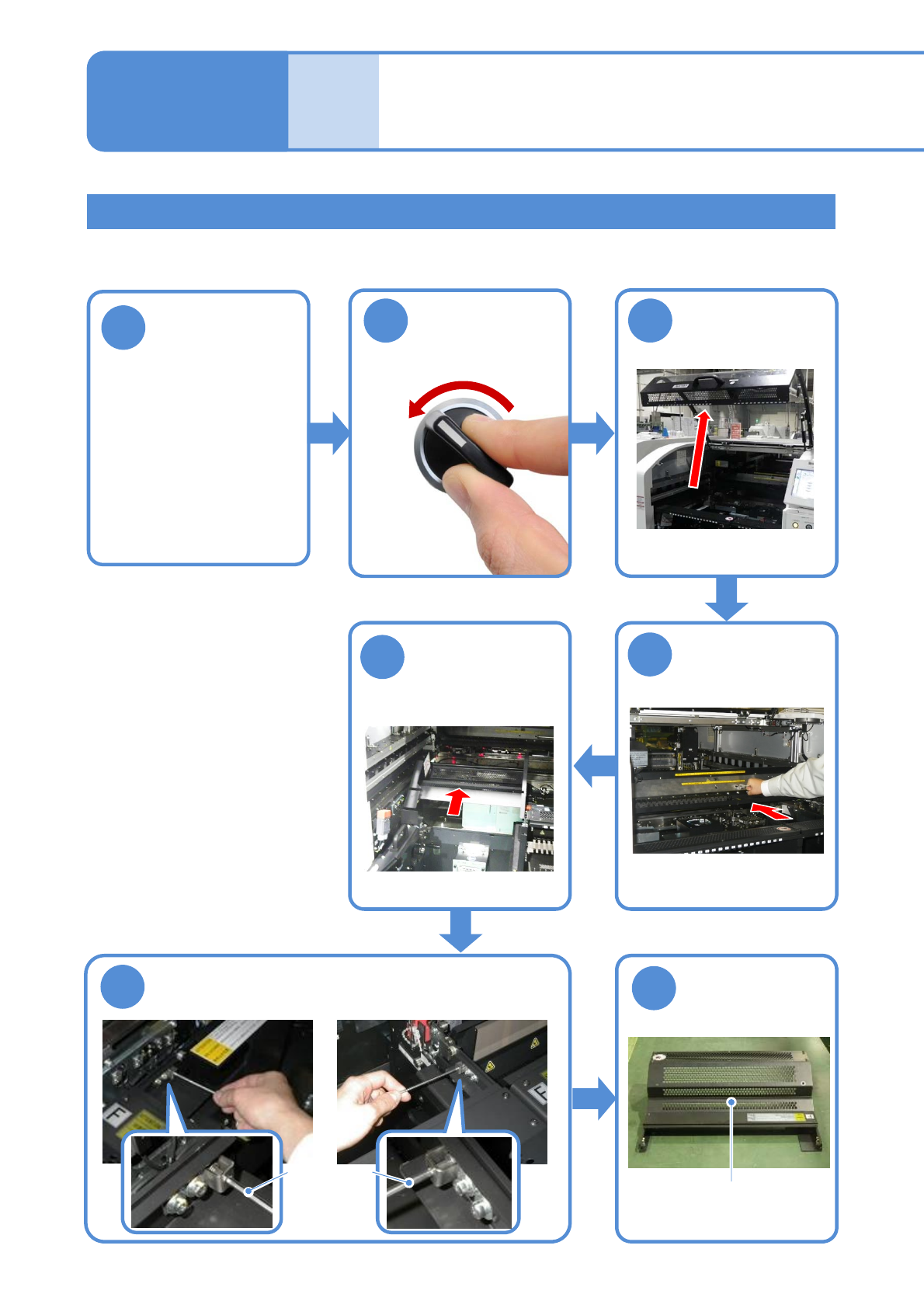

Detaching the feeder table cover
Allen
wrench
(3 mm)
Loosen the feeder table cover screws
Remove the
feeder table
cover
3
4
Feeder cover
Maintenance
3-3
Detaching and attaching
the feeder table cover 1
OFF
SERVO
2
Push the X-axis
inward
(One on either side)
1
Detach the tray
feeder or the
feeder cart
●For a tray feeder
(→ P.14-8)
●For a feeder cart
(→ P.3-2)
5
Foldthefeeder
tablecovertothe
back
6
7
NPM-TT2 EJM1EE-MB-03M-02
3-3-2
Periodic
inspection
Attaching the feeder table cover 1
Place the feeder table cover
To
6
OFF
SERVO
1
3
2
Push the X-axis
inward
5
Allen
wrench
(3 mm)
Feeder table cover
Left side
Right side
Secure the feeder table cover
(One on either side)
4
Guide
