4 Periodic inspection Every-24-hours

NPM-TT2 EJM1EE-MB-03M-02

3-3-3

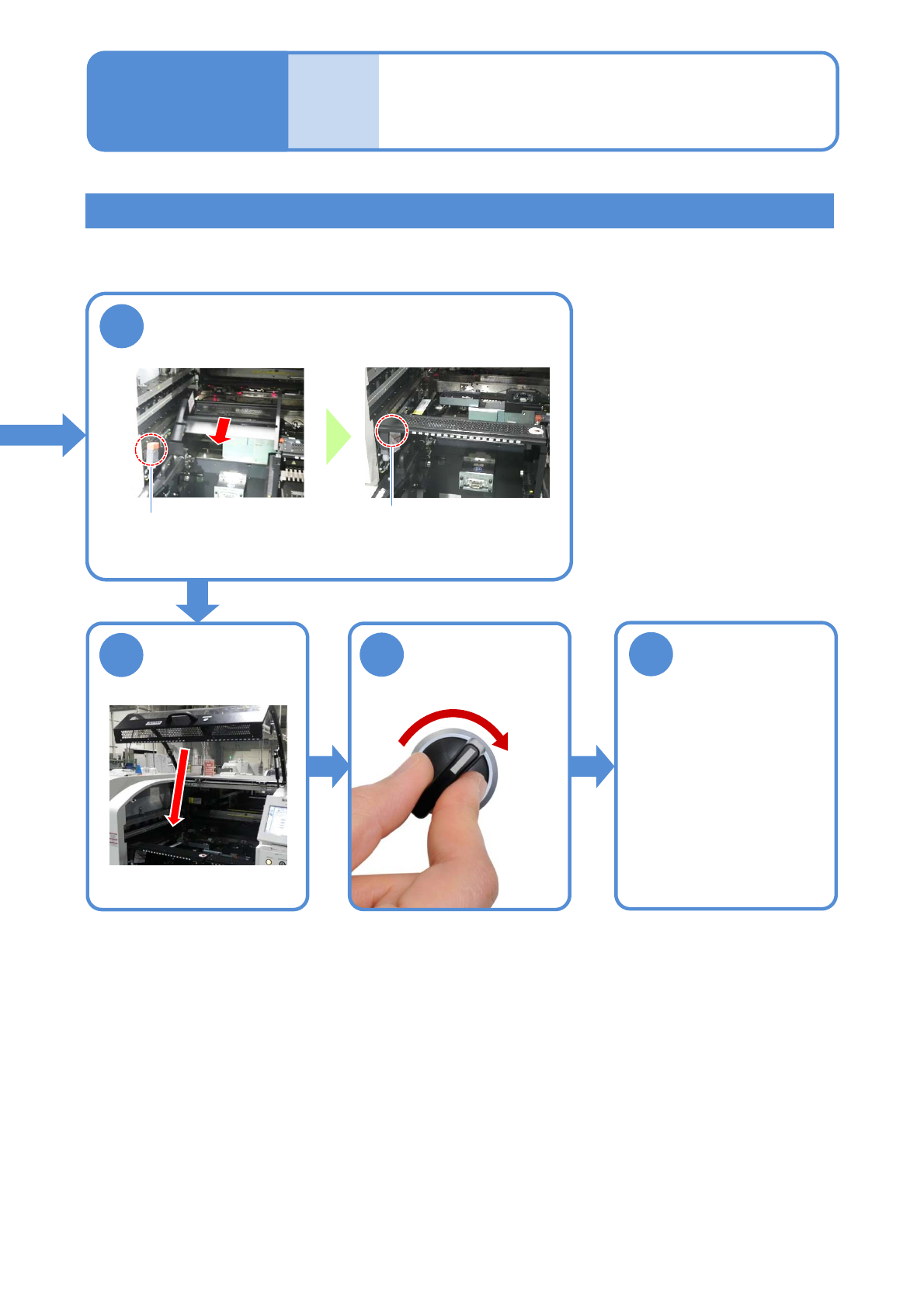

Attaching the feeder table cover 2

9

Maintenance

3-3

Detaching and attaching

the feeder table cover 2

Safety switch

Make sure the key of feeder

table cover is inserted into the

safety switch

Check fitting of the safety switch of the

feeder table cover

SERVO

ON

8

7

6

Attach the tray

feeder or the

feeder cart

●For a tray feeder

(→ P.14-8)

●For a feeder cart

(→ P.3-2)

4 Periodic inspection

Every-24-hours

NPM-TT2 EJM1EE-MB-04M-00

Before

opera-

tion

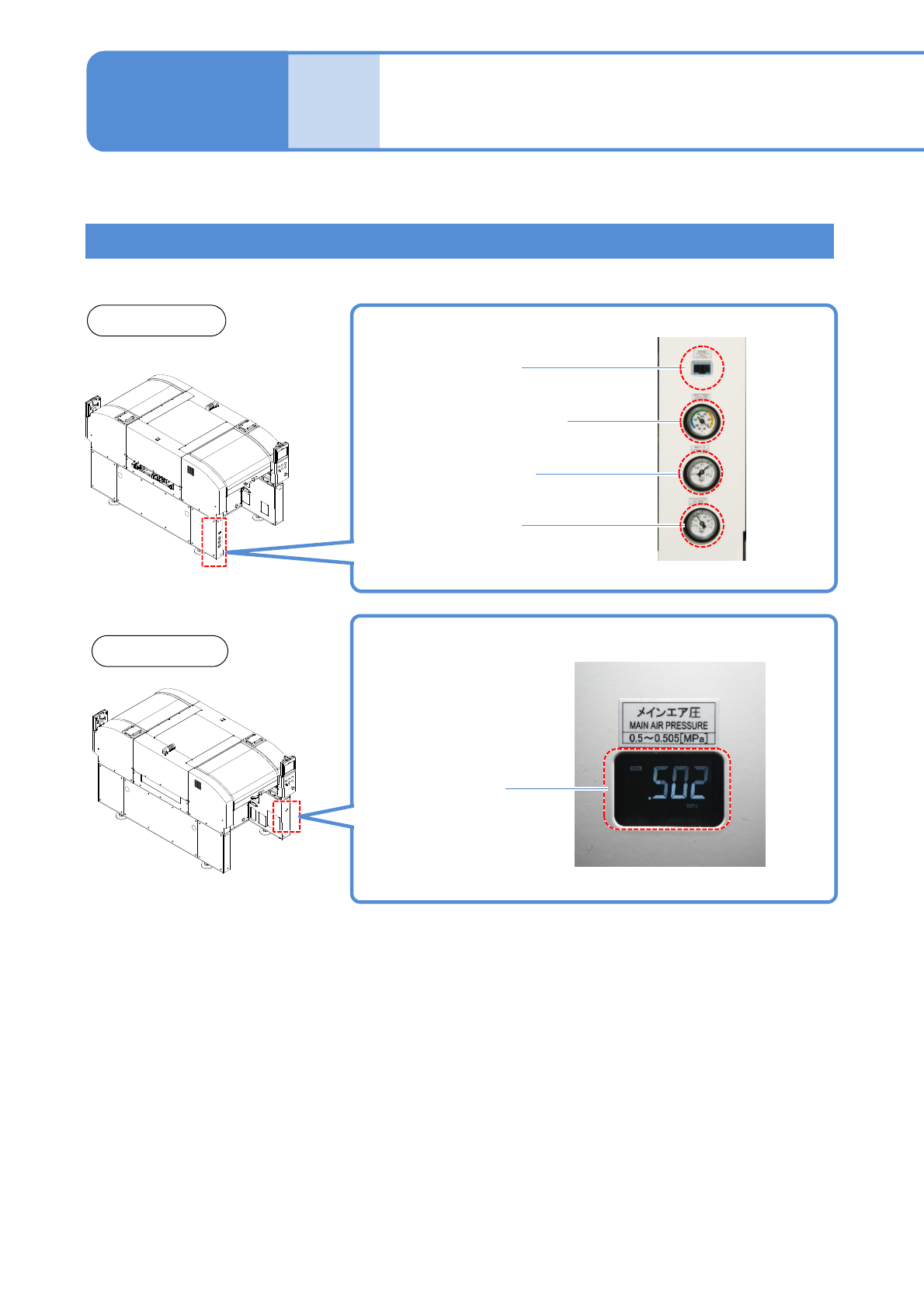

Inspecting the

pressure gauge 1

Tool used: None Time required: 3 minutes (Machine power ON)

4-1-1-1

Maintenance

4-1-1

Check the air pressure

Front side

Rear side

Main air pressure

(0.500 to 0.505 MPa)

Describes inspection of the supply pressure.

Vacuumbreakpressure

(8 to12 kPa)

Vacuum pump supply

pressure(-100 to -87 kPa)

Clean blow pressure

(0.13 to 0.14 MPa)

Option air pressure

(0.4 MPa)
