NPM-TT2 EJM1EE-MB-04M-00
Maintenance
4-2-1
Cleaning the
components-ejection box
4
After
opera-
tion
Tool used: None Time required: 3 minutes (Total of the front and rear sides)
●Clean the components-ejection box.
●Clean it after operation.
●Not only after operation but also during production, clean it before it is full.
Remove components in the components-
ejection box
Put it back in its
original position
5
OFF
SERVO
1
2
3
SERVO
ON
6
7
Place the box by adjusting
the groove.
4-2-1
Components-ejection box
Lift it up from the bottom of the
components-ejection box to
remove.
Describes cleaning of the components-ejection box.
Components-ejection box
●Ensure that it is properly
placed.
(Otherwise, the error
message appears on the
screen and you cannot
activate the machine.)
Screw
Push the X-axis
inward
NPM-TT2 EJM1EE-MB-04M-00
Tool used: None Time required: 1 minutes (per location)
●Clean the used-tapes box of the 13-slot feeder or the feeder cart.
●Not only after operation but also during production, clean them before they are full.
Draw out the used-tape box
After
opera-
tion
Maintenance
4-2-2
Dispose of the
used tapes
Put the used-tape box back in its original
position

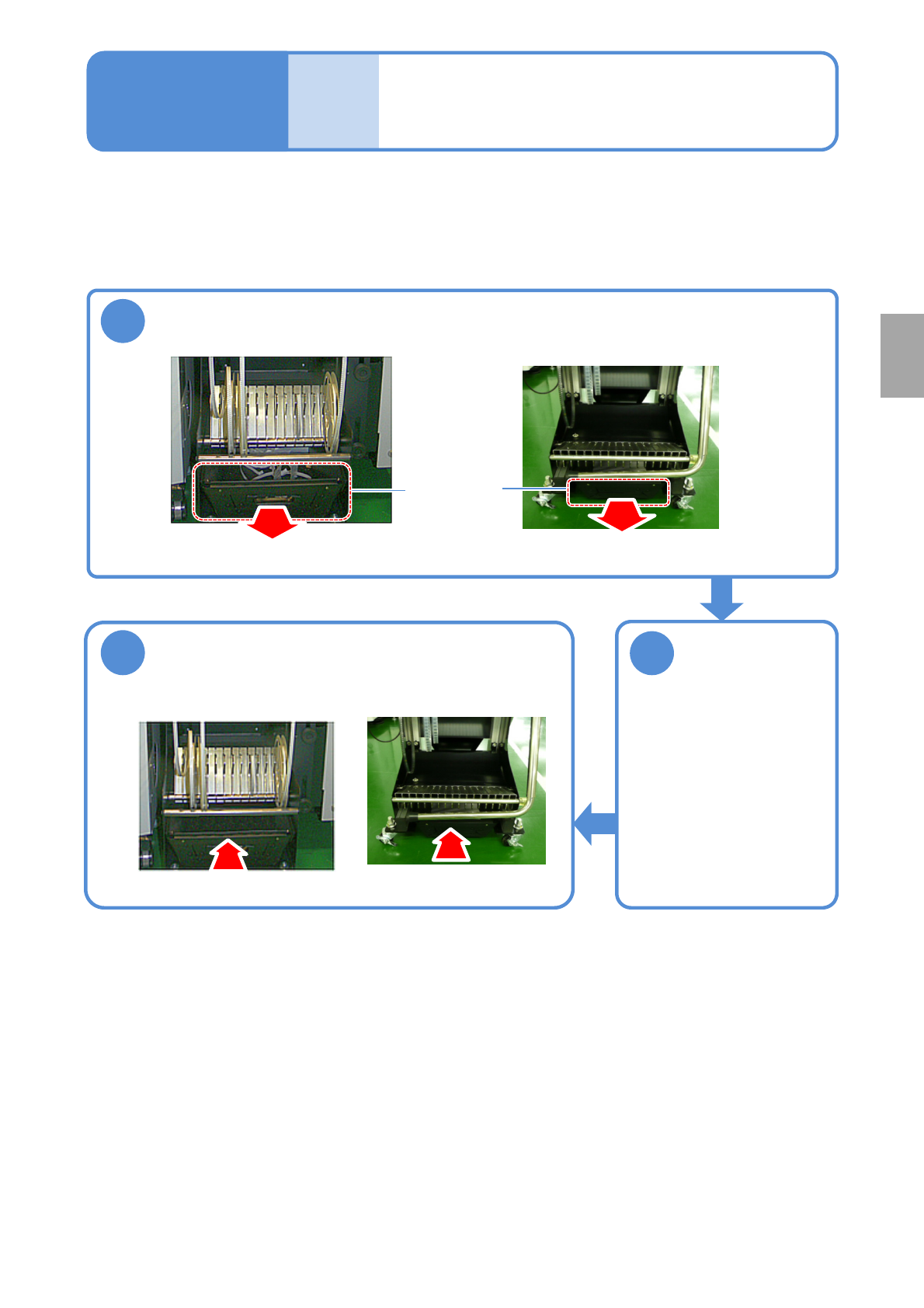

Cleaning the used-tape
box
(13-slot feeder, Feeder cart
(option))
■13-slot feeder
4-2-2
Describes cleaning of the used-tape box.
2
1
3
■Feeder cart
Used-tape
box
■13-slot feeder
●If you shake the box back and forth several times, the tape layer becomes flat so that you can
easily draw it out.
■Feeder cart
Every
24
hours
PeriodicPeriodic
inspection
NPM-TT2 EJM1EE-MB-04M-00
After
opera-
tion
Maintenance
4-2-3

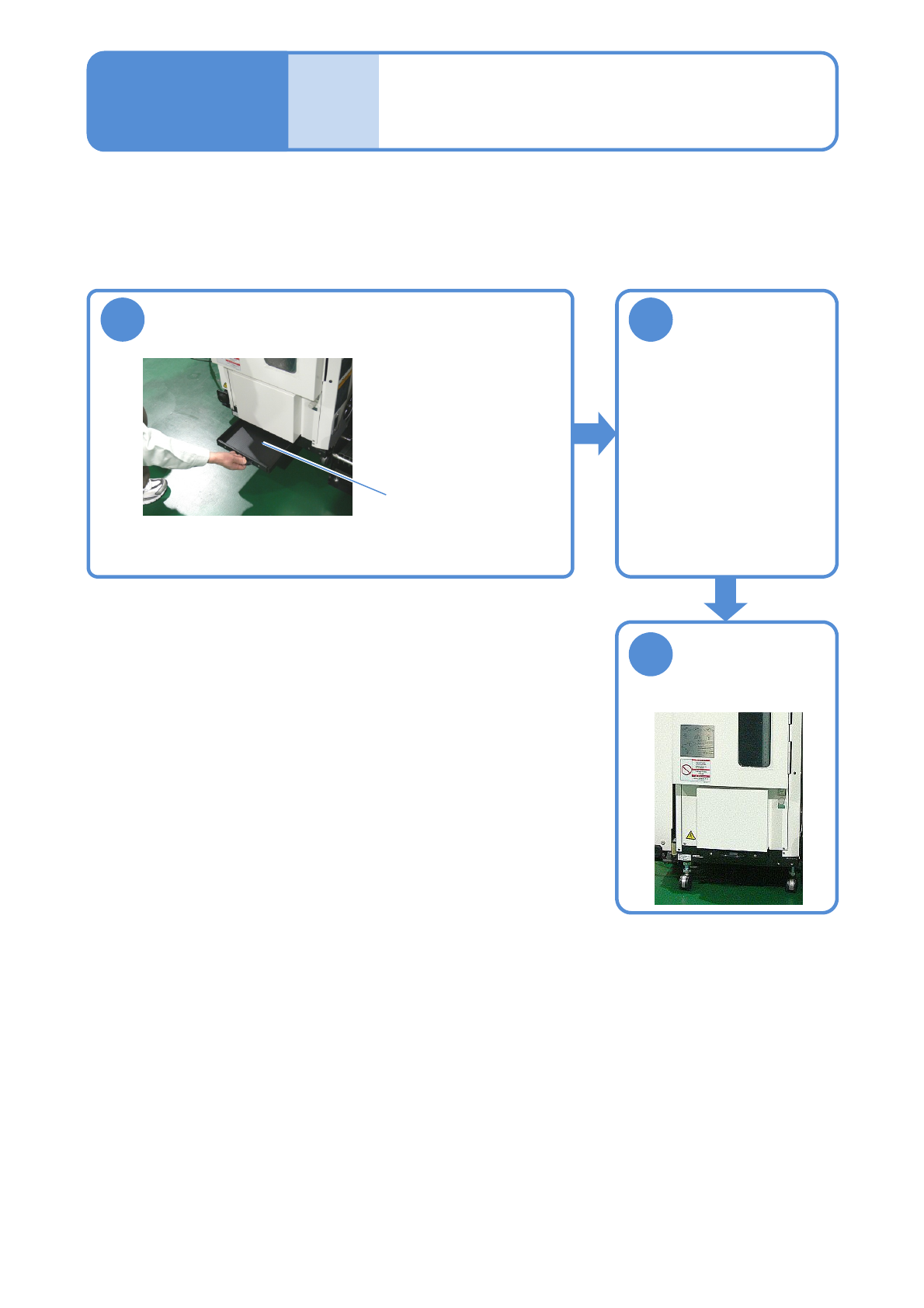

Cleaning the refuse box
(tray feeder (option))
Tool used: None Time required: 1 minute
●Clean the refuse boxes.
●Not only after operation but also during production, clean them before they are full.
4-2-3
Describes cleaning of the refuse box.
Draw out the refuse box
Empty it out
Put the refuse
box back in its
original position
2
1
3
Refuse box
●If you shake the box back and forth for several times, the
tape layer becomes flat and it may easy to draw out.
